Triton FT7000XP User Manual User Manual
Page 41

31
G
ENERAL
M
AINTENANCE
3.
Push the F
EED
button up (located on Printer controller module) to advance the paper remaining in the
feed path.
4.
Remove the existing paper roll and/or empty spindle (as appropriate) from the paper support bracket.
Feed
Reverse
Reset
Paper Insertion Guide
5.
Unwind about 18 inches from the end of the new
roll of paper. Using scissors, cut off the excess.
Make sure all the paper that has glue on it is
removed from the end of the roll.
6.
Install the new paper roll on the spindle. Place
the paper roll (w/spindle) on the paper support
bracket by sliding ends of spindle into the
bracket.
NOTE: THE PAPER FEEDS FROM THE
BOTTOM OF THE ROLL!

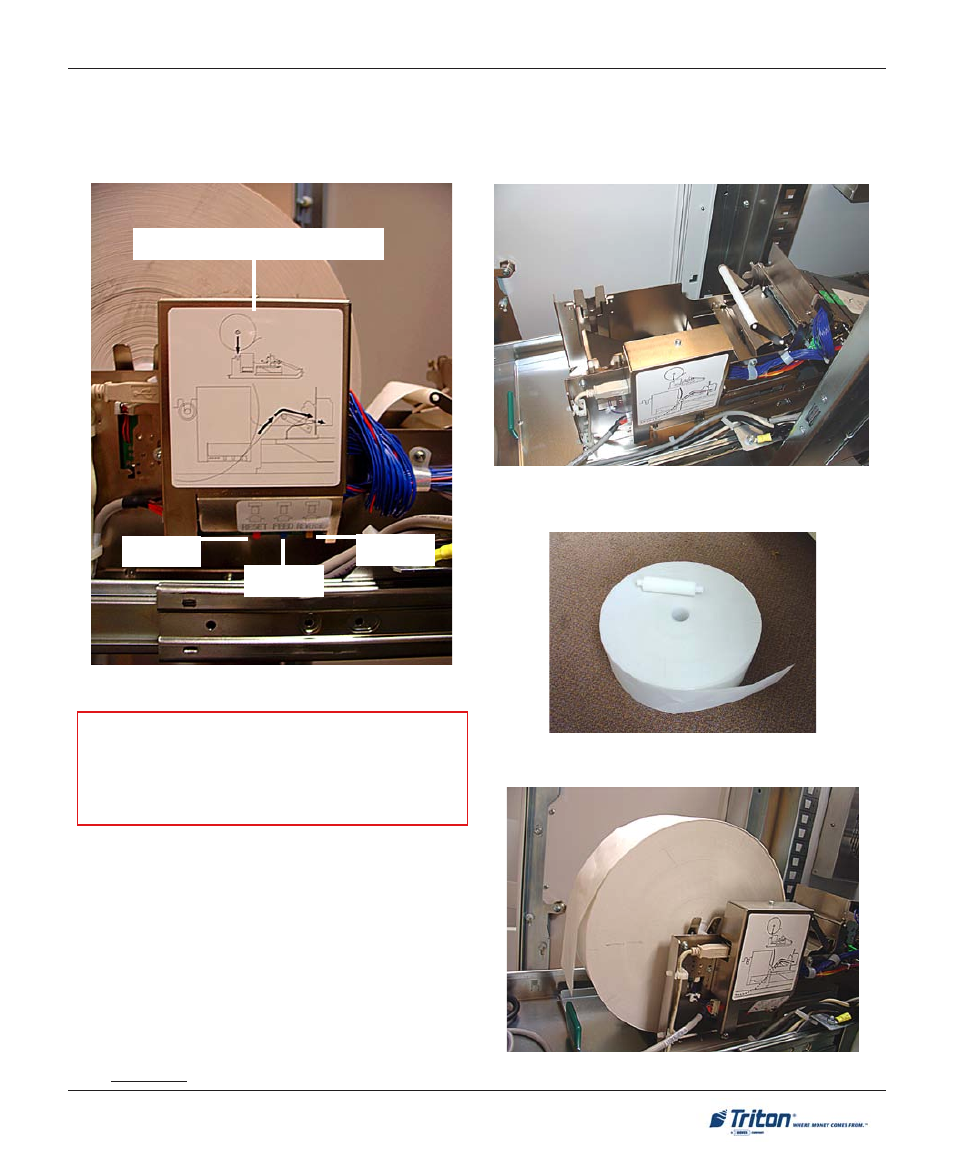

Figure 4-3. Printer controller module.
Figure 4-4. Paper/spindle removed.
Figure 4-6. Printer controller module.
Figure 4-5. Paper roll/spindle.
** CAUTION **
Do not pull the paper backward through the
printer. This may leave paper fragments that
can cause paper jams.
