3. Direct the paper (item 6) from the paper roll (item 4) through the Paper Out Sensor and down into the
Guide slot (item 7) until the paper stops against the Feed Mechanism (item 8). Remove the Journal Take-
up Carriage (item 9).
4. The paper is now ready to be advanced automatically through the rest of the printer assembly. First,
turn the power switch ON. After a few seconds, press the Feed Switch until the Feed Mechanism (item
8) passes approximately 5-7 inches of paper beyond the Bail (item 3). You may need to apply hand
pressure on the paper, directed towards the Feed Mechanism (item 8), in order to activate the Feed
Mechanism (item 8).
5. Lift the Bail (item 3) and pull the journal paper (item 6) out of the Bail Slot (item 10).
6. Guide the journal paper (item 11) through the Journal Slot (item 12). Attach the leading edge to the clip
on the Journal Take-up carriage (item 9).
Steps 7 and 8 redirect the journal paper to the Journal Take-up carriage.
7. Advance the Journal Take-up Carriage (item 9) by hand until the journal paper (item 11) is taut.
8. Attach the Journal Take-up Carriage (item 9) to its mounting bracket.
9. The journal paper is now loaded.

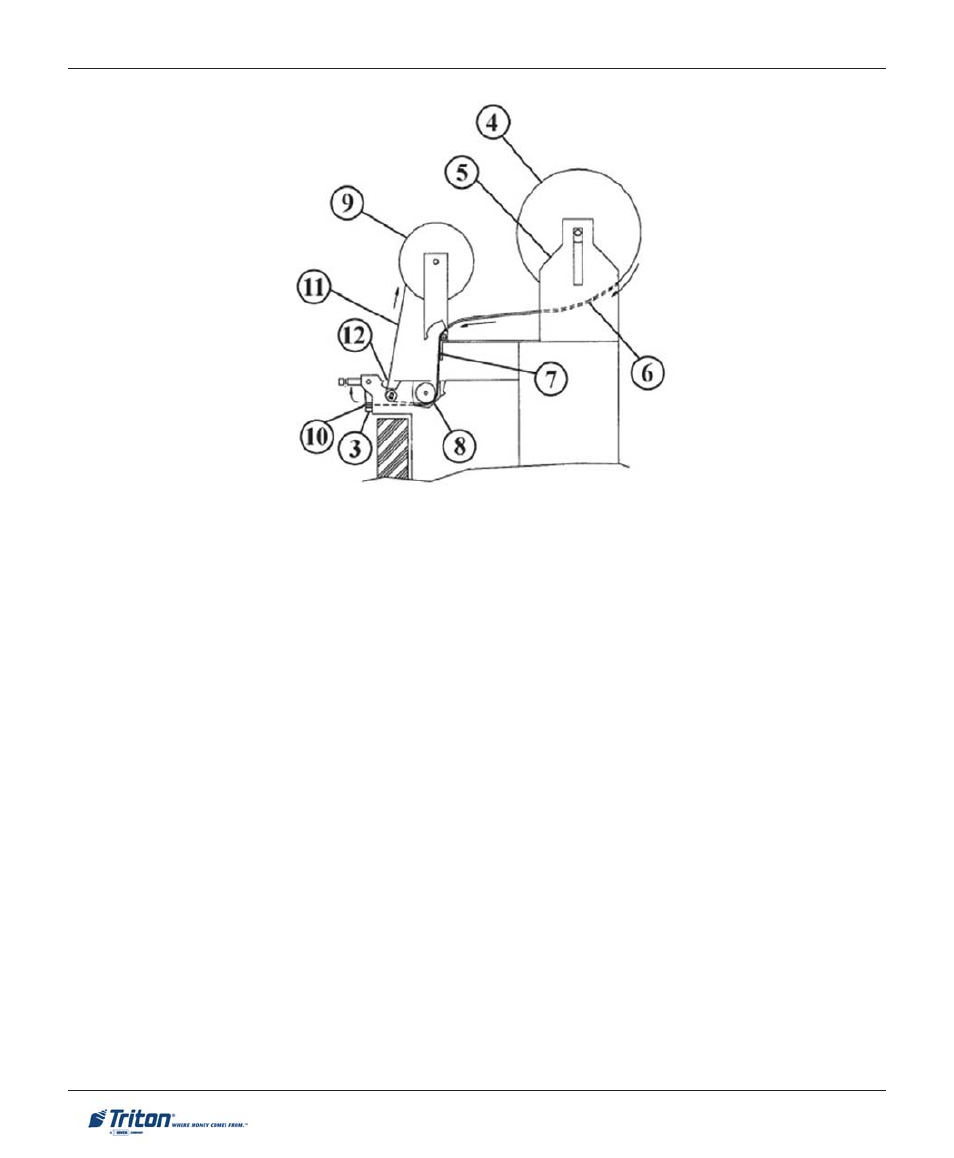

Figure 4-14. Loading journal paper.
