D-5
T RITON S YSTEMS , I NC .
M
ULTI
-C
ASSETTE
C
ASH
D
ISPENSER
O
PERATION
M
ANUAL
A
PPENDIX
D - C
ASH
D
ISPENSER
I
NSTALLATION
I
NSTRUCTIONS
M
ODELS
9640/9641/9660/9661
6.) Pick up the dispensing mechanism by the newly installed handles and load it into the unit
by carefully guiding the dispenser slides into the unit slides. See Figure 2-3.
7.) Refer to Figure 4. Connect the data cable (9600-0057) to the connector on the front left
side of the dispenser mechanism. Be sure to use the forward most connector as shown.
The plug is keyed to ensure proper installation.
8.) Connect the power cable to the front of the dispenser. See Figure 5. Ensure the cable
does not protrude into the bill path.
9.) Turn the dispense power switch located just to the left of the power connector to ON
(“I”).

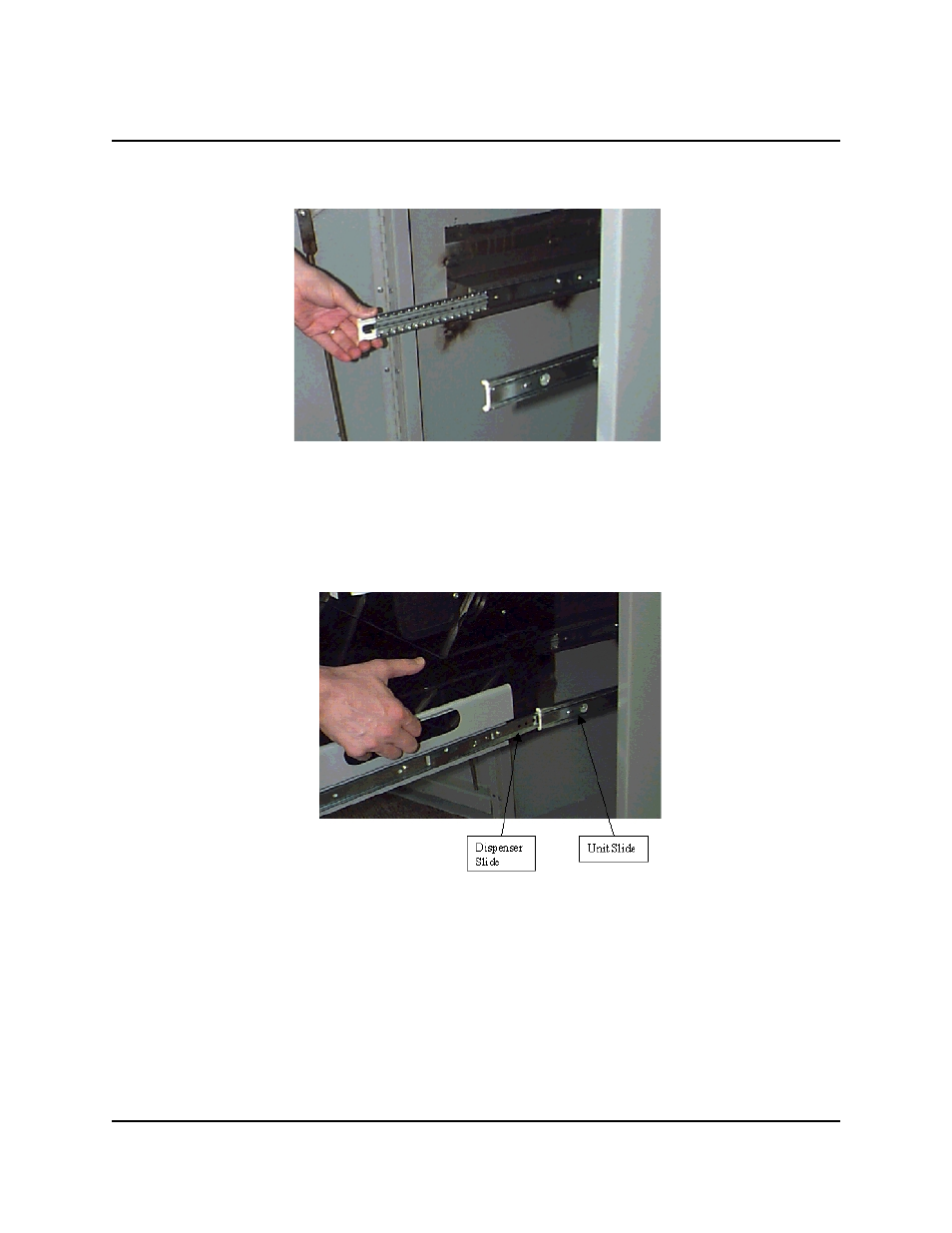

Figure 2.
Figure 3.
