4. Use the silver key to unlock both the control panel and the fascia door (which conceals the locking
mechanism) on the front of the cabinet. Open the fascia door.
5. Lift the handle under the bill chute to open the front enclosure door. If the door is locked, see the
sidebar at bottom of page for help in unlocking the electronic lock.
Note: To change the combinations, see Appendix C in the User Manual (included on CD).
6. Remove the packing material from inside the vault enclosure. Inspect the dispenser and report any
damage to Triton.
7. The accessory box is shipped inside the cabinet enclosure. Open and inspect the contents. Check the
contents against the enclosed packing list and report any missing parts to Triton.
**WARNING**
DO NOT APPLY POWER TO THIS TERMINAL
UNTIL THE INSTALLATION IS COMPLETE!!

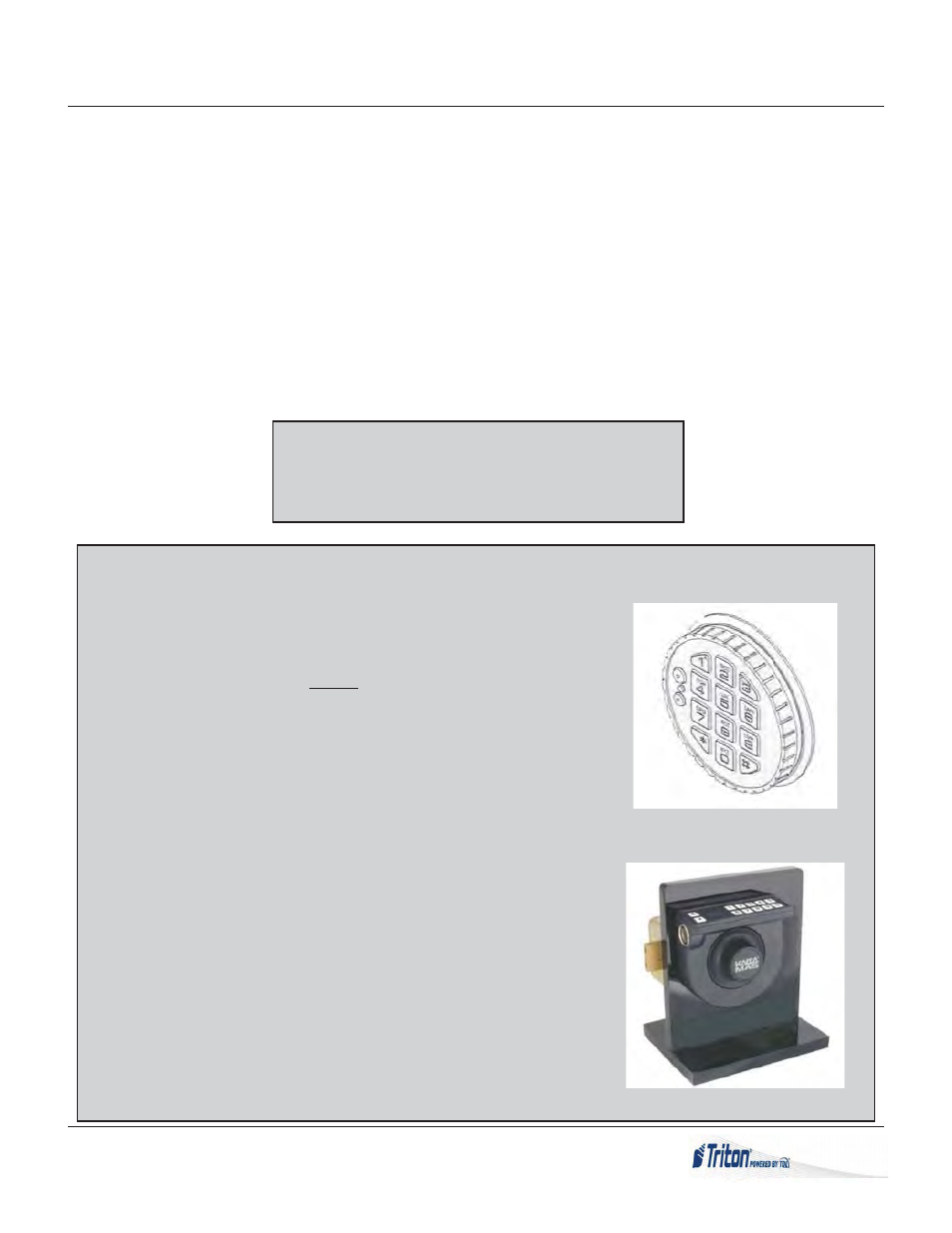

L
A
G
ARD
L
OCK
The combination of the lock is preset to 1-2-3-4-5-6. To unlock,
enter the preset combination and check for proper operation. After
each keypress, the lock will ‘beep’. After the final digit has been
entered, the lock will beep twice, and the open period begins. When
a valid combination has been entered, the operator will have ap-
proximately 3 seconds to open the lock. To open the lock, turn the
outer ring of the dial clockwise. After the lock is opened, the vault
door may be opened.
UNLOCKING COMBINATION LOCK
K
ABA
M
AS
1. Turn the dial left (CCW) until the letters “EC” (Enter Combina-
tion) appear on the LCD.
2. Enter the factory combination of 50-25-50 by sequentially press-
ing those six (6) buttons. The LCD will display these numbers
as they are entered.
3. When the combination has been correctly entered, the LCD will
read “OPr”, meaning “OPen right”. Turn the dial right (CW)
until it stops. The locks bolt is now retracted and the lock is
open.
4. After the lock is opened, the cabinet door may be opened.
