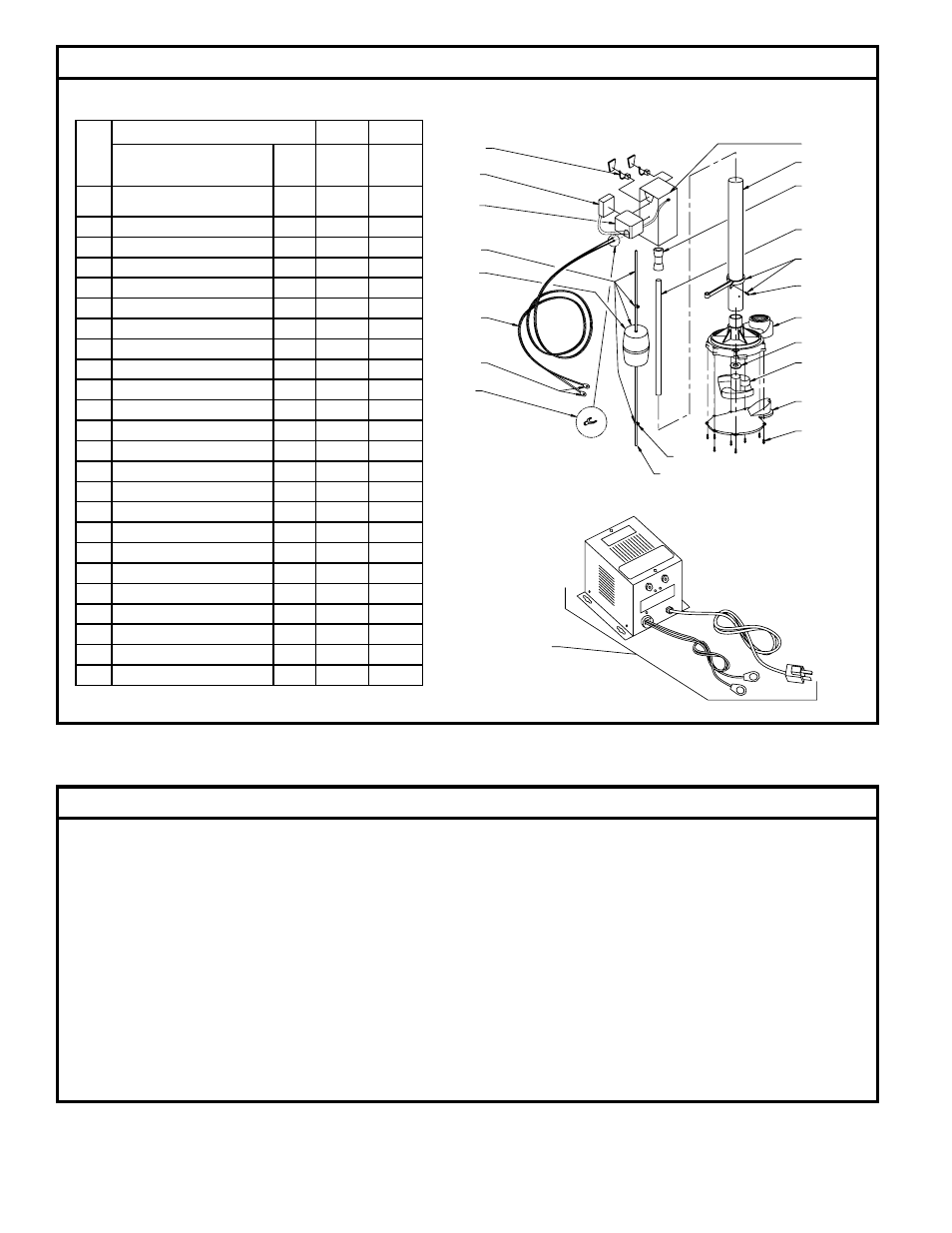

Illustrated Parts Breakdown
Whether you have an Aquanot® Battery Backup Sump Pump System, or a competitive brand, all batteries give off gaseous by-
products when charging. Some of these by-products can produce a rotten egg odor. Also, some of these by-products can cause
a CO detector to falsely activate. In order to help prevent false activation, we recommend moving the battery as far apart from the
CO detector as possible or, if necessary, vent the battery to the exterior. We provide the previous statements only as guidelines
to help prevent false activation of the CO detector. In no way are they meant to supersede the instructions that accompany the
detector nor do they supersede advice from the CO detector manufacturer.
If the audible alarm associated with your CO detector is activated, we recommend the following actions:
1) Take immediate action for personal safety as recommended in the CO detector literature.
2) Contact the appropriate agency to determine if the CO is being produced by your furnace, water heater, or any other device
which uses natural gas.
3) If you are certain that no CO is being produced, then a charging battery may be producing gaseous by-products which are
causing the CO detector to activate. Contact the manufacturer of the CO detector, and ask for recommendations as to what
can be done to prevent the alarm activation.
Carbon Monoxide Detectors
SK1786FW
REF.
NO.
MODEL: S1585-A S1585-B
DESCRIPTION QTY
03/02
to
12/04
1/05
to
Current
1 Motor Brushes 2 013878 *Consult
Factory
2 Pump Alarm 1 012485 012485
3 Pump Switch 1 017205 017205
4 Float Kit & Cable 1 012709 012709
5 Lead Wires 1 012401 012401
6 Terminal Spade 1 004442 004442
7 Terminal Ring 1 011939 011939
8 Pump Motor 1 013873 013873
9 Column 1 011942 011942
10 Adapter, Drive 1 011940 011940
11 Shaft 1 011944 011944
12 Head w/Brass Bearing 1 012137 012137
13 Washer, Thrust 1 002140 002140
14 Impeller 1 011945 011945
15 Base Plate 1 012138 012138
16 Screws 8 012118 012118
17 Guide, Float Rod 1 003903 003903
18 Battery Charger 1 015409 015409
19 N/A N/A
20 Pump S1585 1 015407 015407
21 Float 1 012707 012707
22 Stop, Float 2 054085 054085
23 Rod, Float 1 012706 012706
24 Screws 1 003925 003925
*Advise motor Leeson or CIM.
20-MODEL S1585 COMPLETE PUMP
TERMINAL
DETAIL
4
3
1
7
5
2
6
12
15
14
13
10
11
9
8
17
16
23
22
21
24
18
