SANDPIPER S05 Non-Metallic User Manual
Page 30
520-211-000
2/01
Model S05 Non-Metallic Design Level 1 Page 28
PULSE OUTPUT KIT OPTION
This pump can be fitted with a Pulse Output Kit. This converts the mechanical
strokes of the pump to an electrical signal which interfaces with the RuppTech™
Stroke Counter/ Batch Controller or user control devices such as a PLC.
The Pulse Output Kits mount directly onto the Muffler Cap on the Air Distribution
Valve Assembly or onto the Air Distribution Valve Assembly when the threaded
exhaust port or an auxiliary muffler is being used.
See the individual kits listed on the Pump Repair Parts List for further information.

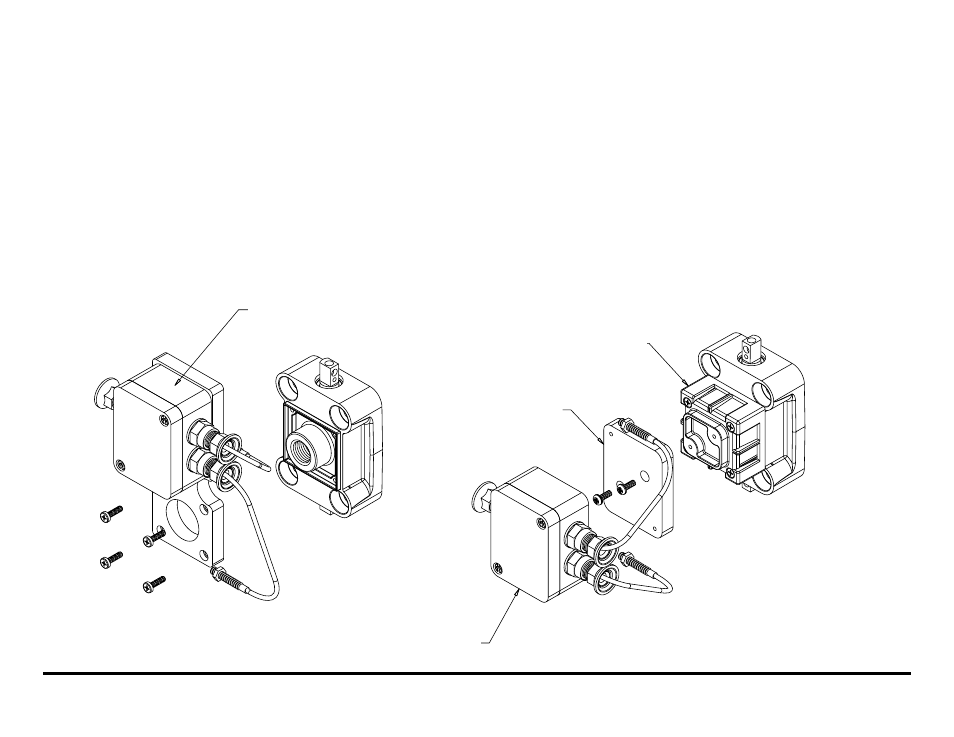

Pulse Output Kit Drawing
Exhaust Port or Auxiliary
Muffler Setup
Integral Muffler Setup
Pulse Output Kit
Pulse Output Kit
Adapter Plate
Muffler Cap
