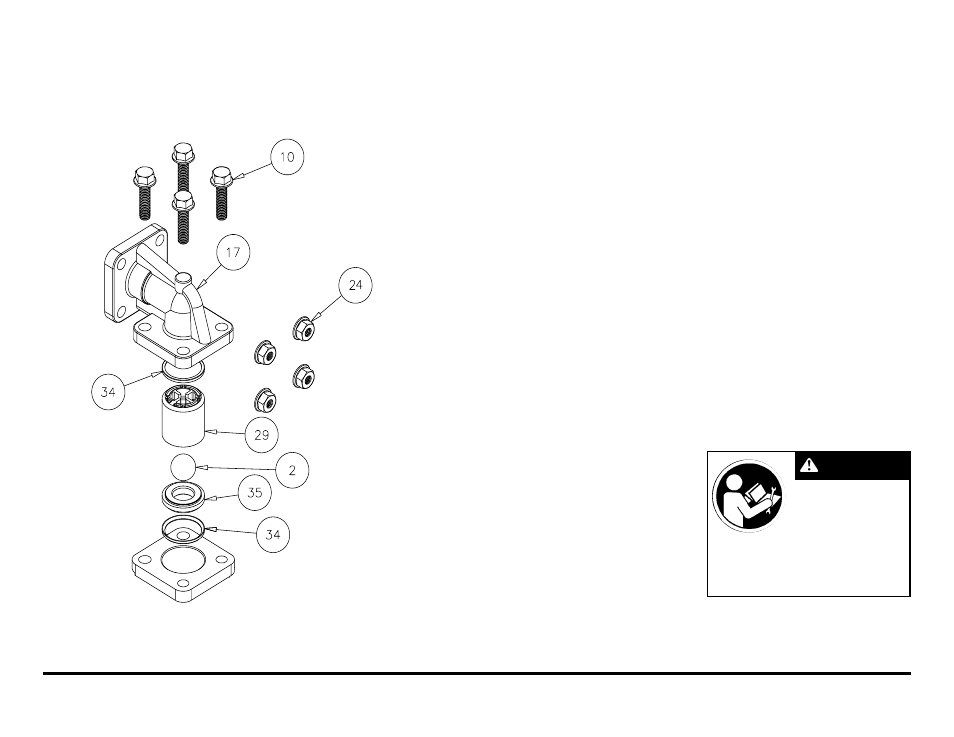

Modular Check Ball Valve Drawing MODULAR CHECK BALL VALVE
SERVICING
Before servicing the check valves, first
shut off the suction line and then the
discharge line to the pump. Next, shut
off the compressed air supply, bleed air
pressure from the pump, and disconnect
the air supply line from the pump. Drain
any remaining fluid from the pump. The
pump can now be removed for service.
To access the modular check valve,
remove the elbows (items 17 from pump
composite repair parts drawing). Use a
½" wrench or socket to remove the
fasteners. Once the elbows are removed,
the modular check valves can be seen
in the cavities of the outer chamber
(items 14).
Next remove the check valve seal
(item 34). Inspect the seal for cuts or
pinched areas. Replace seal as needed.
Disassemble the component parts of
each modular check valve. Inspect the
check valve retainer (item 29) for cuts,
abrasive wear, or embedded materials.
Replace as needed.
Inspect the check balls (items 2) for
wear, abrasion, or cuts on the spherical
surface. The check valve seats (items
35) should be inspected for cuts, abrasive
wear, or embedded material on the
surfaces of both the external and internal
chamfers. The spherical surface of the
check balls must seat flush to the
surface of the inner chamfer on the check
valve seats for the pump to operate to
peak efficiency. Replace any worn or
damaged parts as necessary.
Remove the check valve seal (item
34). Inspect the seal for cuts or pinched
areas. Replace seal as needed.
RE-ASSEMBLE THE MODULAR
CHECK VALVE
Place a check valve seal (item 34)
into the cavity of the outer chamber (item
14). Make sure the chamfer side of the
seal faces out. Insert the modular check
valve into the outer chamber with the
retainer facing up. Install a check valve
seal (item 34). Make sure the chamfer
side of the seals face the chamfer on
the check valve seat or retainer.
The pump can now be reassembled,
reconnected and returned to operation.
Read these instructions
completely, before in-
stallation and start-up. It
is the responsibility of
the purchaser to retain
this manual for reference. Failure to
comply with the recommendations stated
in this manual will damage the pump, and
void factory warranty.
IMPORTANT
