520-211-000 2/01 Model S05 Non-Metallic Design Level 1 Page 20
INTERMEDIATE REPAIR PARTS LIST
ITEM PART NUMBER DESCRIPTION QTY
4 114-023-551 Bracket, Intermediate 1
7 135-036-506 Bushing, Plunger 2
25 560-001-360 O-Ring 2
30 675-042-115 Ring, Retaining* 2
*NOTE: It is recommended that when plunger components are
serviced, new retaining rings be installed.
4

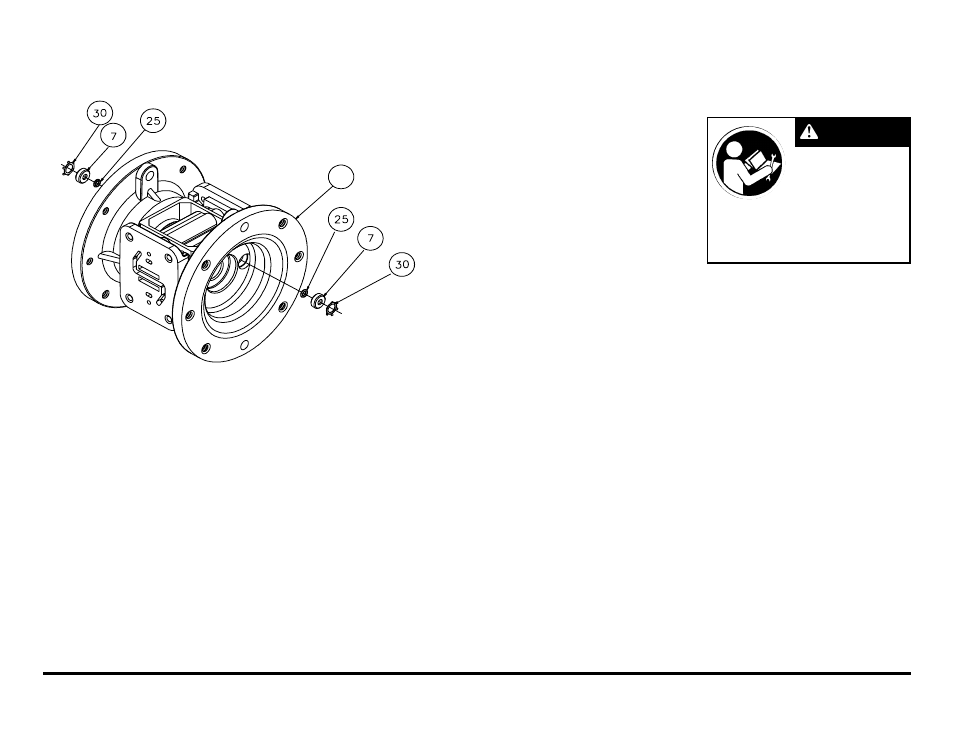

Intermediate Assembly Drawing
PLUNGER BUSHING, O-RING, AND
RETAINING RING SERVICING
To service the plunger bushing
components first remove the two
retaining rings (items 30) using a
small flat screwdriver. *Note: It is
recommended that new retaining rings
be installed.
Next remove the two plunger
bushings (items 7). Inspect the
bushings for wear or scratches. Replace
the bushings as necessary.
Inspect the two o-rings (25) for cuts
and/or wear.
Intermediate Assembly Servicing
Read these instructions
completely, before in-
stallation and start-up. It
is the responsibility of
the purchaser to retain
this manual for reference. Failure to
comply with the recommendations stated
in this manual will damage the pump, and
void factory warranty.
IMPORTANT
