SANDPIPER S05 Non-Metallic - Manual (Page 12)

520-211-000 1/03 Rev. B Model S05 Non-Metallic Design Level 2 Page
21
1
13
1
36
9
4
9
32
20
31
28
25 7
30
33
10
10
3
19
8
12
22 9
10
17
24
34
29
2
35
34
14
11
24
24
26
15
11
34
29
2
35
10
10
17
5
24
10
9
33
22
34
33
18
27
6
25
14
13

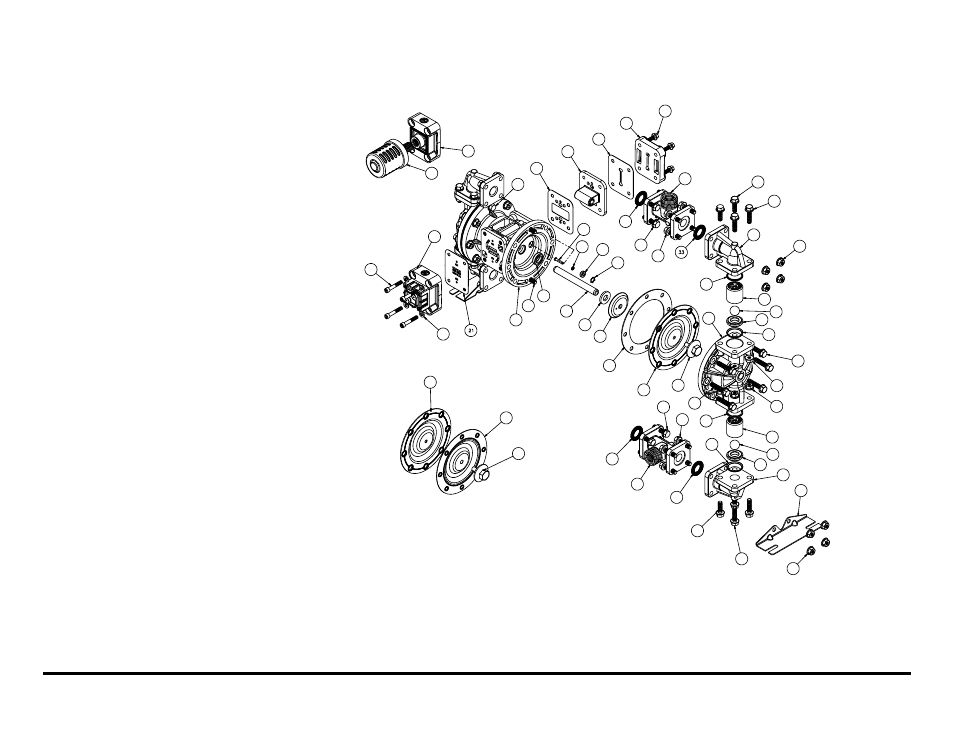

Model S05 Non-Metallic Composite
Repair Parts Drawing
Available Service and Conversion Kits
PART NO. DESCRIPTION
476-219-000 AIR END KIT
Seals, O-rings, Gaskets,
Retaining Rings, Air Valve
Spool and Pilot Valve Assembly.
476-220-000 AIR END KIT for pumps
equipped with Stroke Indicator
(same components as above,
except Spool Assembly with
pins replaces Air Valve Spool)
476-221-000 AIR END KIT for standard
Conductive Acetal pumps
(same components as
475-160-000 above)
476-222-000 AIR END KIT for Conductive
Acetal pumps equipped with
Stroke Indicator
(same components as
475-161-000 above)
476-202-360 WETTED END KIT
Buna Diaphragm, Buna Check
Balls, PTFE Seats and PTFE
Seals.
476-202-354 WETTED END KIT
Santoprene Diaphragms, Nitrile
Spacer Gaskets, Santoprene
Check Balls, PTFE Seats and
PTFE Seals.
476-202-357 WETTED END KIT
Polyurethane Diaphragms,
Buna Spacer Gaskets,
Polyurethane Check Balls,
PTFE Seats and PTFE Seals.
476-202-654 WETTED END KIT
Santoprene Diaphragms, PTFE
Overlay Diaphragm, PTFE
Check Balls, PTFE Seats and
PTFE Seals.
PULSE OUTPUT KITS
(For use with 530-031-550 encapsulated muffler)
475-153-021 DC Kit
475-153-022 DC Intrinsically Safe Kit
475-153-023 110/120VAC or 220/240VAC Kit
475-153-024 110/120VAC Intrinsically Safe Kit
475-153-025 220/240VAC Intrinsically Safe Kit
(For use with 530-023-000 and 530-024-000 mufflers or
piped exhaust)
475-153-026 DC Kit
475-153-027 DC Intrinsically Safe Kit
475-153-028 110/120VAC or 220/240VAC Kit
475-153-029 110/120VAC Intrinsically Safe Kit
475-153-030 220/240VAC Intrinsically Safe Kit
