SANDPIPER S05 Non-Metallic - Manual (Page 16)

520-211-000 3/03 Rev C Model S05 Non-Metallic Design Level 2 Page 16

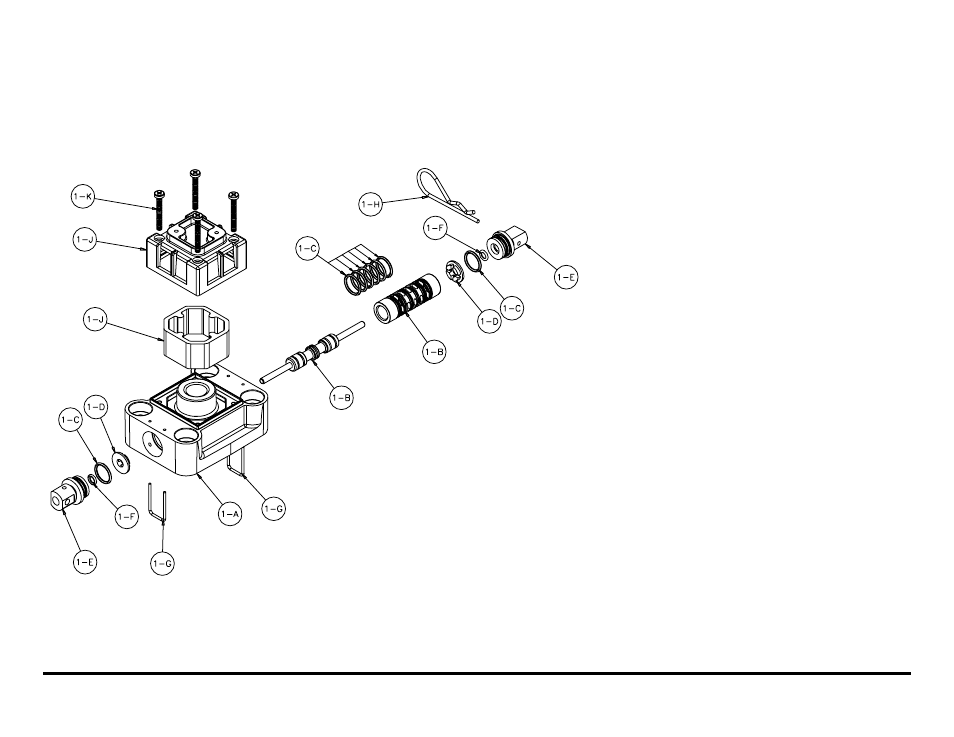

Air Valve with Stroke Indicator Assembly Drawing, Parts List
MAIN AIR VALVE ASSEMBLY PARTS LIST
Item Part Number Description Qty
1 031-167-000 Air Valve Assembly 1
1-A 095-106-551 Body, Air Valve 1
1-B 031-134-000 Sleeve and Spool Set 1
1-C 560-101-360 O-Ring 8
1-D 132-036-357 Bumper 2
1-E 165-123-147 End Cap 2
1-F 560-029-360 O-Ring 2
1-G 675-062-115 End Cap Retainer 2
1-H 210-008-330 Safety Clip 1
1-I 530-031-550 Muffler 1
1-J 165-109-551 Muffler Cap 1
1-K 710-011-115 Self-Tapping Screw 4
For Conductive Acetal pumps:
1
031-167-001 Air Valve Assembly 1
1-A 095-106-503 Body, Air Valve 1
1-J 165-109-503 Cap, Muffler 1
(Includes all other items used on 031-166-000 above)
For Pumps with Virgin PTFE coated hardware:
1
031-167-002 Air Valve Assembly 1
1-G 675-062-308 End Cap Retainer 2
1-J 710-011-308 Screws, Self-Tapping 4
(Includes all other items used on 031-166-000 above)
For pumps with alternate Mesh or Sound Dampening mufflers or Piped
Exhaust:
1
031-169-000 Air Valve Assembly 1
(Includes all items used on 031-167-000 above minus items 1-I, 1-J
and 1-K)
