Pilot valve assembly drawing – SANDPIPER S05 Non-Metallic User Manual
Page 20
520-211-000
2/01
Model S05 Non-Metallic Design Level 1 Page 18

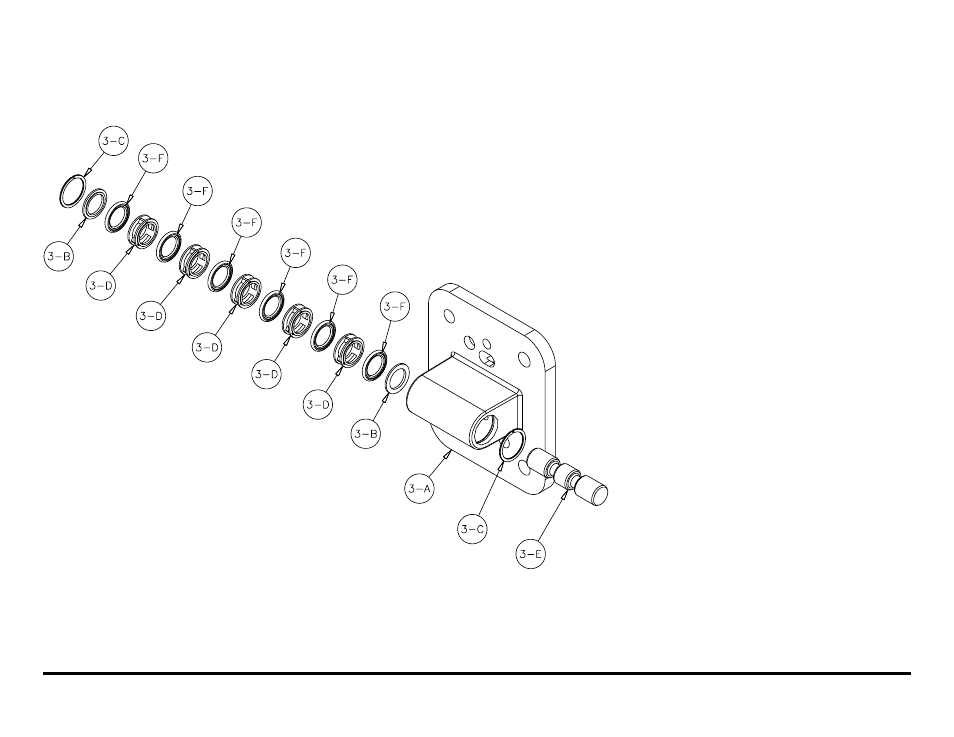

Pilot Valve Assembly Drawing
PILOT VALVE ASSEMBLY PARTS LIST
ITEM
PART NUMBER
DESCRIPTION
QTY
3
095-091-000
Pilot Valve Assembly
3-A
095-087-551
Body, Pilot Valve
1
3-B
135-035-506
Bushing, Pilot Valve
2
3-C
675-057-115
Ring, Spiral Retaining
2
3-D
770-065-175
Spacer
5
3-E
775-041-506
Spool, Pilot Valve
1
3-F
917-003-374
Wiper
6
For Conductive Acetal pumps:
3
095-091-001
Pilot Valve Assembly
1
3-A
095-087-503
Body, Pilot Valve
1
(includes all other items used on 095-091-000 Pilot Valve above)
