DVR User Manual
35
Server port: communication port.
Step 3: If user selects the "Obtain an IP address
automatically", the device will distribute IP address,
subnet mask, and gateway IP and DNS server.
Step 4: enable PPPoE to directly connect the DVR to
internet via ADSL, and then input the user name and
password. Next, click TEST button to test the
effectiveness of the relevant information.

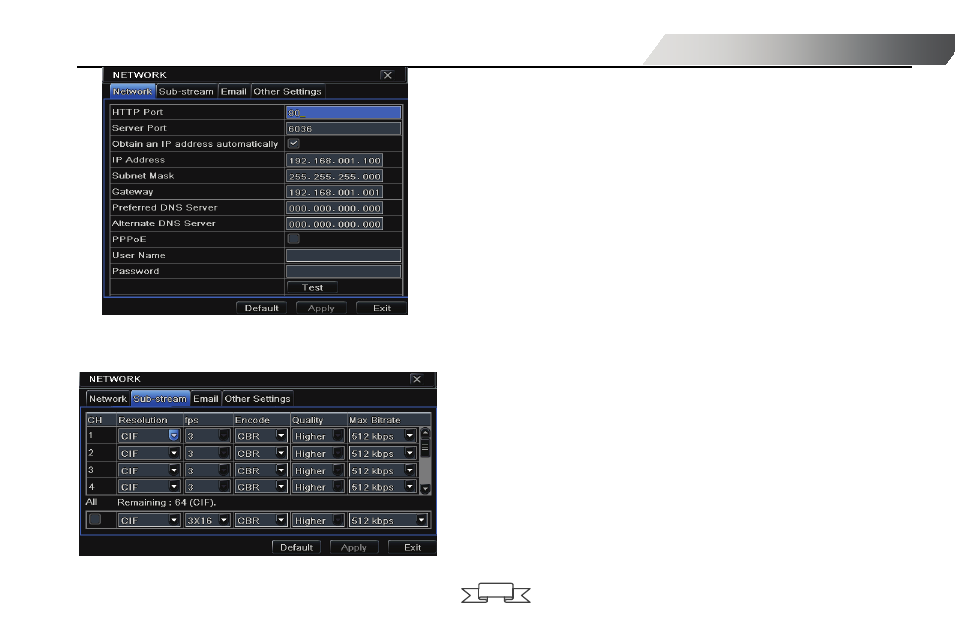

Fig 4-29 network configuration-network
4.6.2 Sub stream
Step 1: enter into system configurationnetwork
configurationsub stream; refer to Fig 4-30:
Step 2: select fps, resolution, quality, encode and max bit
rate
Step 3: user can setup all channels with same
parameters. Tick off “all” to do relevant setup.
Fig 4-30 network configuration-sub stream
