Page 47
F-10

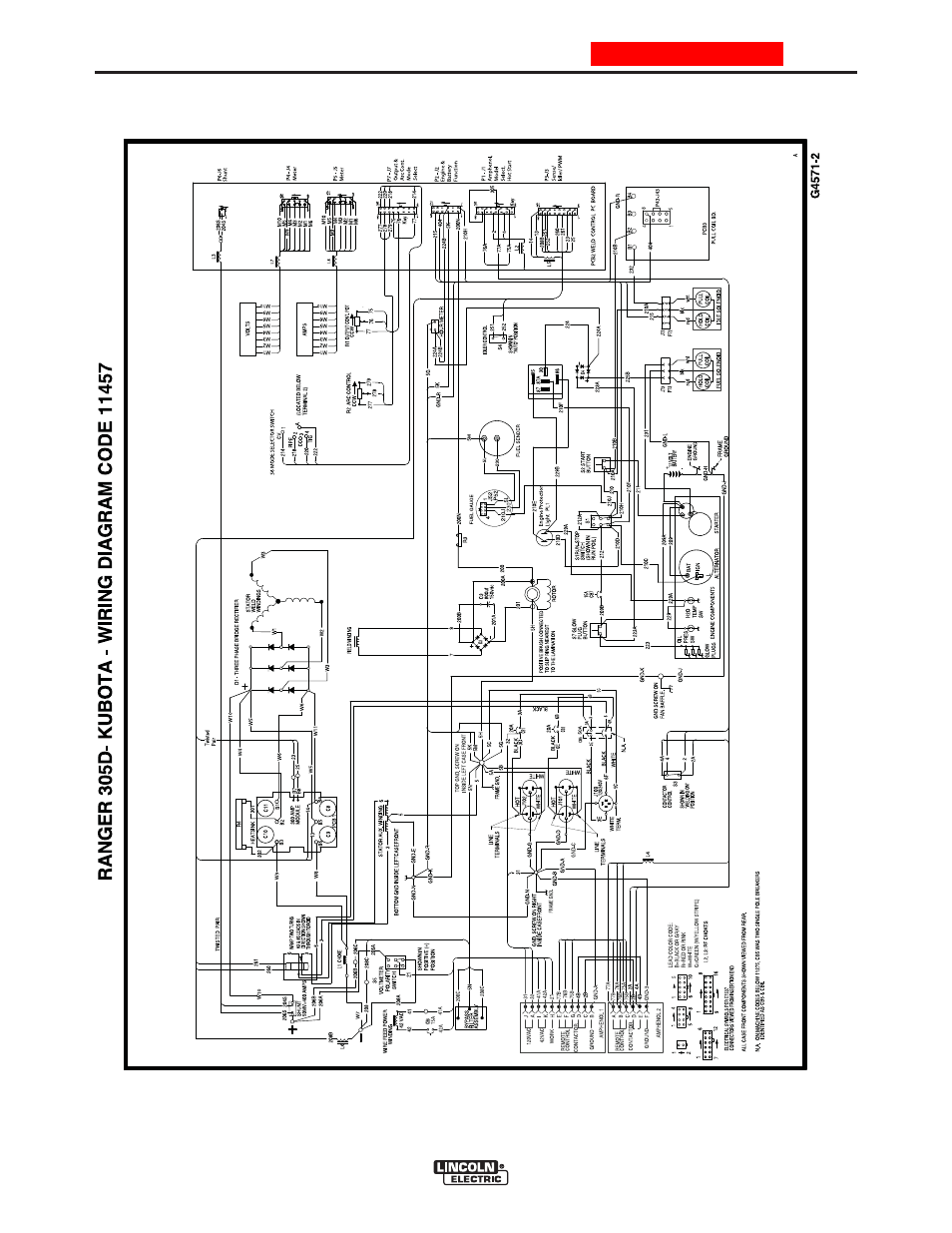

DIAGRAMS
F-10
RANGER® 305D
NOTE:
This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for
a particular code is pasted inside the
machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give
the equipment code number.
ENHANCED DIAGRAM
