POWERTRAK

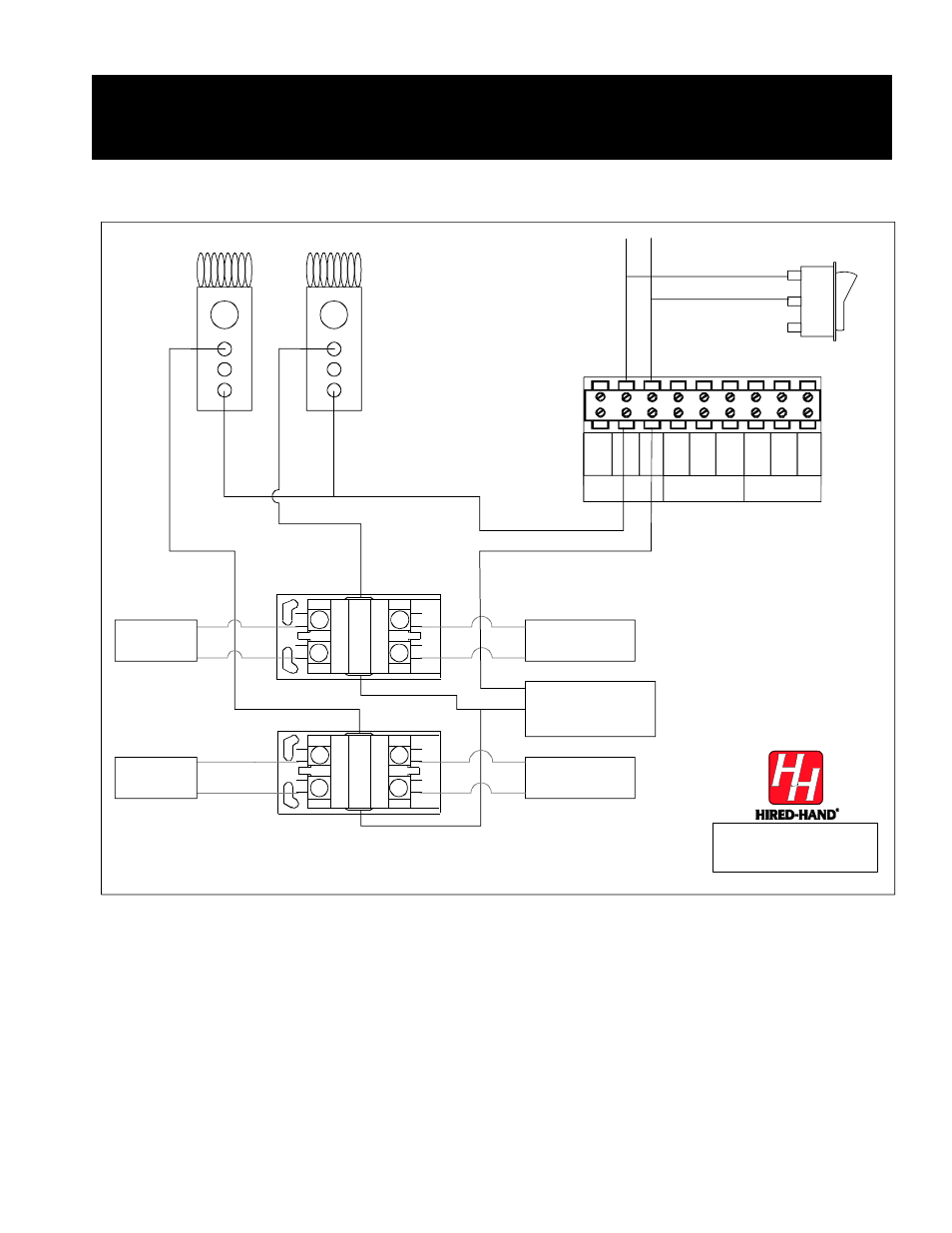

AUXILIARY SWITCH INSTALLATION (Continued)
PowerTrak
AUX
SWITCH
CONTROLLER
AC IN
HOT
NEUT.
LOWER
GND.
HOT
OUT
CLOSE
IN
OPEN
IN
COM
UPPER
From Breaker
for Fans
From Power Source to
Thermostats and
Contactors
From Breaker
for Fans
Two Single Stage Thermostats
Contactors in CCS Panel
All wiring must be performed in
accordance with all National and Local
Electric Codes. Installation by qualified
electrician recommended.
To Fans
To Fans
Pink
Tan
PowerTrak's manufactured after 4/7/97 Serial No's 28810 and later.
