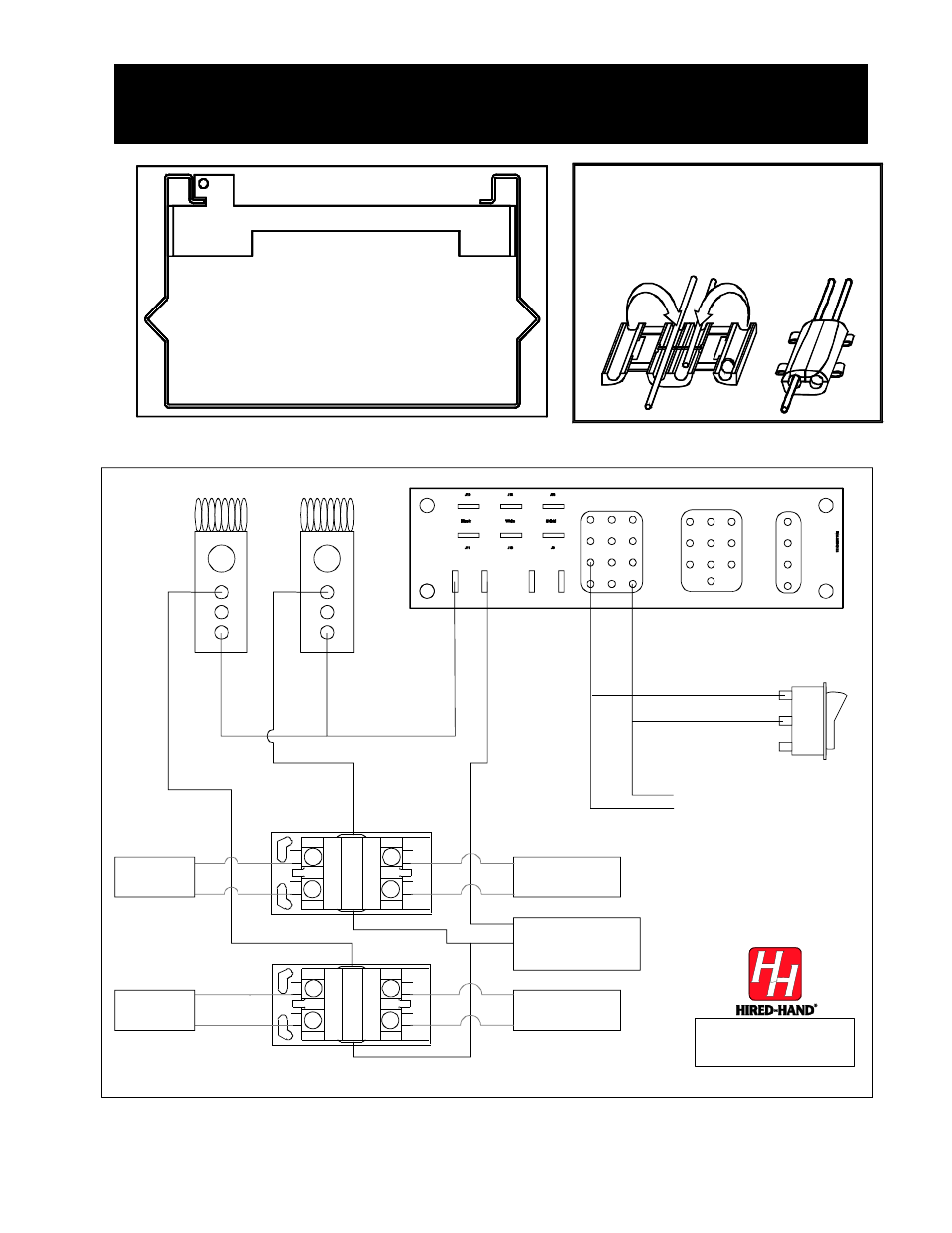

POWERTRAK
AUXILIARY SWITCH INSTALLATION (Continued)
For 4, 5, or 6 foot PowerTrak machines only:
Replace the brace across the center front of the
Machine. This brace is held in place by four bolts.
Use the original bolts to install the new brace.
Connect the wires from the switch to the
wires from the limit switch harness at the
bottom of the machine.
Use the connection as shown below, to
splice the end of the new wire to any part of
the existing wire. Match pink and tan wires
color to color.
PowerTrak's manufactured before 4/7/97 Serial No's 28809 and lower.
J5 J4 J6 J7
Motor Controller Limit Switches
Lower Upper
Fan
Switch
5 August 1994 T.E. PCB135 (Rev A)
From Breaker
for Fans
From Power Source to
Thermostats and
Contactors
From Breaker
for Fans
Circuit board in Power Trak
Two Single Stage Thermostats
Contactors in CCS Panel
All wiring must be performed in
accordance with all National and Local
Electric Codes. Installation by qualified
electrician recommended.
To Fans
To Fans
Pink
Tan
To Limit
Switches
Pink Tan
