Hired-Hand PowerTrak: AUXILIARY SWITCH INSTALLATION - Manual

HIRED-HAND, INC. 1733 Co Rd 68 Bremen, AL 35033 Phone 1-800-642-0123 Fax 256-287-2000
Manual Part No. 4801-0112 Rev 6/98
POWERTRAK
AUXILIARY SWITCH INSTALLATION
Purpose of Equipment:
To give a signal to turn on or off
equipment when curtain height reaches
the position you set.
Warning!
Disconnect all power sources to PowerTrak before
attempting to install the Auxiliary Switch. Electric Shock
may result.
Tools Required:
Drill with 3/16" bit
3/4" Wrench
1/4" Allen Wrench
Pliers
To Set Switch Position:
Manually raise or lower curtains to desired height.
Place template over side even with center of load block
(as shown below at left), then follow the instructions for
installation.
When installation is complete, manually raise and lower
curtain past the switch slowly to be sure that the switch
operates without binding.

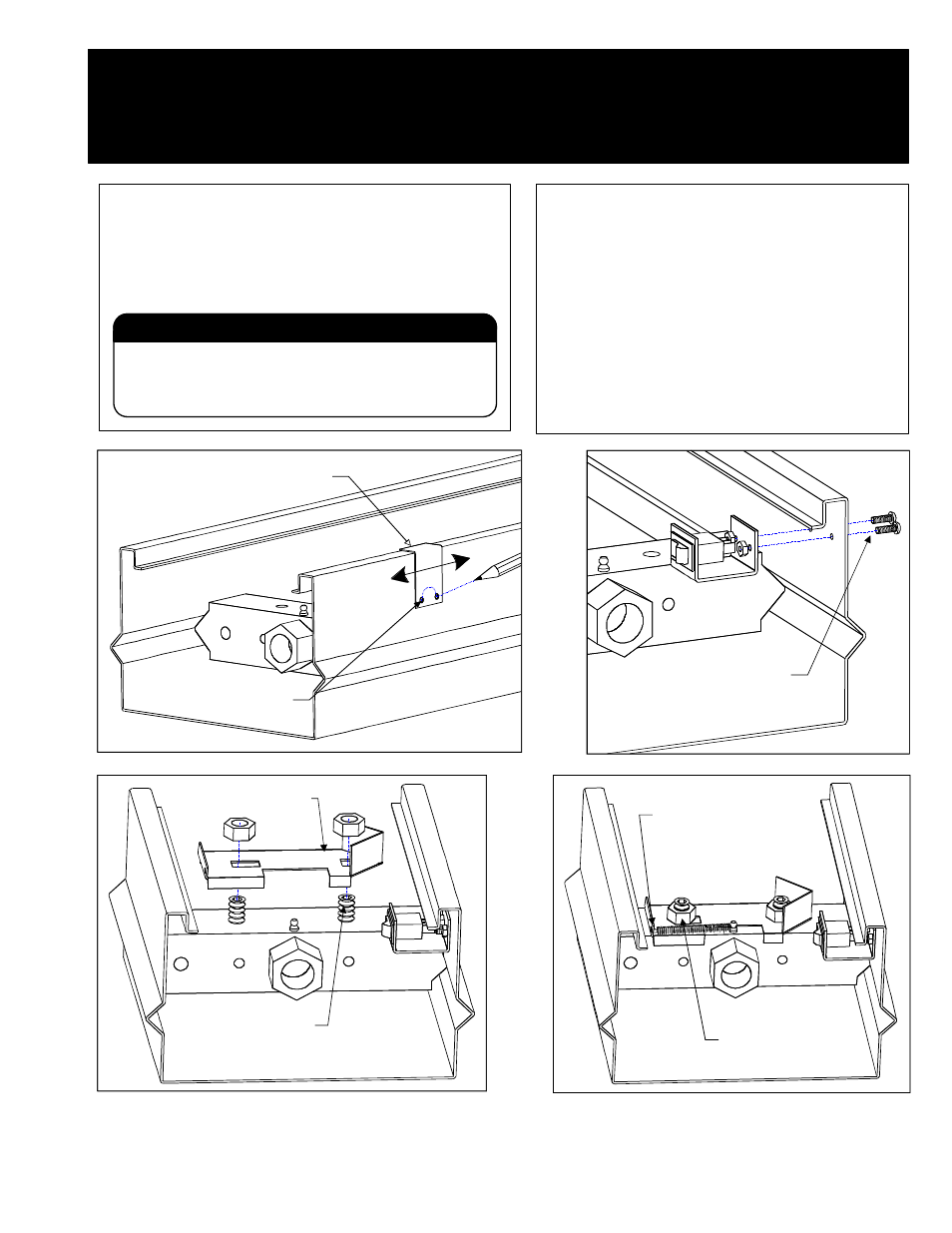

Lay template over side of
PowerTrak at desired height.
Mark and Drill holes.
Attach switch and bracket using
the two nuts and bolts provided.
Replace existing setscrews
with new longer setscrews.
Place bracket on new setscrews, and
secure with nuts. Be sure the bracket
can slide from side to side.
Attach one end of tensioning
spring to bracket as shown,
and the other end around the
grease fitting.
Note: Nuts should not be
completely tightened so
that the bracket may slide
back and forth freely.
* Note For Serial Numbers 20625 and higher (DOM 3/4/96), you must add
two ½ inch washers to the setscrews between bracket and load nut.
