Powertrak, Light control plus switch installation (continued) – Hired-Hand PowerTrak: LIGHT CONTROL PLUS SWITCH INSTALLATION User Manual
Page 3
HIRED-HAND, INC.
· 1733 Co Rd 68 · Bremen, AL 35033 · Phone 1-800-642-0123 · Fax 205-287-2000
PowerTrak Light Control Plus Switch Installation
4801-0138 Rev 7/00
POWERTRAK

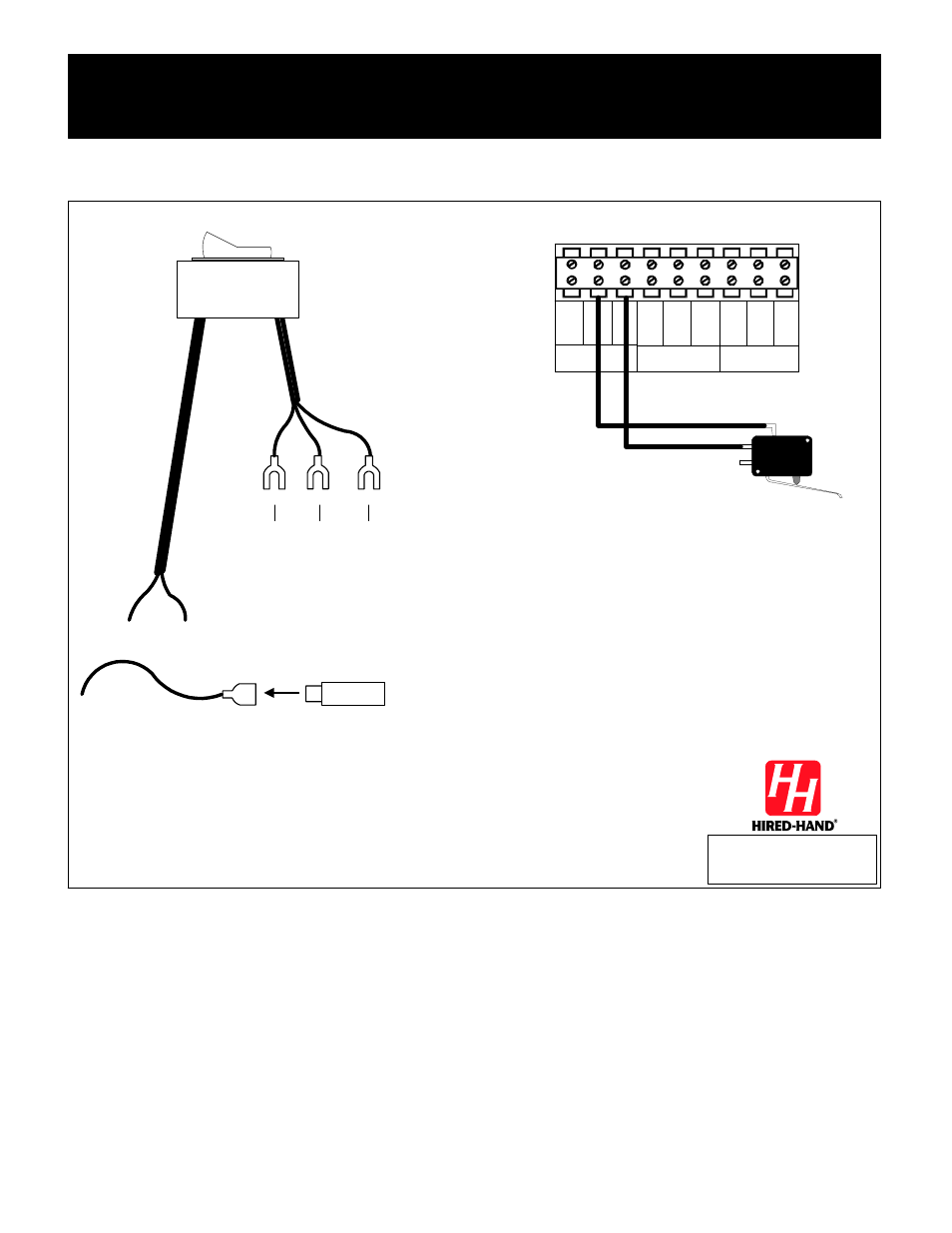

LIGHT CONTROL PLUS SWITCH INSTALLATION (Continued)
All wiring must be performed in
accordance with all National and Local
Electric Codes. Installation by qualified
electrician recommended.
Red
Black
White
10
11
12
Connect to these positions on
Light Control Plus Controller
Red
Black
Disconnect yellow wire on PowerTrak limit switch harness.
Connect this yellow wire to the red wire from the rocker switch
above.
1.
2.
Connect the black wire from the rocker switch to the place on the
PowerTrak you removed the wire from in step 1. The rocker switch
is now connected in series.
3.
1.
2.
3.
Yellow wire on
PowerTrak
Limit Switch on
PowerTrak
PowerTrak
AUX
SWITCH
CONTROLLER
AC IN
HOT
NEUT.
LOWER
GND.
HOT
OUT
CLOSE
IN
OPEN
IN
COM
UPPER
Pink
Tan
PowerTrak's manufactured after 4/7/97 Serial No's 28810 and later.
