Hired-Hand PowerTrak User Manual
Page 8

Part No. 4801-0154 Rev 8-07
PowerTrak
Page 8 of 22

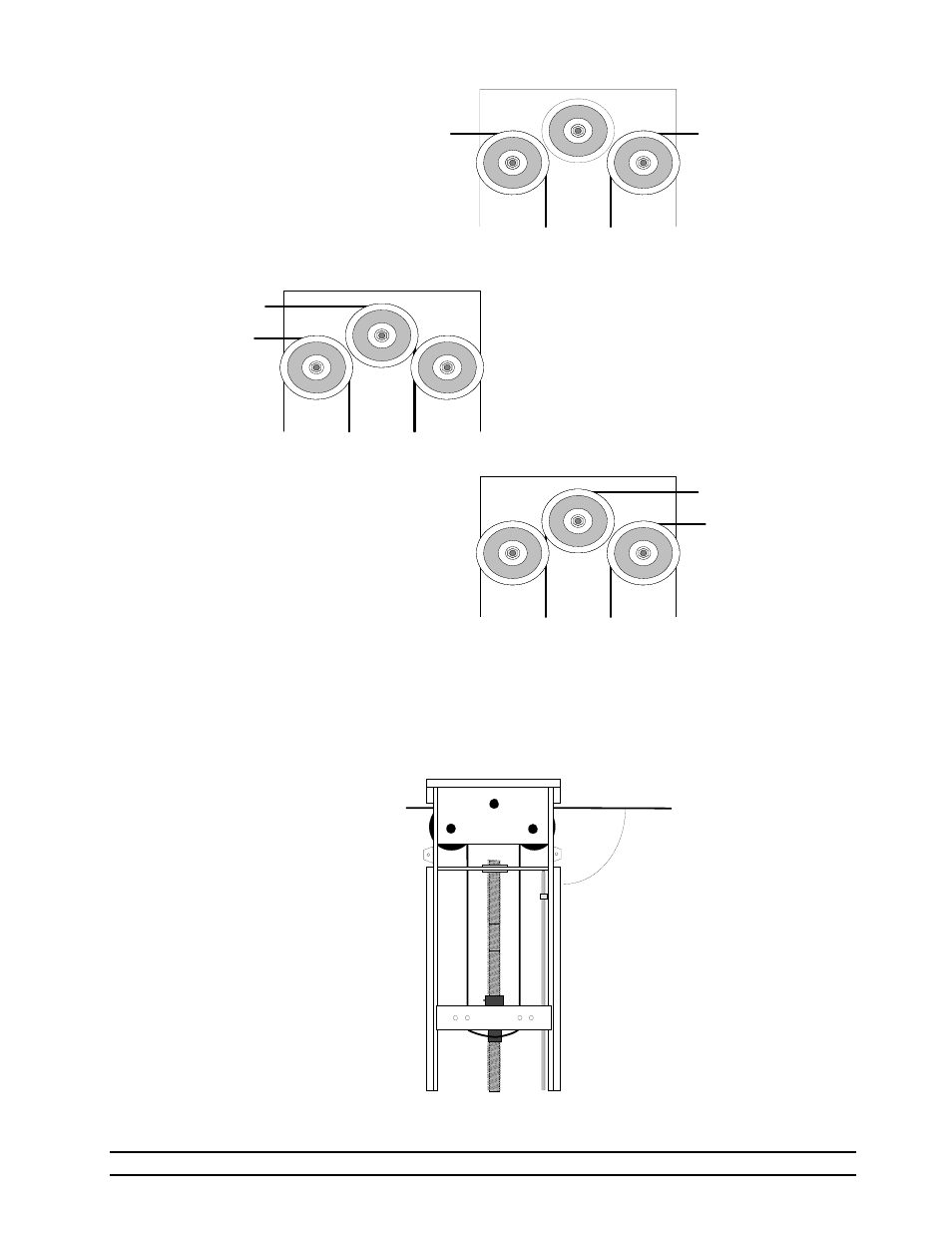

If the PowerTrak will only be
pulling to the left side of the
machine, loop the cables
through the pulleys as shown
in figure 2.
If the PowerTrak will only be pulling
to the right, loop the cables through
the pulleys as shown in figure 3.
When one PowerTrak is used
to pull two curtains loop the
cables as shown in figure 1.
Figure 1
Figure 2
Figure 3
9. Note: The cables should come out of the pulleys at a right angle (90 degrees) with the cabinet.
This ensures even wear on load block. Changing the exit angle of the cable changes the force
seen on that side of the load block.
90 degree angle
