Electro-mechanical controllers – Hired-Hand PowerTrak User Manual
Page 13
Part No. 4801-0154 Rev 8-07
PowerTrak
Page 13 of 22
9. Electro-Mechanical
Controllers
If you own a PC-OC, PC-SS, PC-D3, PC-DB, PC-LP, PC-OD, PV-TIR, or PC-PH. Your controller wiring
diagram may not match the label inside the controller. The only thing different is the label. The internal
wiring of these controllers did not change. Your controller will connect to either the 8 wire or the 3 wire
PowerTrak.

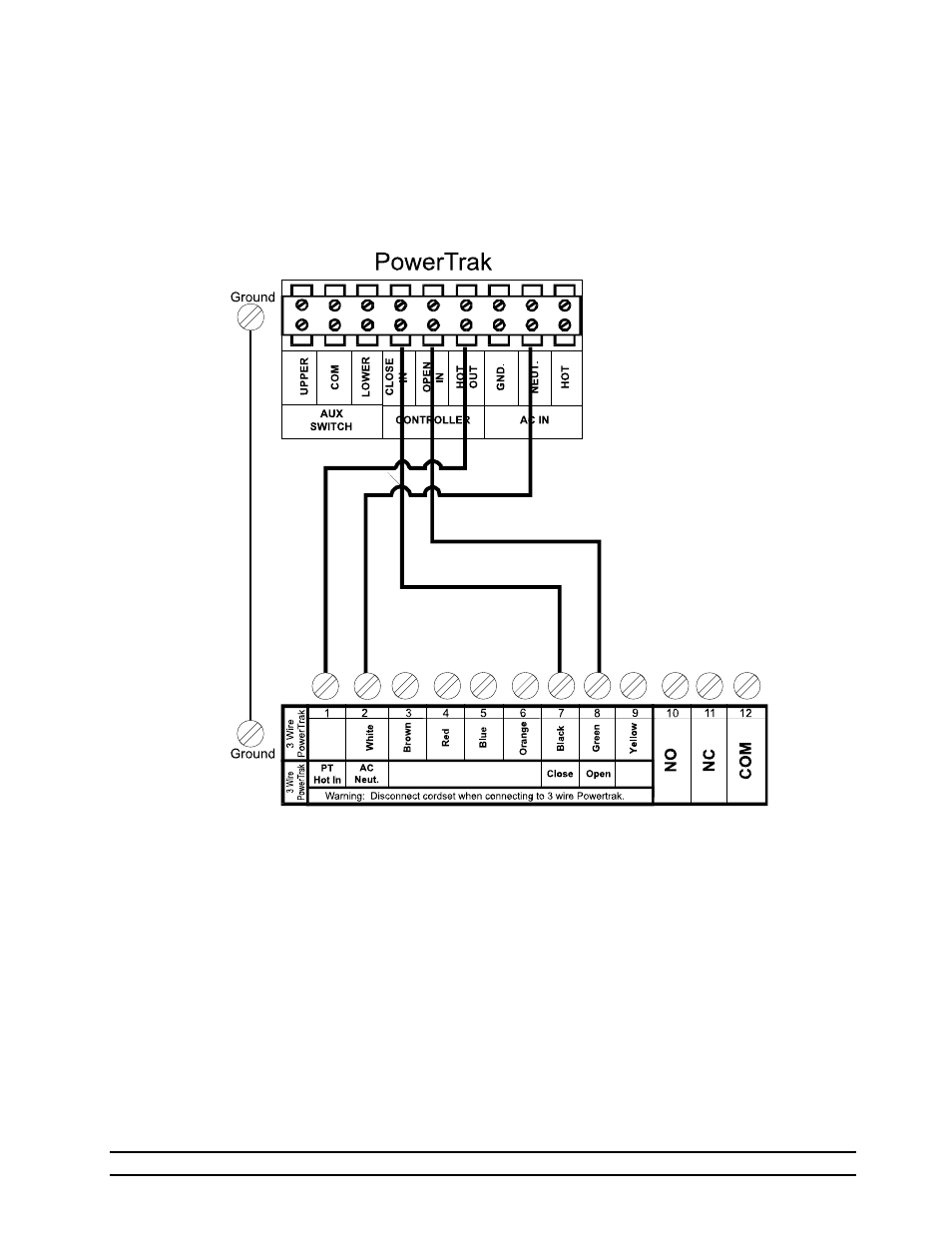

The picture below is the label you will see for your terminal block.
Remove the cordset from the control and remove the fuse wire from the #1 terminal inside the controller.
Connect the two units together using 5 wires. positions 1, 2, 7, 8 and GROUND. (PT HOT IN connects to
HOT OUT(PT), AC NEUT connects to NEUT(PT), CLOSE connects to CLOSE IN(PT), OPEN connects to
OPEN IN(PT), connect ground from GROUND LUG of PowerTrak to metal plate inside control.)
