Hired-Hand Evolution Series 3000/3001: Panel-Mount RJ45 Assembly User Manual
Page 3

HIRED-HAND, INC.
• 1733 County Road 68 • Bremen, AL 35033 USA • Phone 256-287-1000 • Fax 256-287-2000
Manual Part No. 4802-5121 rev 6-08 Page
3 of 4
(5) Using the tube of anti-corrosion paste, apply a small amount of paste to the inside of the PCB170 RJ45 J1 connector
as shown in Figure 4. Ensure that all of the J1 contacting surfaces are completed coated.
(6) Connect the Extension Cable from the RJ45 bulk-head fitting to the PCB170 RJ45 J1 circuit board connector and
route the cable as shown in Figure 5.
(7) Perform tests to verify connections and operation through the RJ45 assembly.

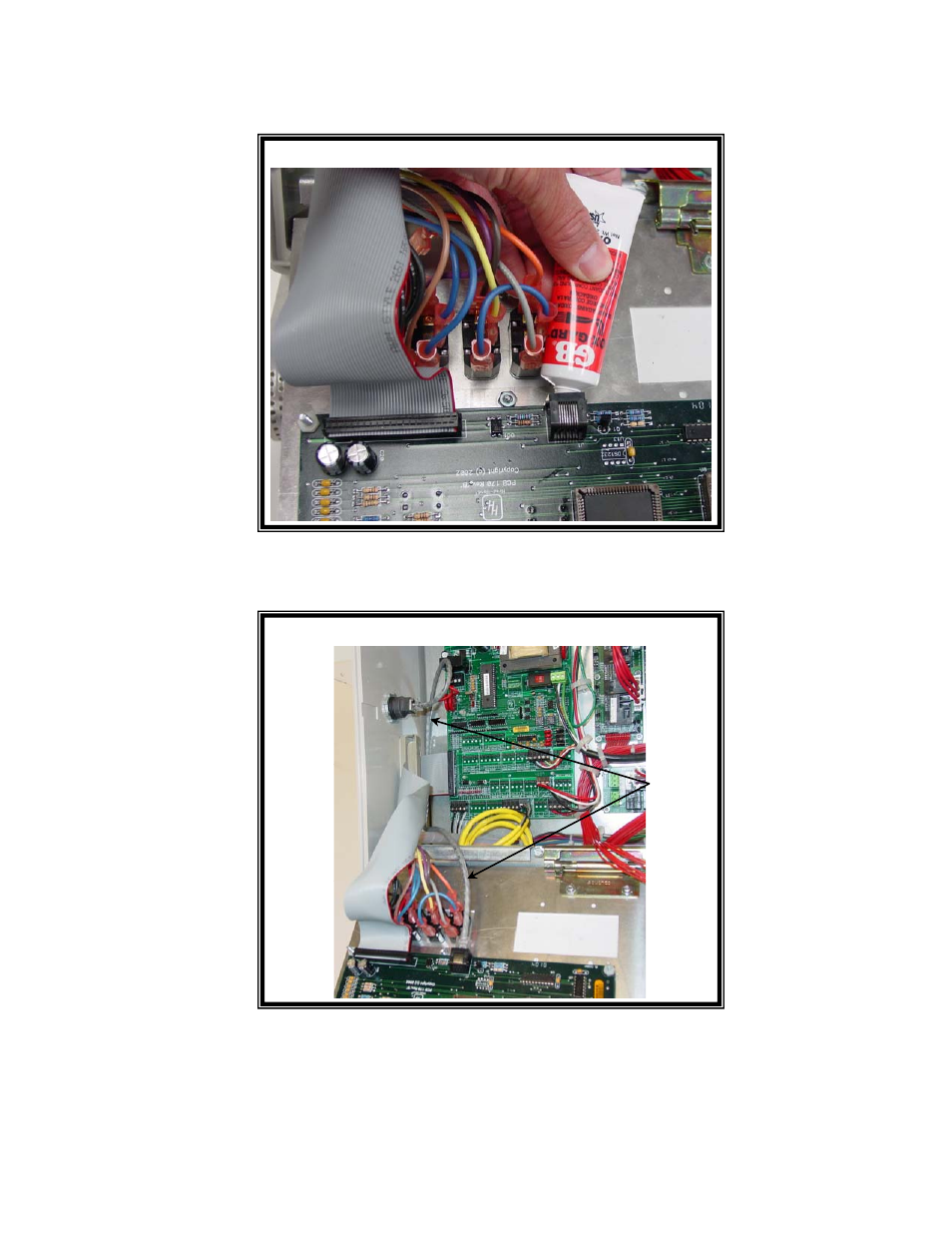

Figure 5: RJ45 Extension Cable Routing
RJ45
Extension
Cable
Figure 4: Apply Paste to PCB170 RJ45 J1 connector.
Evolution 3000/3001 PCB170
J1
