Hired-Hand Evolution Series 3000/3001: Panel-Mount RJ45 Assembly User Manual
Page 2
HIRED-HAND, INC.
• 1733 County Road 68 • Bremen, AL 35033 USA • Phone 256-287-1000 • Fax 256-287-2000
Manual Part No. 4802-5121 rev 6-08 Page
2 of 4

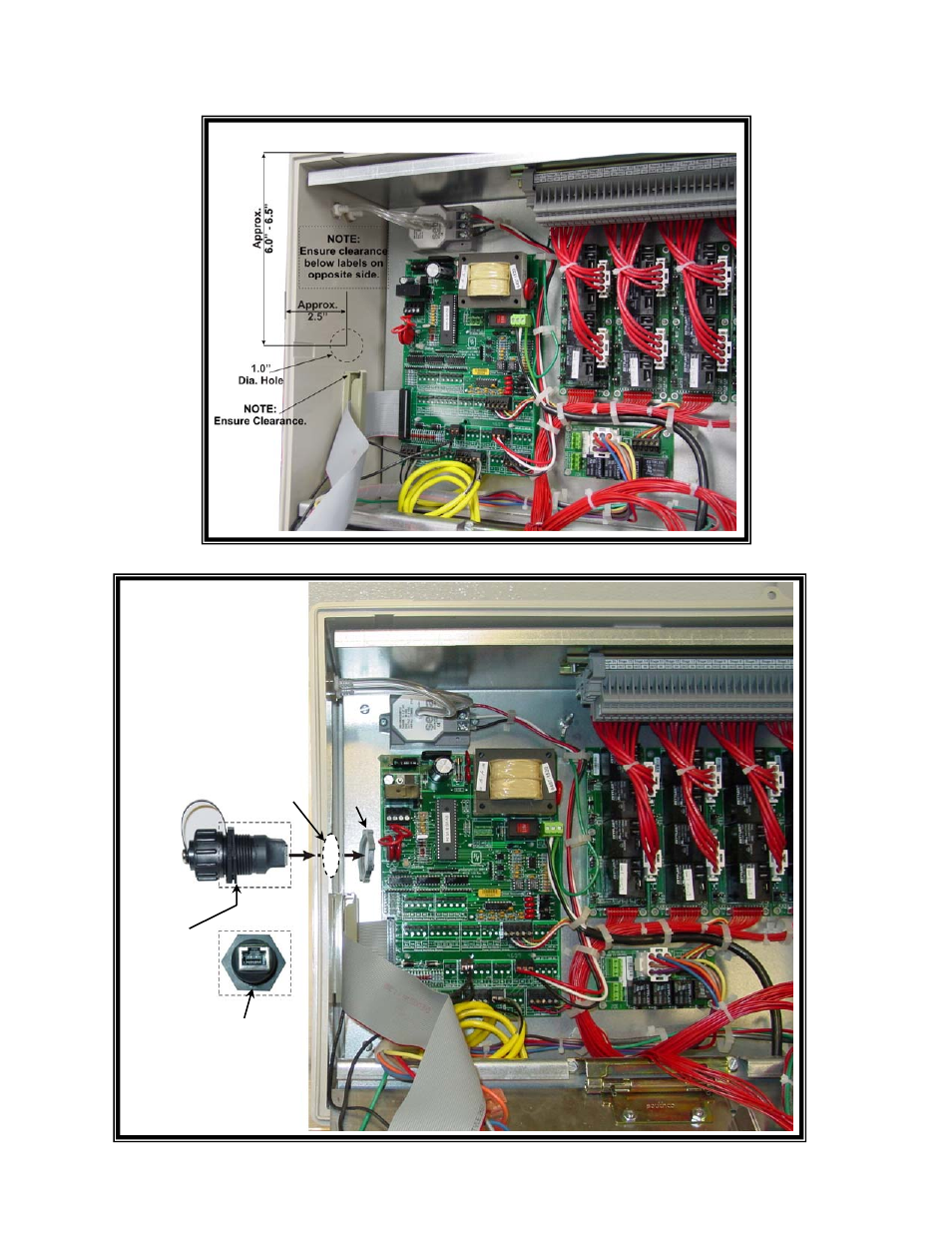

(3) Drill a 1” hole in the enclosure approximately as shown in the Hole Location diagram Figure 2.
(4) Install the RJ45 fitting into the drilled hole as shown in Figure 3 and tighten the Nut securely.
Metal
Conduit
Nut
Rubber
Gasket
1” dia.
Hole
NOTE: When applicable, the
cut-out in Rubber Gasket Fits
notch in Plastic. Turn for
Placement on Bottom as
shown.
*Some versions may not have
this cut-out/notch.
Figure 3: RJ45 Fitting Installation
Figure 2: Hole Location
Example of
Evolution 3000/3001
