Program Setup – For Variable Stages

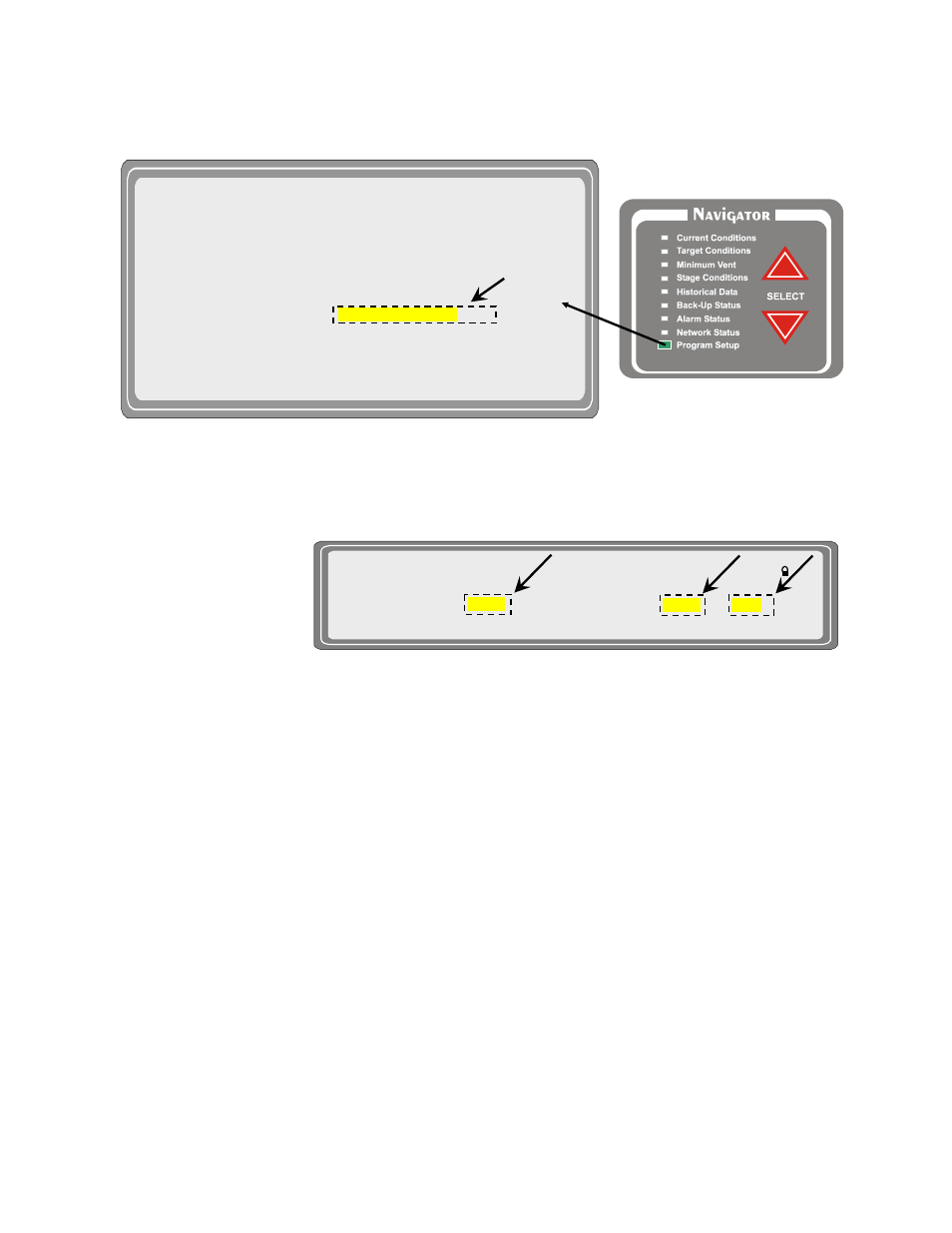

D. Select the Program Setup screen using the Navigator Select buttons. Highlight Variable Stages and press
the ENTER button.
Variable Stages
E. Select the specific Variable Stage wired for use with the Light Control Relay.
F. Select “Light” Mode and “Light” Curve.
G. Under Time, determine and select whether “Ramp” or a specific Schedule is required.
H. Refer to the EV-1200 or EV-3000/3001 controller manual for additional details on Variable Stages.
** FREQUENTLY ADJUSTED SETTINGS ** "
GENERAL SETTINGS
STATIC PRESSURE
SENSOR SETUP
PROGRAMS & SECURITY
** INITIAL SETUP **
TEMP/TIMER% RAMP TUNNEL SETUP
FEED CLOCK SETUP
ON/OFF STAGES
LIGHT CLOCK SETUP
VARIABLE STAGES
STAGE PROPERTIES NATURAL VENT
DIAGNOSTICS
EXPANSION STAGES
FEED LEVEL
VARIABLE STAGES
**VARIABLE STAGES**(Target: 77.5°)
# SENSORS MODE MaxON MinON CURVE TIME
1
-------1 Light
Ramp
2
-------1 Cstir 76.2° 74.0° Fan 4 None
Light Light Ramp
