Part No. 4801-5042 Rev 9/99 PT Controller 3
Important: Care must be taken to make sure that the appropriate voltage is connected to L1 and L2.
For example, if your PT Controller is a 240VAC model make sure 240VAC is supplied.

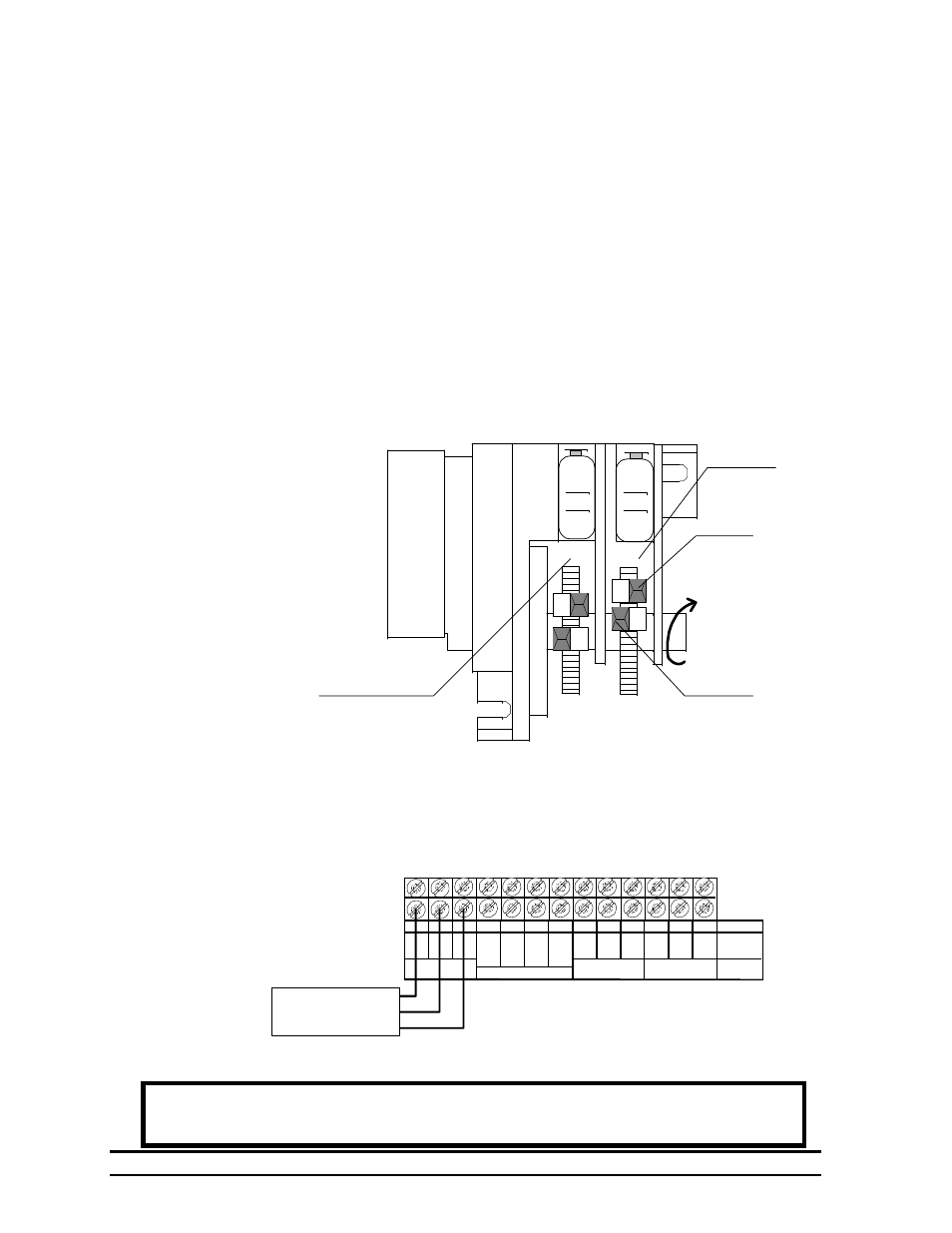

Fig. 1
Open Side of
Timer
Rotation
Run Tab
Stop Tab
Close Side of
Timer
6. Operation
6.1 Manual Control
When the Automatic/Manual switch is in Manual, the controller will open and close the curtains or
vents whenever the bottom switch is in its open or close position. The center position of the switch is
the off position.
6.2 Automatic Control
To place the PT Controller in automatic operation, select Automatic with the top toggle switch on the
control box. The terminals (position 4, 5, 6, and 7 on the terminal strip) need to be connected before
this operation will work. See wiring diagrams in the back of this manual.
6.3 Internal Timer
The internal timer is a five
minute timer (see fig 1). The
timer has two timer wheels, one
for the close operation and one
for the open operation. The
two tabs on each wheel controls
the duration of the close and
open operation. When
adjusting the tabs, the further
apart the longer the operation,
closer together the shorter the
operation.
7. Connection of Power Supply
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
CLOSE
WHITE
Hot
IN
Thermostat/Control
L1
Power Supply
L2 GND
Hot
IN
UNIT 1 UNIT 2 (Common)
PT Controller
Ground
L1
L2
120 or 240 Volt
Power Supply
