7 electrical parts list – Hired-Hand Electro Mechanical Controls (Relay-Switches): PHOTOHELIC POWER VENT User Manual
Page 10
Part No. 4801-1206
Photohelic Power Vent
8

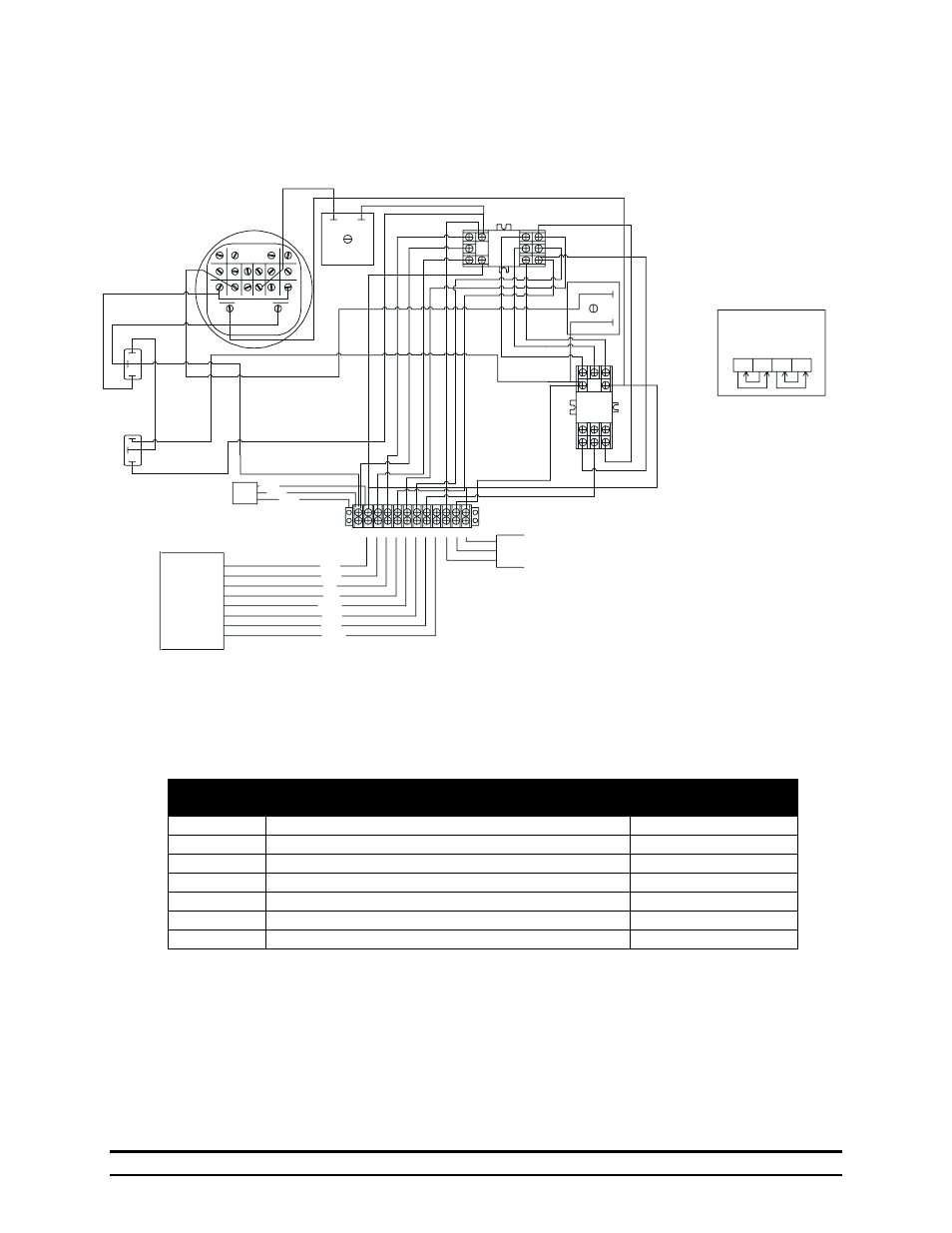

9.6 Photohelic 120 Volt Time Delay (9-Wire)
9.7 Electrical Parts List
Part
No.
Description
Application
3001-2863
Switch SPDT Toggle Tab (Top Switch)
All Models
3001-2864
Switch SPDT Toggle Cen Off Tab (Bottom Switch)
All Models
3006-1560
Con Skt Rly GT08PC
All Models
3008-2858
XFRMR 230 to 115 50VA 50/50 Hz
240 Volt Models
3012-1557
Timer Delay TD-10 2A562
Time Delay Model
3015-2884
Relay DPDT 120V Socket Mount
All Models
3021-1560
Gauge Photohelic
All Models
120
Volt
WHT
BLK
GRN
White
Brown
Red
Blue
Orange
Black
Green
Yellow
8 Connector
Wire From
Power Unit
To reverse wiring and
closing directions
switch, Top wires on
terminal as shown.
5 6 7 8
For Optional PV-R2 Relay Control
(Terminals 10, 11, & 12 Connect To
Terminals 10, 11 & 12 In PV-R2 Control)
1 2 3 4 5
8 9 10 11 12
6
