Hired-Hand Mega Flow SlantWall Fans: UNASSEMBLED BELT DRIVE METAL FAN 48 & 52 Slant Wal - Manual (Page 3)

Hired-Hand, Inc.
• 1733 County Road 68 • Bremen, Alabama 35503 • Ph 256-287-1000 • Fax 256-287-2000
Manual Part No. 4801-2993 Rev 9-05 Page 3 of 4
10. Refer to Figure 2. Install the two tension latches (1040-
0105) to the right and left cabinet panels with 3/16" fan
rivets (1005-5006).
11. Refer to Detail F. Install the right, left, bottom and top
cabinet panels to the fan orifice using fan rivets (1005-
3049).
12. Refer to Detail F. Install four 1/4"-20 x 1" screws (1004-
2533), flat washers (1003-1461), and lock nuts (1001-
1446) to the rear gusset through the top and side of the
cabinet.
13. Refer to Detail G. Install the four Cabinet gussets (0404-
2913) using fan rivets (1005-3049). NOTE: Gussets fit
to inside of cabinet flanges.
Cabinet Top
Cabinet Left
Cabinet Bottom
Cabinet Right
Wire Guard
3-Blade Fan
Key Shear
(1019-2417)
Latch
(1040-0105)
Gusset
(0404-2913)

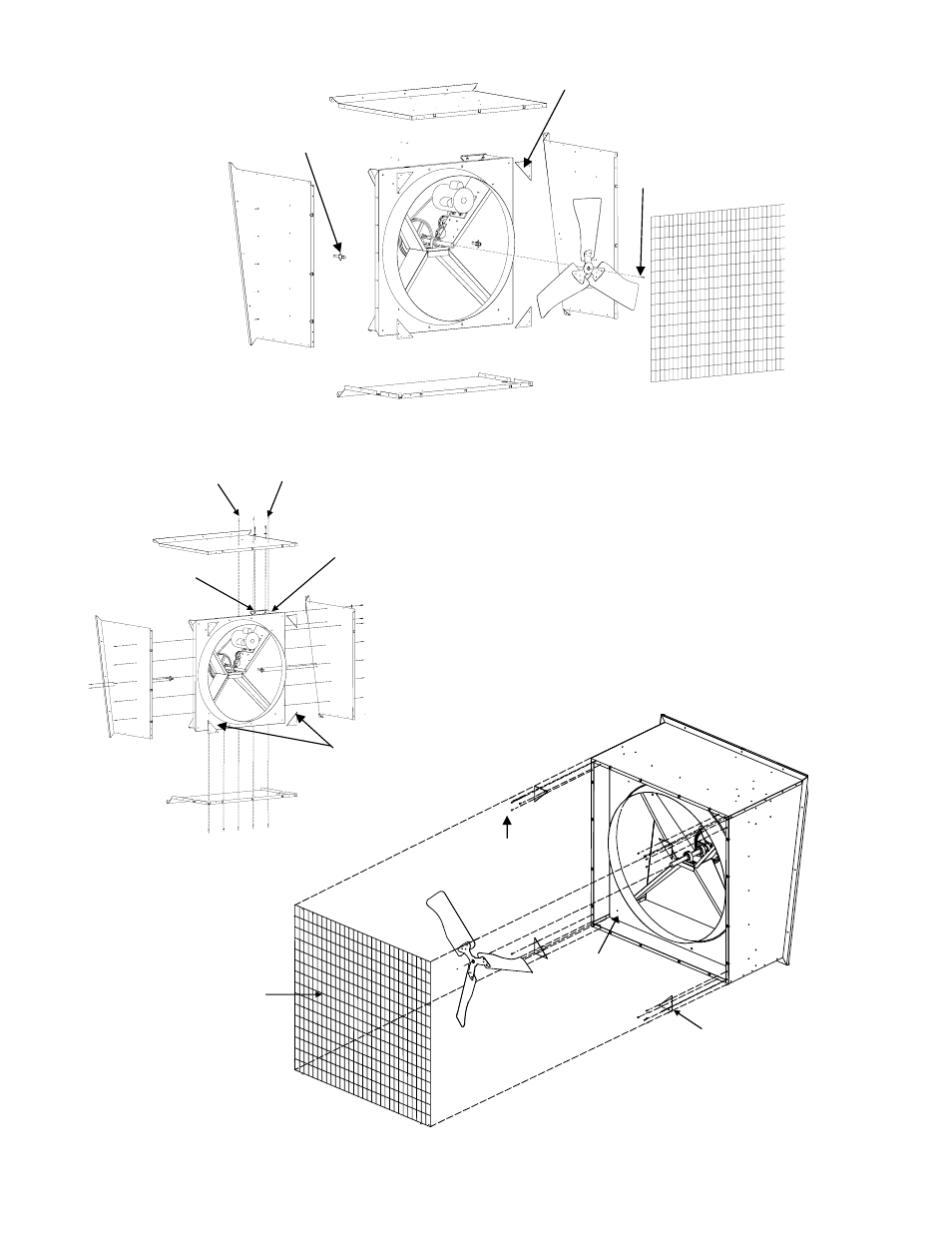

Figure 2 - Assemble Cabinet, Fan, Motor and Wire Guard
Detail G
Prop
Wire Guard
3/16” Rivet
(1005-3049)
GUSSETS
FIT INSIDE
CORNERS
Gusset
(0404-2913)
Detail F
Rear Gusset
Flat Washer
(1003-1461
)
Cabinet gusset
(0404-2913)
¼” - 20 x 1”
(1004-2533)
Lock Nut
(1001-1446)
