48" aluminum shutter spring kit, Purpose, Tools required

HIRED-HAND, INC. • 1733 Co Rd 68 • Bremen, AL 35033 • Phone 1-800-642-0123 • Fax 256-287-2000
Part
No.
4801-5205
Page
1
of
2
Purpose
To add spring tension to an existing aluminum shutter for more efficient operation.
Tools Required
Cordless Drill
1/4” drill bit
Kit of Parts
¼” hex head bit
Screwdriver
Pop Rivet Gun
Directions
(1)
Open the Kit of Parts and verify that all parts are present.
See Figure 1.
(2)
Remove the shutter from the fan and place the exhaust side
down on a flat level surface. NOTE: The shutter should be fully closed during installation.
!
Warning
Before beginning Installation disconnect all
electrical power from the fan.

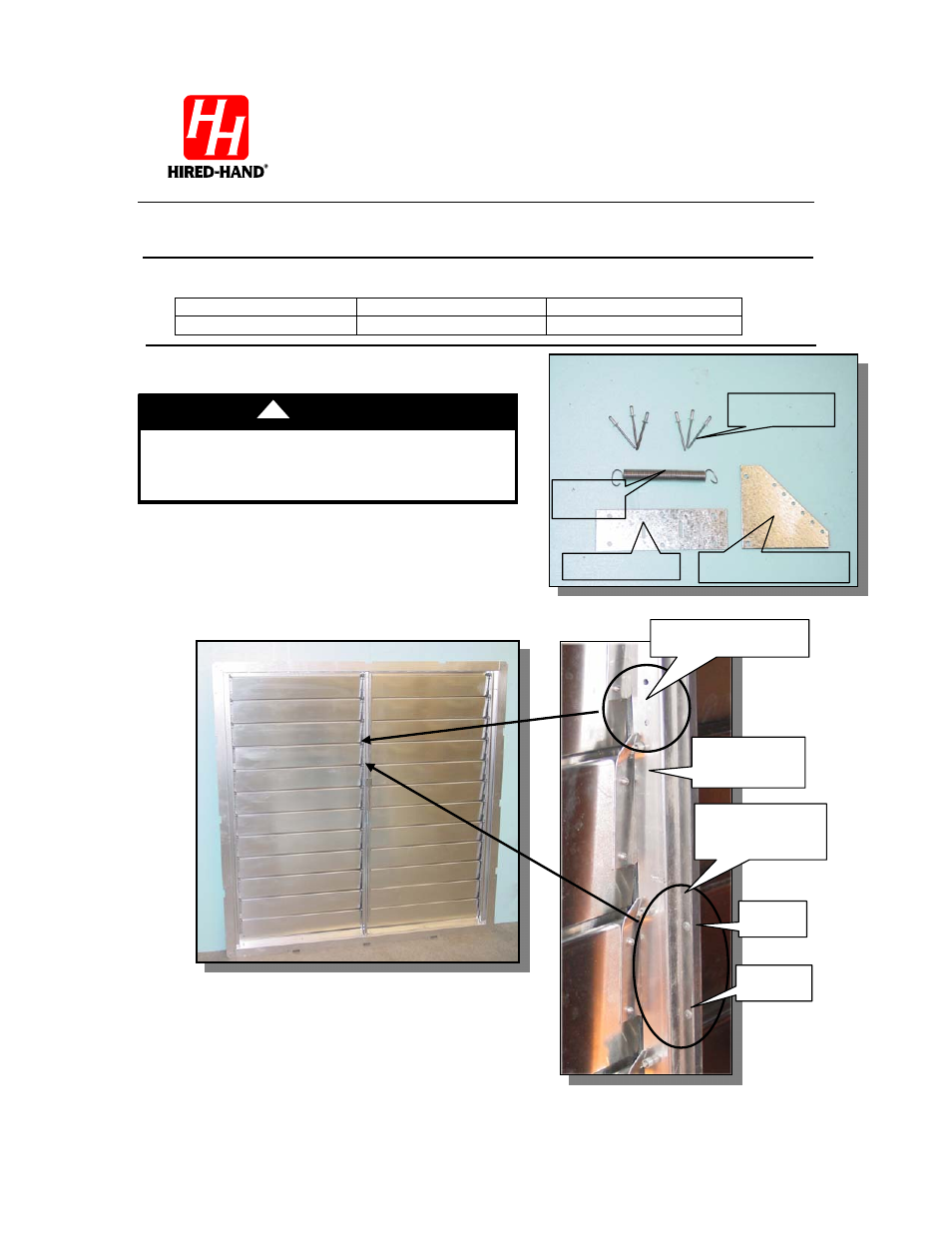

48" Aluminum Shutter Spring Kit
Figure 1 Kit of Parts
Pop Rivets
Spring
U - Bracket
Spring Tensioner
Center Vane
Assembly
Vain Rail
Assembly
Pre-Drilled Holes
Rivet
Rivet
Figure 2 Aluminum Shutter
(3)
Locate the four holes in the shutter as shown in Figure 2.
The two top holes are in the left and right Vain Rail Assembly
and are pre-drilled. The two bottom holes are in the left and
right Center Vane Assembly and contain rivets. The two top
holes will hold the “U” Bracket installed in Step 6 and the
bottom two holes will contain the Spring Tensioner installed
in the next step.
