Part No. 4801-5369 Rev. 10-07 Chimney Vent Page 10 of 12
9. Parts/Assemblies
Part Numbers and Assemblies available with the
Chimney Vent are shown in the tables below.
See Figure 12.
Hired Hand 24" Chimney Vent Parts & Assemblies
Item Description(Quantity) Part Number
1 Canopy(1) 0406-5780
2 Canopy Support Bracket(4) 0401-5779
3 4’ Side Panel Assembly(4) 6409-3002
4 Extension Bracket(4) 0401-5725
5 Extension Side Panel Assembly(4) 6409-3003
6 Baffle Assembly(1) 6409-3007
7 Pulley Bracket Assembly(1) 6409-3011
8 Wire Guard (Bird Screen)(1) 0401-5781
9 Wire Guard Mounting Strip(2) 0401-5661
10 Winter Door Assembly(1) 6409-3000
Hired Hand 36" Chimney Vent Parts & Assemblies
Item Description(Quantity) Part Number
1 Canopy(1) 0406-5728
2 Canopy Support Bracket(4) 0401-5716
3 4' Side Panel Assembly(4) or 6409-3004
3 10' Side Panel Assembly (4) 6409-3012
4 Extension Bracket(4) 0401-5725
5 Extension Side Panel Assembly(4) 6409-3005
6 Baffle Assembly(1) 6409-3006
7 Pulley Bracket Assembly(1) 6409-3010
8 Wire Guard (Bird Screen)(1) 0401-5729
9 Wire Guard Mounting Strip(2) 0401-5663
10 Winter Door(1) 6403-3001

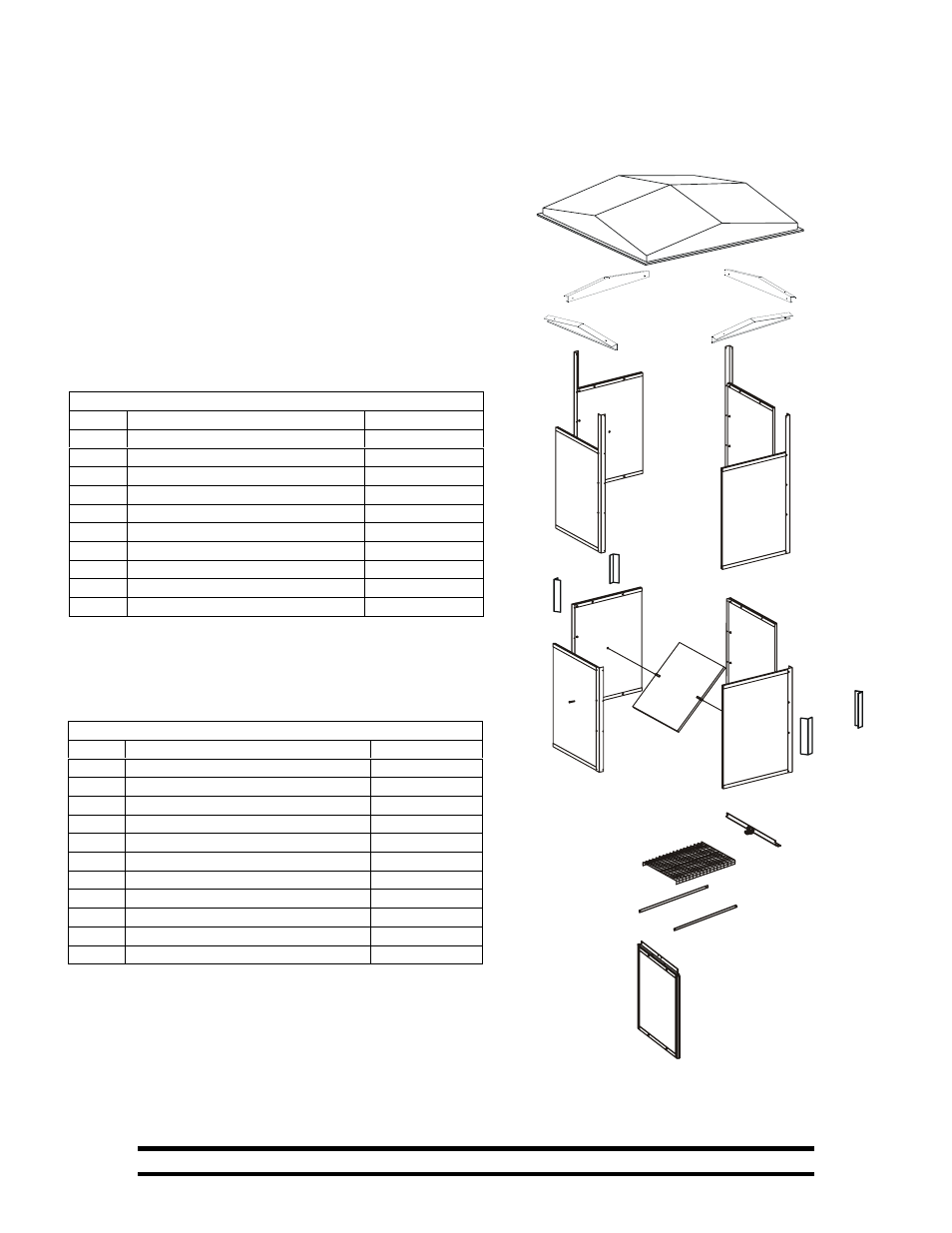

Figure 12 Parts and Assemblies
1
2
2
2
2
3
3
3
3
4
4
4
4
5
5
5
5
7
8
9
9
10
6
