Ultra Start 72 Series - Manual (Page 3)

(+) GLOW PLUG - PROGRAMMABLE/ - SEE PAGE 13 (+) START TRIGGER
SYSTEM PROGRAMMING - Menu 1
PAGE 3
72 SERIES

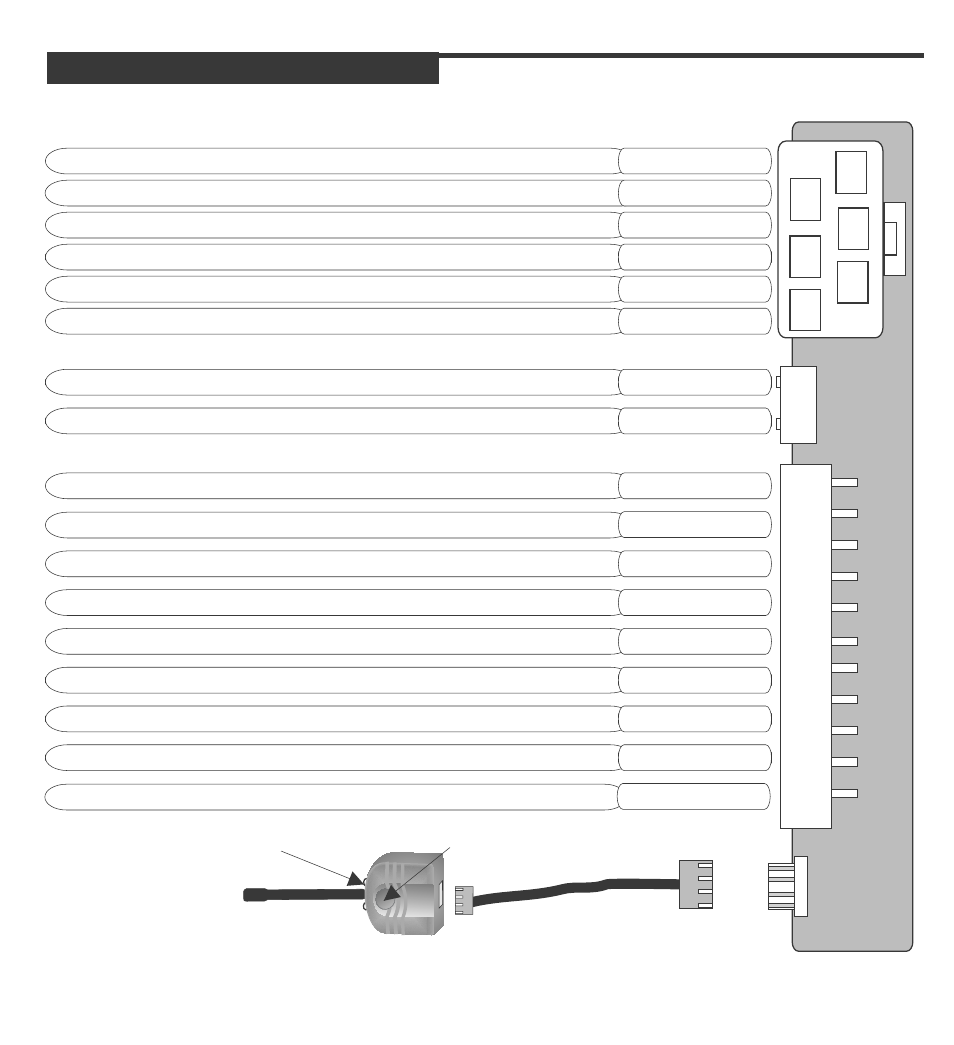

INSTALL MANUAL QUICK VIEW WIRE DIAGRAM
1
5
3
2
4
6
1
2
3
4
5
6
7
8
9
1
2
SYSTEM GROUND INPUT
SELECTABLE PARK LIGHT OUTPUT (DEFAULT POSITIVE)
STATUS LED
PROGRAM / VALET BUTTON
BLACK
WHITE
OUTPUT TO ACTIVATE IGNITION CIRCUIT THE VEHICLES BLUE
SELECTABLE OUTPUT* (DEFAULT 2ND IGN) SEE PAGE 11 WHITE*
12VOLT/ 30 AMP MAIN POWER INPUT RED
OUTPUT TO ACTIVATE THE VEHICLES STARTER CIRCUIT YELLOW
12VOLT/ 30 AMP MAIN POWER INPUT RED
OUTPUT TO ACTIVATE ACCESSORY CIRCUIT THE VEHICLES GREEN
(-) AUXILIARY 1 OUTPUT - PROGRAMMABLE - SEE PAGE 13 BLACK
(-) AUXILIARY 2 OUTPUT - PROGRAMMABLE - SEE PAGE 13 RED/WHITE
(-) REARM OUTPUT - PROGRAMMABLE - SEE PAGE 13 YELLOW
(-) DISARM OUTPUT (PULSE WITH UNLOCK & BEFORE START) BROWN
(+ / -) TACH DETECTION INPUT (CONNECT TO COIL, INJECTOR...) BLUE/WHITE
(-) HOOD PIN SWITCH INPUT (GROUND WHEN HOOD IS OPENED) GREEN/WHITE
(+) BRAKE SWITCH INPUT (12VOLT WHEN BRAKE IS PRESSED) PINK
BLUE
(-) HORN OUTPUT - PROGRAMMABLE - SEE PAGE 13 WHITE/BLUE
DO NOT INSTALL THIS SYSTEM INTO A MANUAL TRANSMISSION VEHICLE!!
