1- WHITE/VIOLET Wire- Ground When Running (-)
Connect this wire to the your bypass modules negative turn on wire. When the remote starter is
activated this wire will switch to ground.
2- BLACK Wire- System Ground (-)
Connect this wire to the ground input on the bypass module.
3- RED Wire- 12volt Power Input (+)
Connect this wire the 12volt input on the bypass module.

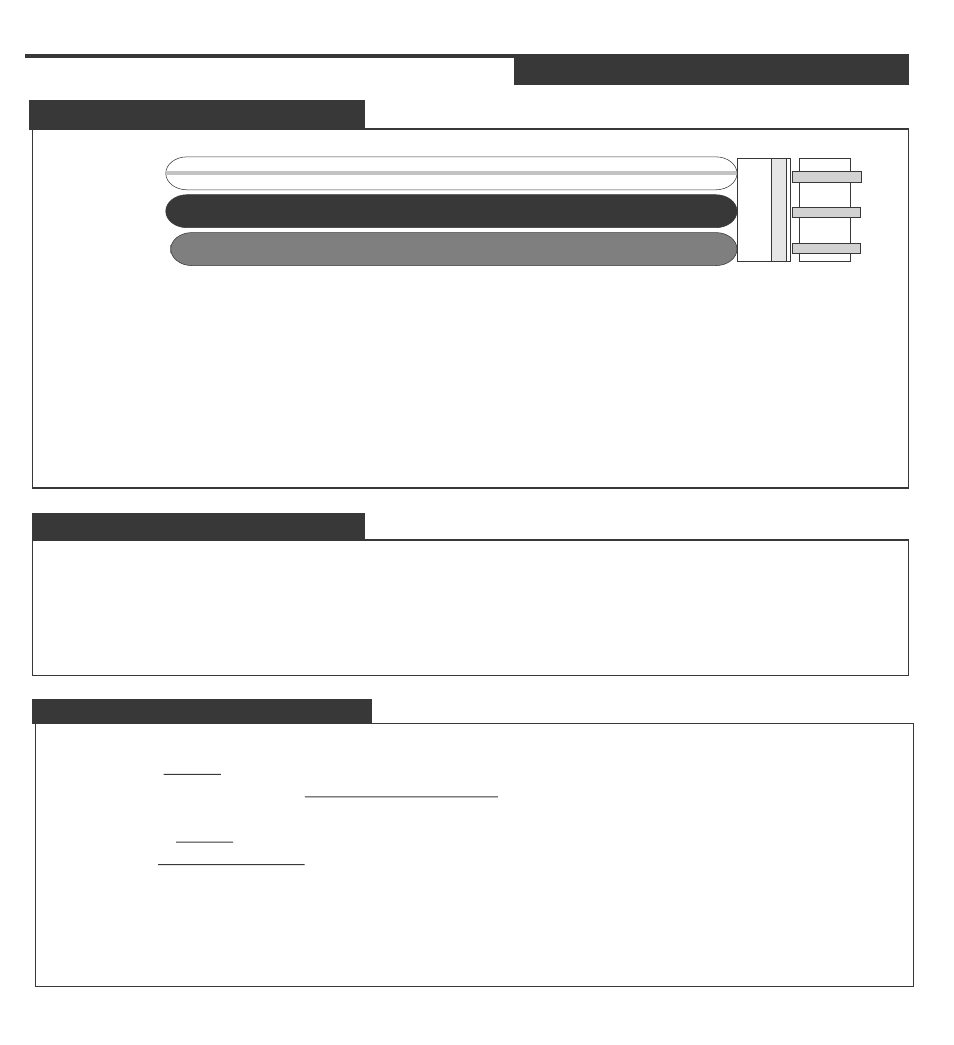

3 PIN BYPASS CONNECTOR
SYSTEM CHASSIS GROUND INPUT
RED CONSTANT 12 VOLT INPUT (20AMP)
BLACK
WHITE/VIOLET GROUND WHEN RUNNING OUTPUT
***DATA LINK CONNECTOR - FOR USE WITH COMPATIBLE BYPASS MODULES ONLY***
This connector eliminates the need to connect the lock, unlock, trunk, ignition, ground when
running and other outputs to the bypass module. These function are controlled through this
Data Link Connector.
4 PIN DATA BYPASS
SYSTEM PROGRAMMING - Menu 1
PAGE 14
INSTALL MANUAL
SYSTEM WIRING DETAILS
TRANSMITTER PROGRAMMING
1 - Cycle the Ignition Key On/Off On/Off On. (Leaving the key ON)
2) Press and HOLD the Program Switch.
(The HORN will chirp 1 time, CONTINUE to HOLD)
**If the HORN does not chirp turn the key off, then repeat step 1**
3) Continue to HOLD the Program Switch and the HORN will chirp 5 times.
4) Press the LOCK BUTTON on each of remote’s to be programmed.
*Pause for about 1 second between programming of each remote.
System can accept 4 remotes max.
5) The Park lights will flash once and the HORN will chirp once each time a new code is learned.
6) Release the Program switch and turn Ignition OFF.
