3. Connect an auxiliary power source from the power supply to the graphics cards.
2. Connect the cable from your monitors to the CrossFireX
TM
ready graphics card
installed on the PCIEX16 slot.
Monitor Cable

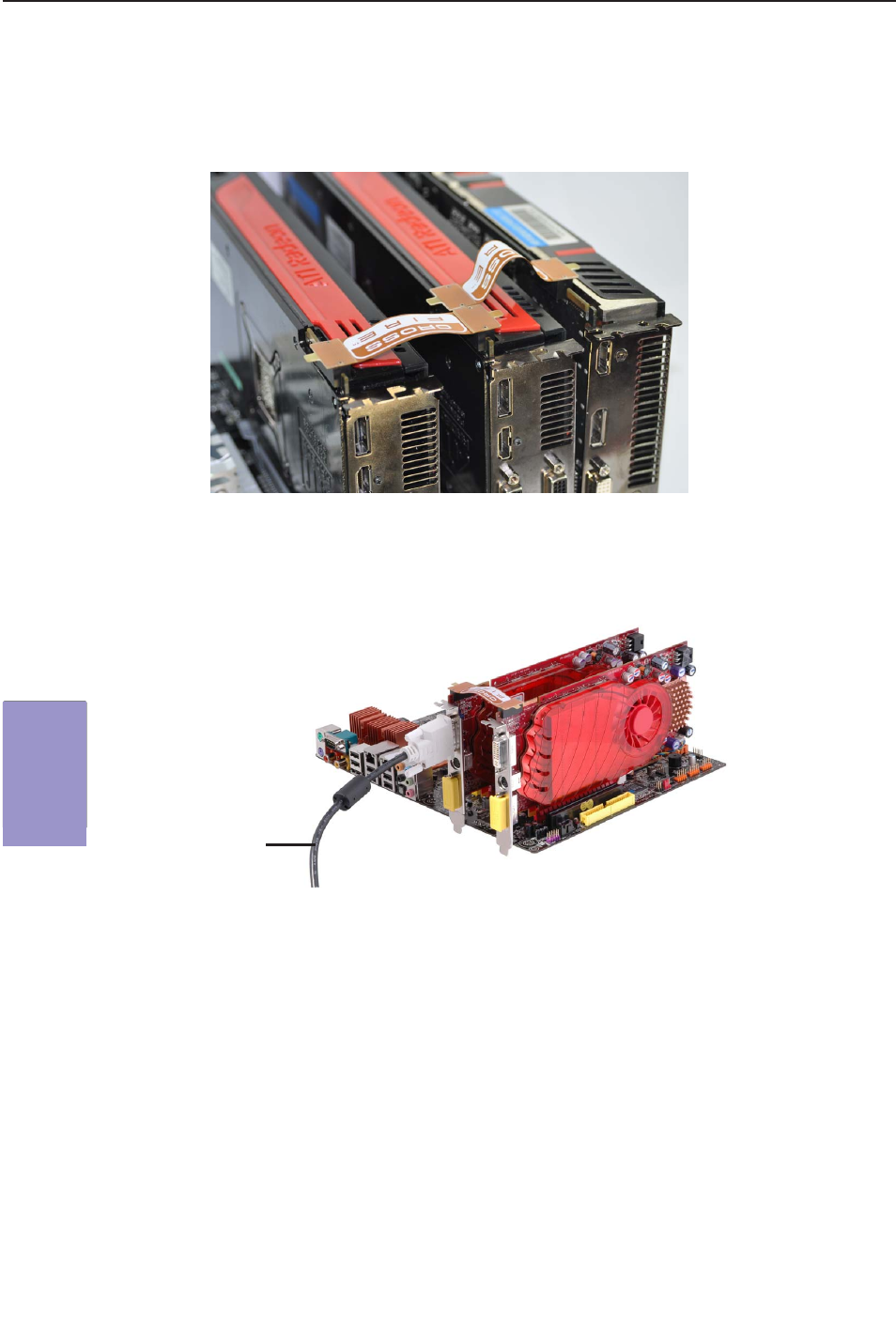

B. For 3-way configuration, two CrossFire
TM
Bridges are needed to connect the three
graphic cards.
* For reference only
