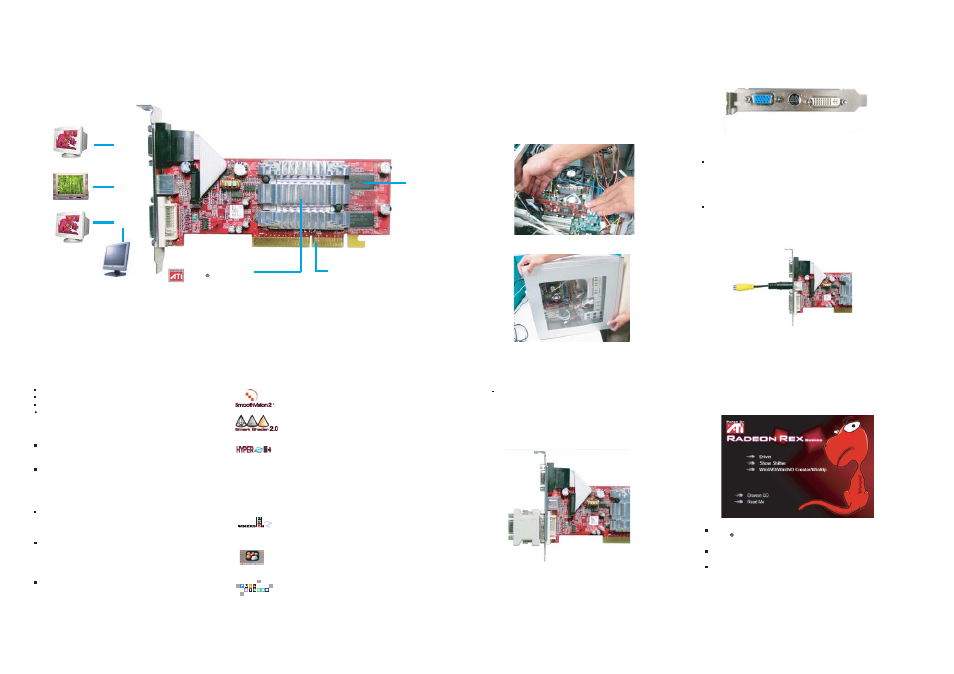

USER'S GUIDE
REX SERIES VGA CARD R9600L SERIES
D-Sub
connector
7pin S-video
& AV output
DVI-I
connector
Analog Monitor
LCD Monitor
TV
128MB High
Speed DDR
AGP 8X/4X/2X/1X
Interface RADEON 9600 SE GPU
DirectX 9.0 & AGP 8X
*This photo is for reference only, which might be somewhat different from real product.
*Reference photo is R9600L-128TD
UNIQUE ACCESSORIES
User's guide
Software jumbo pack
S-video to AV cable (optional)
DVI to D-Sub adapter (optional)
Memory
--128 MB DDR SDRAM with 64-bit data bus
--Memory type: 16x16-5 TSOP package
Output
--15pin Female standard 2nd CRT output
--DVI-I display can transfer to 1st CRT via DVI Converter
--7-pin S-Video and AV Out
AGP Interface
--Supports AGP 3.0 compliant configuration setting
--Supports AGP 8X/4X/2X interface
3D FEATURES
--SMOOTHVISION™ 2.1 technology removes jagged edge
artifacts from images to improve visual quality
--ATI's new SMARTSHADER™ 2.0 technology takes advantage
of advanced DirectX 9.0 features, enhancing reality of images
and environments in the latest 3D games
--ATI's HYPER Z™ III+ technology conserves memory bandwidth
for improved performance
--ATI's TRUFORM ™ 2.0 smoothes out the curved surface of 3D
characters, and delivers more natural looking 3D scenes.
2D FEATURES
MODEL LIST
R9600L-128TD: 128MB DDR, D-Sub, TV-out, DVI-I
INSTALLING THE CARD
To install the REX Series VGA card to your computer, please
follow the steps below:
1. Unplug the computer and remove the cover.
2. Insert the graphics accelerator card.
2-1. Locate the AGP slot on your motherboard.
2-2. Grasp the REX Series accelerator card by edges.
2-3. Align it with the empty AGP slot on the motherboard and
gently insert it into place. Make sure the card evenly and
completely seated in the slot.
3. Reconnect all cables and replace the cover.
DRIVER INSTALLATION
When users insert the driver disc in the system CD-ROM/DVD
drive, the REX Setup main menu pops out with some selection
buttons on the screen.
Driver: Install ATI REX VGA card driver, including VGA, AGP and
DirectX . Users must install the driver to make REX card work
correctly.
Show Sifter: Installing Show Shifter makes users easily establish
their multimedia center.
WinDVD / Win DVD Creater /Win RIP:Just clicking one button, you
can own and experience a full version of the Intervideo famous
utilities.
Users can also check the details in the CD by double clicking
"Browse CD" button.
--ATI's VIDEO IMMERSION™ II technology enables integration
of industry-leading digital video features, including advanced
de-interlacing algorithms for unprecedented video quality and
integrated digital TV decode capability
--FULLSTREAM™ technology reduces blocks in the internet
streaming video for sharper and crisper images
--Hardware DVD saves the expense of buying a separate
MPEG-2/DVD decoder card and motion compensation allows for
DVD decoding with minimum CPU usage
--ATI's VIDEOSHADER™, engine uses programmable pixel shaders
to accelerate video processing and provide better-looking visuals.
CONNECTORS
R9600L-128TD
TV-Out D-Sub DVI-I
TV-Out Composite/S-Video Connector
The R9600L series provides the 7pin Composite/S-video connectors
for video-out function, which allow you to connect the TV or video
input device.
D-Sub
The R9600L series provides a standard VGA connector that allows you
to connect a CRT monitor. Simply plug your monitor cable into the
VGA connector on your card, and make sure that the other end of
the cable is properly connected to your monitor.
DVI-I Connector
The R9600L series provides the monitor connection
standard from the DDWG (Digital Display Work Group),
converting analog signals into digital signals to
accommodate both analog and digital monitors.
Users can also have the second CRT.
KEY FEATURES
GPU
--Power by RADEON™ 9600 SE graphics processing
unit (GPU)
--Fully supports Microsoft Direct X 9.0 & OpenGL 2.0
for Windows 2000/ME/XP
® ®
®
Analog Monitor
