4 PIN8000/PIN8010 Operation and Maintenance Manual

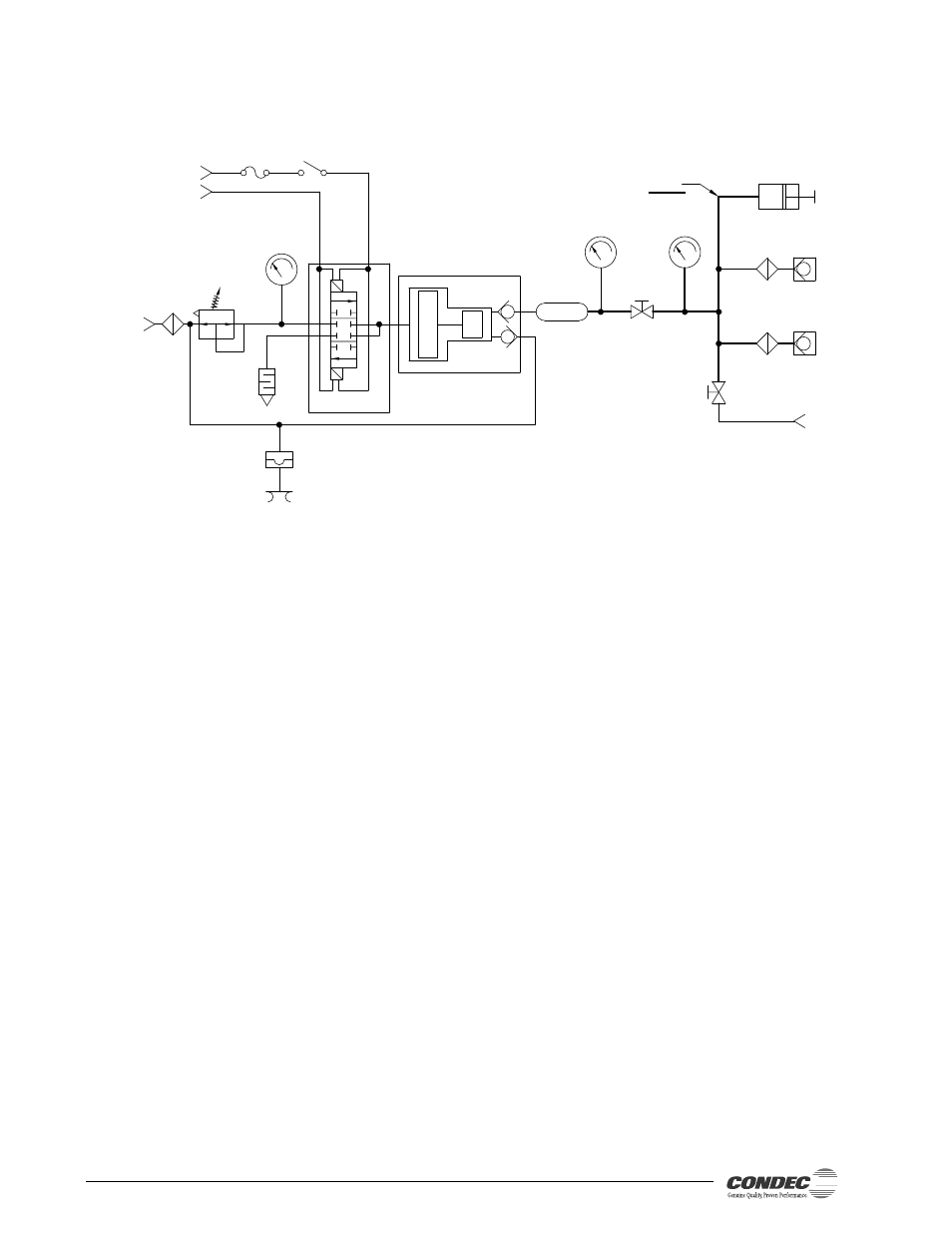

Figure 2-1 provides an overview of the PIN8000/PIN8010’s functions.
RELEIF PORT
RUPTURE DISK
±100 PSI
3000 PSI
MUFFLER
1/4 AMP
250 V POWER
VERNIER
VENT
VALVE
PRESSURE
PORT
VENT
MAX. PRESSURE OF
10,000 PSI
COARSE
ADJUSTMENT
INLET PORT
2,000 PSIG
MAX.
7 MICRON
FILTER
REGULATOR
0-1000 PSIG
OUTPUT
POWER INPUT
PIN8000A[]
120 VAC
PIN8000B[]
220 VAC
REGULATED
PRESSURE
GAUGE
3-WAY
SOLENOID VALVE
BOOSTER PUMP
10:1 RATIO
ACCUMULATOR
2.5 CU IN.
ACCUMULATOR
PRESSURE
GAUGE
OUTPUT
PRESSURE
GAUGE
OUTPUT (TEST) PORT
(QUICK DISCONNECT)
20 MICRON
FILTER
OUTPUT (TEST) PORT
(QUICK DISCONNECT)
20 MICRON
FILTER
Figure 2-1. PIN8000/PIN8010 Flow Diagram
