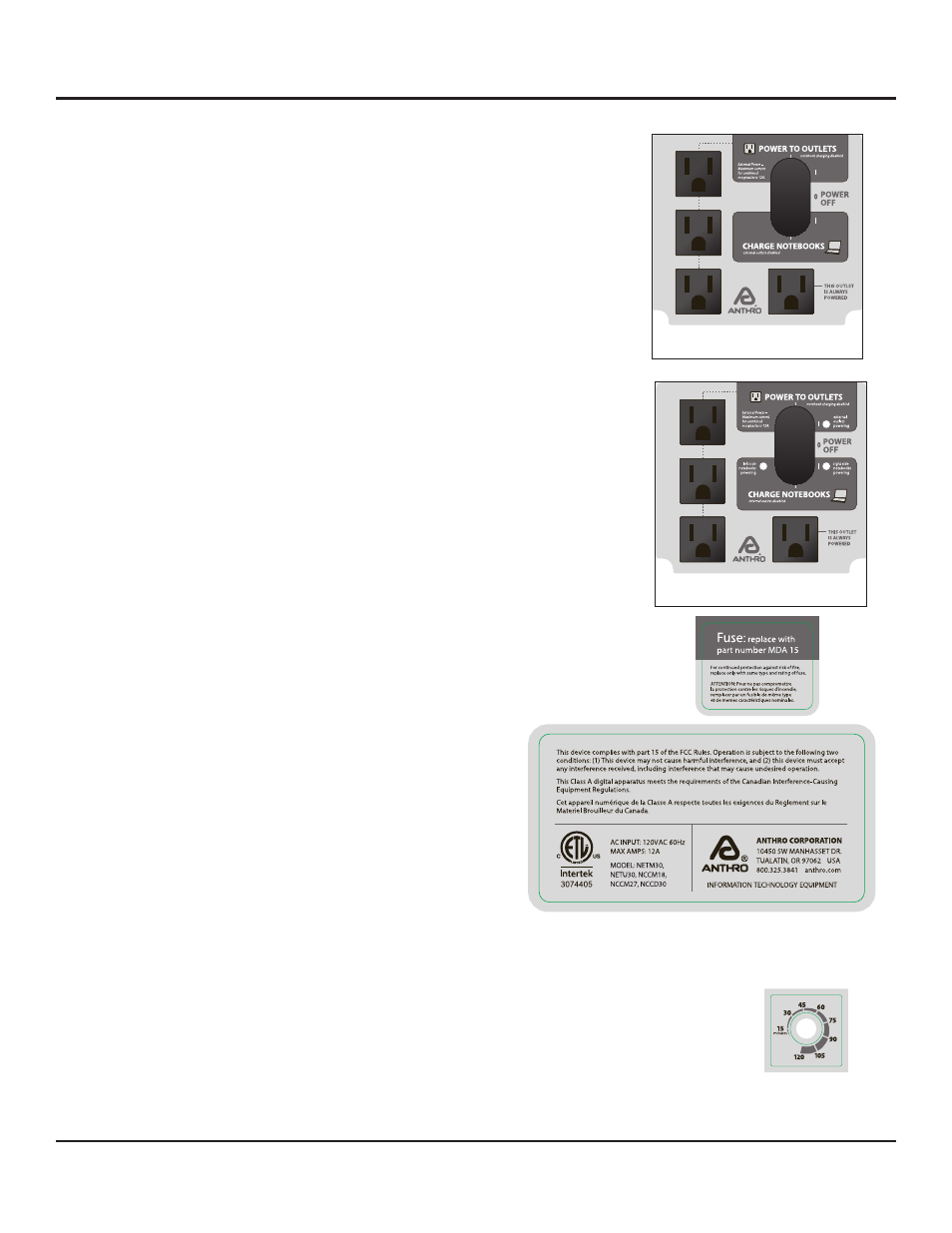

THE POWER SYSTEM
External Power
NCC Carts come with four power receptacles on the back of the cart. The
receptacle located under the switch is always on. As long as the cart is
plugged in, this receptacle receives power. The three external receptacles
receive power when the switch is up EXTERNAL POWER position.
When the switch is up and the external receptacles receive power, the inter-
nal receptacles do not receive power.
Internal Power
When the switch is in the down CHARGE position, power is directed inside the
cart to the receptacles at each shelf to charge your laptops.
When the switch is down and the internal receptacles receive power, the
three external receptacles do not receive power.
Turn off the power
When the switch is in the middle OFF position, power is only available to the
receptacle under the switch. Set the switch to this position when you unplug
or plug in the cart.
PMS Black PMS Cool Grey 3C dieline
DOES NOT PRINT
PMS Cool Grey 11C
NCCD30
Position Interface Graphics
725-5081-00_RevA
Anthro Corporation
10450 SW Manhasset Dr.
Tualatin, OR 97062
Phone: 503.691.2556
Fax: 503.691.2409
Fuses
The standard NCC carts (20-unit and 30-unit) use MDA 15
fuses. For continued protection against risk of fire, replace
only with this fuse.
20-unit Cart
When set to down CHARGE position, the 20-unit cart’s elec-
trical system directs power to the internal power receptacles.
18-unit, 27-unit, and 30-unit Carts
When set to the down CHARGE position, these carts’ electrical system directs power to one side of the cart at a
time to reduce the cart’s power draw. Indicator lights on each side of the switch tell you which side of the cart is
receiving power, and a timer controls the length of each charging cycle. The timer cycle is set at 25 minutes when
the cart leaves the factory.
The timer control is located on the back of the cart at the bottom left of the power column.
To change the cycle length, adjust the dial on the timer control. The timer range is
15-120 minutes.
18-unit, 27-unit, 30-unit Cart
