Cold Water Installations

Before deciding where to locate the unit, check to ensure the static inlet head (Fig. 8)

meets the minimum requirement of 1 metre and does not exceed the maximum
requirement of 8 metres for U1.4 and 10 metres for other models.

The static outlet head (Fig. 8) must also be within the maximum requirement of 8 metres

for U1.4 and 13 metres for other models.

Hot Water Installations

The preferred pump location is at floor level next to the hot water cylinder or a level that

is below the secondary tapping that feeds the pump. This will ensure the pump has access
to an air free water supply which is important for trouble free operation (Fig. 9).

Preferred Pump Location
(shaded area). Pump at
a level below the cylinder
draw off tapping.

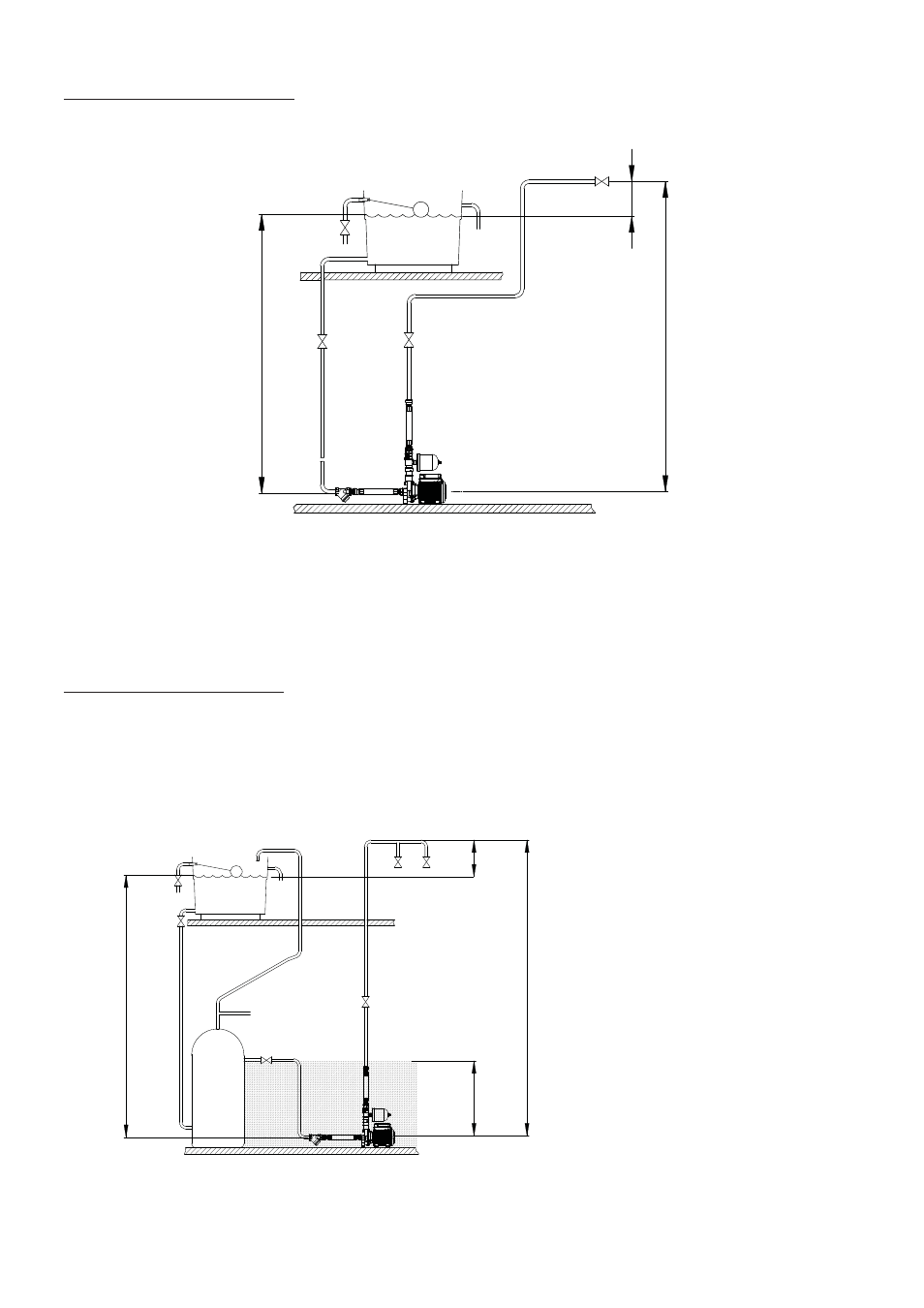

Fig. 8

Max. inlet head

10

m (

8

m for U1.4)

Min. inlet head

1

m

Max. inlet head

10

m (

8

m for U1.4)

Min. inlet head

1

m

Max. outlet head

13

m (

8

m for U1.4)

Max. outlet head

13

m (

8

m for U1.4)

Negative

head

Negative

head

Preferred

area

Fig. 9
