Stuart Turner Floating Switches - Manual

Installation:

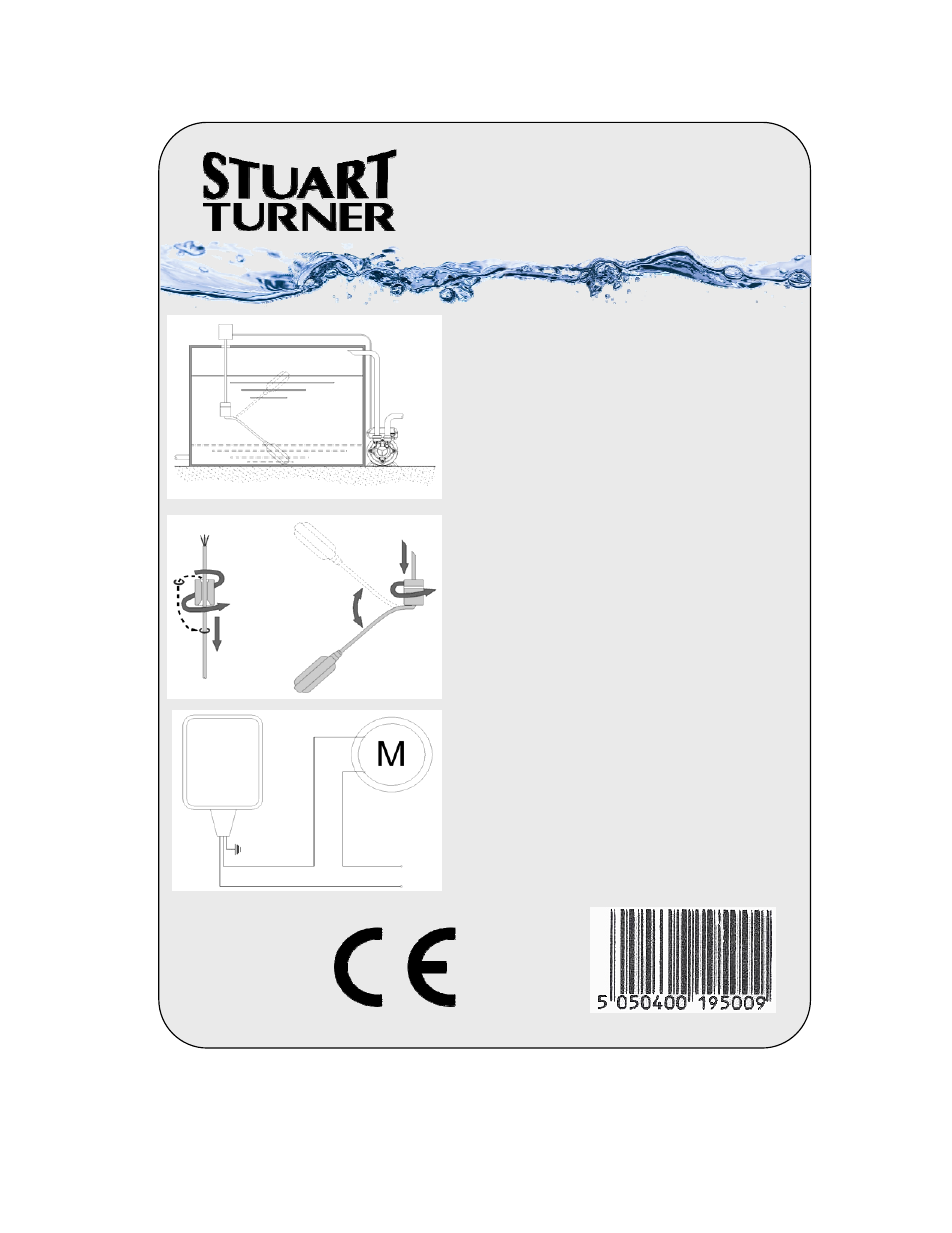

To ensure the efficient function of the switch it is
necessary to fix the electric cable inside the tank or
well as illustrated in fig: 1.
The length of the cable section between the Pivot
Point (counterweight) and the float will determine
the length of time the pump runs between starting
and stopping
The switch must be free from obstructions within
the area of the float arc.
No joins should be made to the cable that may
become immersed in water.
Height Counterweight Installation
For correct counterweight installation refer to the
procedure as illustrated in fig: 2.
1. Insert the cable into the counterweight, from the
conical shaped end, turning it as shown. This will
result in the detachment of the plastic ring inserted
in the mouth (if required aid detachment by using a
screwdriver) Place the ring at the point of the cable
where the counterweight is to be fixed.
2. Fix the counterweight on the ring using moderate
pressure and turning it as shown
Electrical Connections
Connect the float wires as shown in fig: 3
Stuart Turner,
Henley-on-Thames,
Oxfordshire,
RG9 2AD
ENGLAND
Part No:
19500
TANK FILLING
FLOAT SWITCH
3M CABLE
Fig: 3
Fig: 2
Fig: 1
BROWN
BLUE
YELLOW /
GREEN
L
N
1
2
START
STOP
