Stuart Turner Monsoon Extra U3.0 bar Single User Manual
Page 10
- 10 -
Cont ...
4. Push pipe firmly into fitting, until pencil mark is level with the top of the collet and the
pipe stop resistance is felt. Pull on the pipe to check it is secure and correctly fitted.
If you have any concern either about using push-in fittings or should the joint leak on final
test isolate the water supplies and contact Pump Assist on 0844 98 000 97.
3. Check in the mouth of the fitting that ‘O’-ring, nylon washer and collet are in
position.
Ensure the pipe is free from all score marks and deformities in the area of the
insertion depth (Fig. 14) and cut the pipe square removing all burrs and sharp
edges to prevent damage to the sealing ‘O’-ring.
2. Prior to inserting pipe into fitting mark the insertion depth on the wall of the pipe with
a soft pencil at a distance of 35 mm from the end to be inserted.

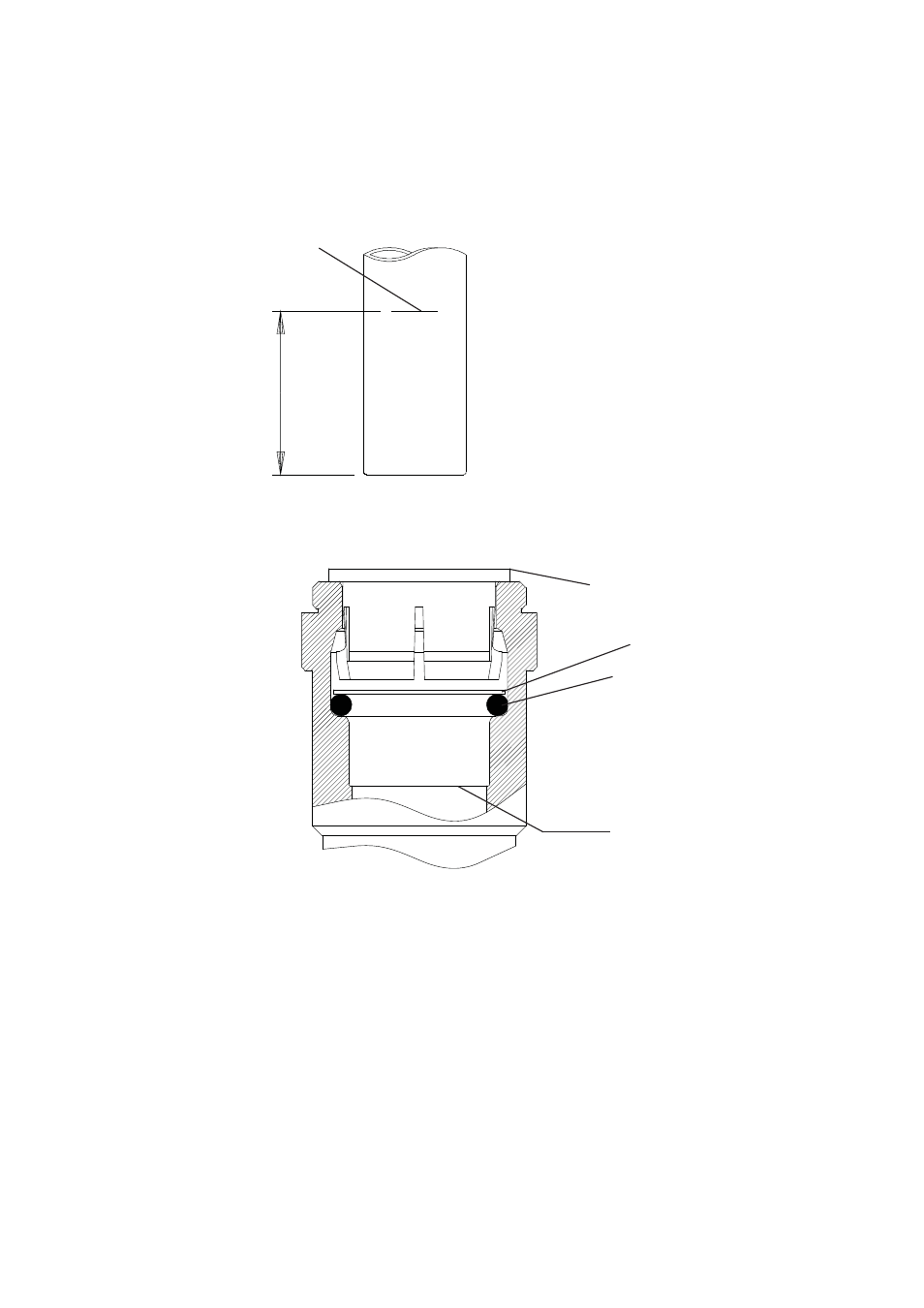

Fig. 14
22 mm Pipe
Pencil
mark
Insert depth
35 mm
Fig. 11
Pipe Stop
Washer
Collet
‘O’-Ring
