The pump should not be screwed down, ensure anti-vibration feet and flexible
hoses are used.
Pump Connections (General)

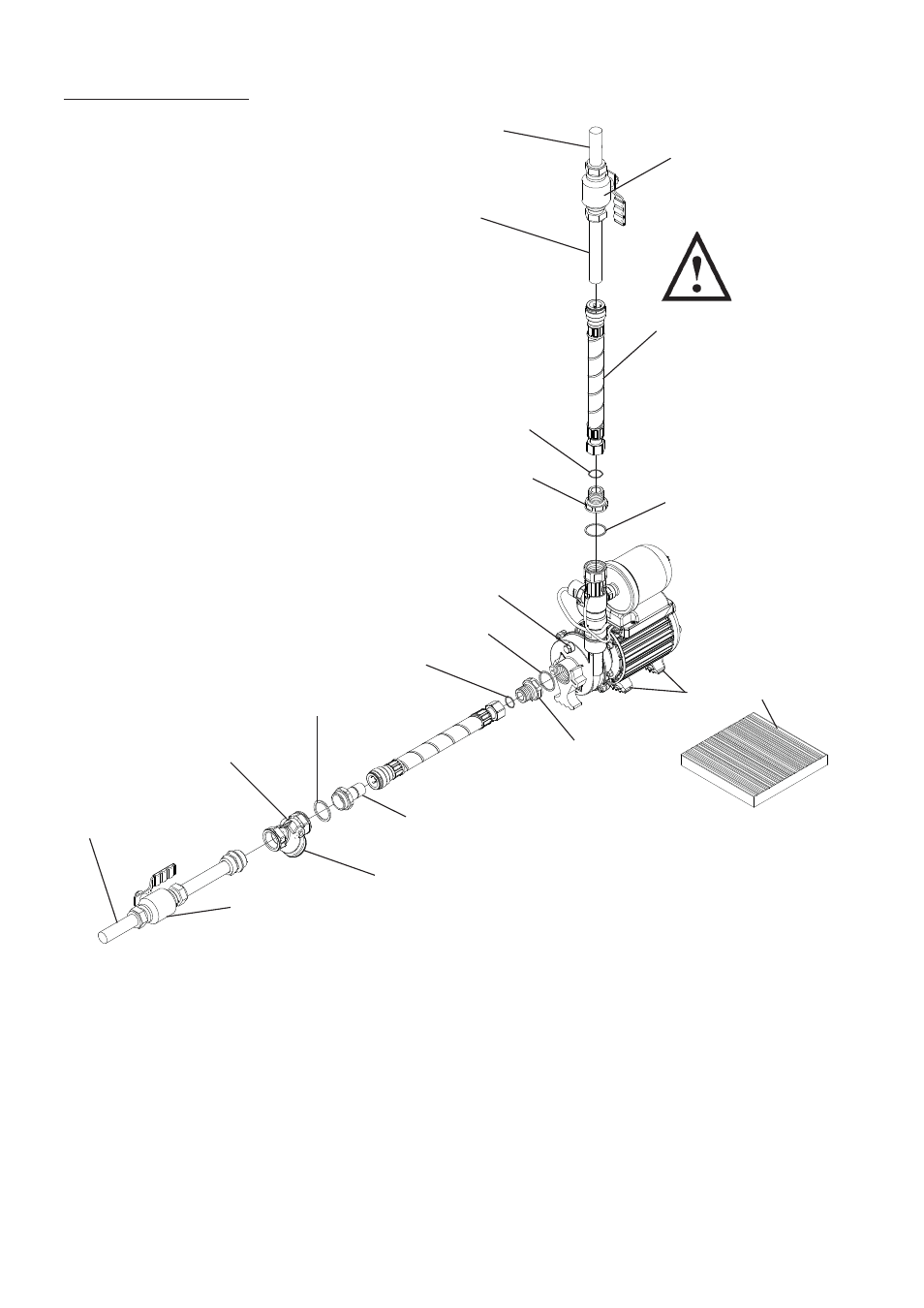

Fig. 16
22 mm copper outlet pipework (discharge).
Short 22 mm copper pipe
tails to connect between
isolating valve and flexible
pipes. Ensure all burrs
are removed prior to
installation into push-in
connectors. Tube must be
fully pushed home into the
flexible push-in connector.
22 mm flexible
pipes with push-in
connections.
Ensure that
connections are
fully pushed home into pump
head and that hoses are kept as
straight as possible (Do not kink
or twist the hose).
In the case of horizontal feeds
use a 22 mm John Guest stem
elbow (not supplied). Do not
bend the hose more than 30°
as they may become damaged,
transmit noise or leak.
22 mm isolating valve and
fittings (not supplied).
To allow easy pump
service.
Sealing washer.
G1 M - G ¾ M
connector
Priming plug.
‘O’-Ring/sealing
washer.
Sealing washer.
Sealing washer.
1 ” Inlet ‘Y’ type
strainer.
28 mm copper
inlet pipework
(suction).
28 mm isolating
valve and fittings
(not supplied).
Filter plug
(removal of this plug
enables internal gauze
filter to be cleaned).
22 mm tailend x 1 ”
male adaptor.
G1 M - G ¾ M
connector
(Note on U4.5 bar
pump this fitting
cannot be removed.)
Anti-vibration foot/pad
Sealing washer.
