STEP 5 ELECTRICAL INSTALLATION

WARNINGS:

The electrical installation must be carried out in accordance with the

current national electrical regulations and installed by a competent

person.

In the interests of electrical safety a 30 mA residual current device

(R.C.D.) should be installed in the supply circuit. This may be part of

a consumer unit or a separate unit.

Before starting work on the electrical supply ensure power supply is

isolated.

This appliance must be earthed.

The motor and wiring must not be exposed to water.

Do not allow the supply cord to contact hot surfaces, including the

motor shell, pump body or pipework. The cord should be safely

routed and secured by cable clips.

The motor fitted to this pump is suitable for a 230/1/50Hz supply. It is thermally protected

by an integral auto resetting thermotrip for your safety and rated for the duty listed in the
technical specification section.

Electrical Connection

The motor is provided with a factory fitted supply cord. This must be permanently

connected to the fixed wiring of the mains supply. Means for disconnection must be
incorporated in the fixed wiring in accordance with the wiring rules.

A suitable method of connection would be via a double pole switched, fused connection

unit complying with BS 1363-4, protected with a fuse (see fuse section).

The connection unit should be mounted in an easily accessible position and should be

labelled if confusion is possible, to allow easy identification of the pump isolating switch.

Earthing

This appliance must be earthed via the supply cord, which must be correctly connected

to the earth point located in the terminal box.

Copper or metallic pipework must have supplementary earth bonding where the

continuity has been broken by flexible hoses or plastic components. Adjacent suction and
delivery pipes should be fitted with earthing clamps to BS 951 and connected with earthing
wire size 4 mm² (Fig. 17).

Certain installations may require additional earthing arrangements such as equipotential

bonding. Reference should be made to the relevant regulations concerning this subject to
ensure compliance.

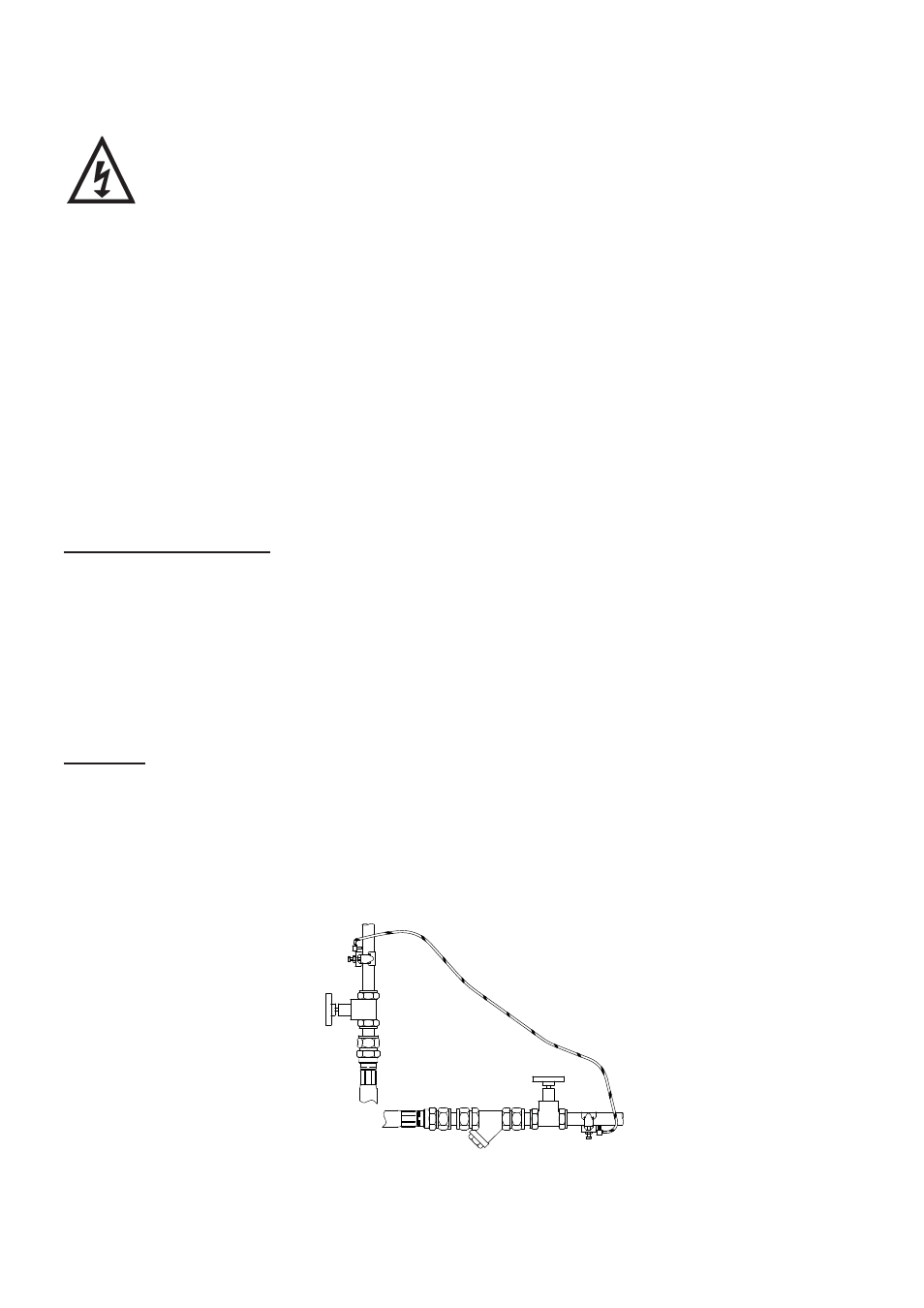

Fig. 17

Diagram of
earth continuity
connections
