Page 6

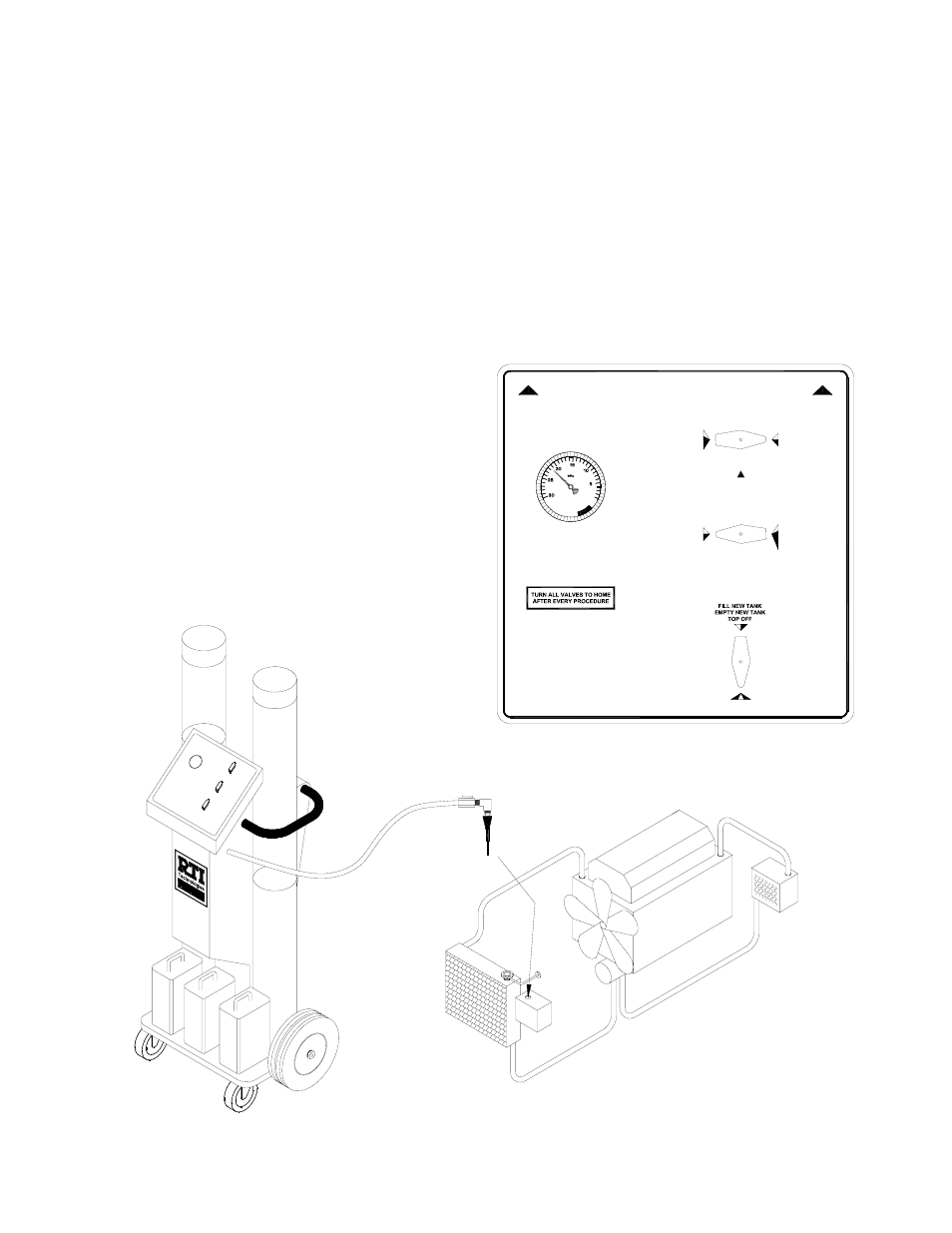

Waste Coolant
Overflow
Clear Hose
Tank
New Coolant
Tank
Cone Adapter
Adapter Hose
Radiator
Valve
Pump
Water
Block
Engine
Heater
Core
Empty Radiator
1. Run the vehicle with the heater turned on to bring the engine to operating temperature. Turn
the engine off.
2. Turn all panel valves to the Home Position as shown on page 4.
3. Connect shop air to VCX Shop Air Coupler.
4. Turn all panel valves to the Empty Radiator position as shown in the illustration below. This
orientation can also be obtained by positioning the panel valves toward the black highlights
closest to each valve.
5. Insert the Adapter Hose into the Cone Adapter. Insert end of Adapter hose into overflow tank.
Turn the Adapter Hose Valve to the open position to withdraw the coolant.
NEW COOLANT
FILL NEW TANK
EMPTY RADIATOR
FILL RADIATOR
FILL NEW TANK
EMPTY NEW TANK
TOP OFF
VCX-1
HOME
EMPTY RADIATOR
EMPTY WASTE TANK
HOME
WASTE COOLANT
EMPTY NEW TANK
TOP OFF
EMPTY WASTE TANK
(PRESSURE)
HOME
(VACUUM)
