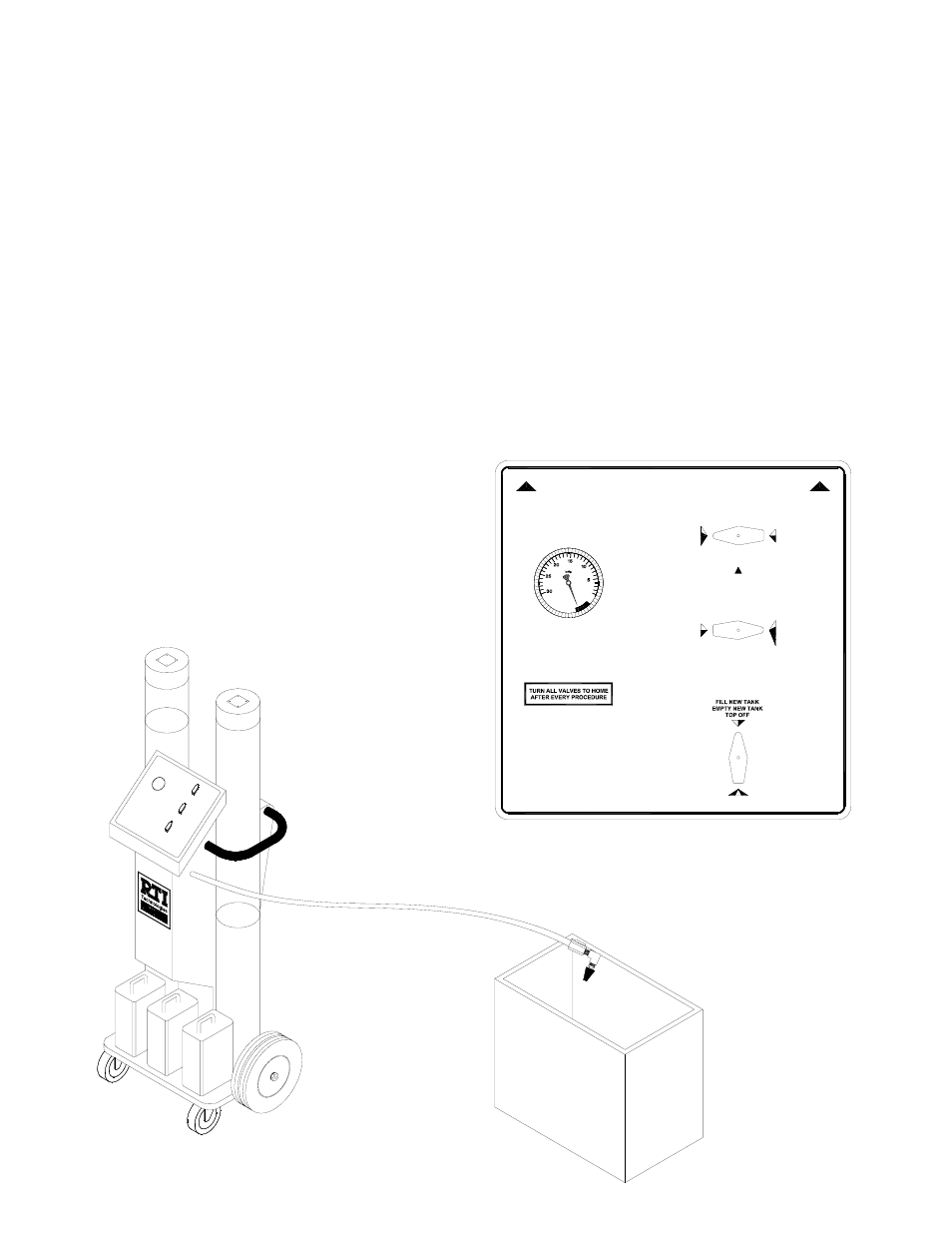

Page 12 Bulk Storage Container
Cone Adapter
Clear Hose
Valve
New Coolant
Tank
Waste Coolant
Tank
Empty New Tank
1. Turn all panel valves to the Home position.
2. Connect shop air to VCX Shop Air Coupler.
3. Close Cone Adapter Valve.
4. Turn all panel valves to the Empty New Tank position shown in the illustration below. This
orientation can also be obtained by positioning the panel valves toward the blue highlights
closest to each valve.
5. Place the end of the clear hose into a bulk storage container and open the Cone Adapter
Valve.
6. Coolant will begin leaving the VCX from the New Coolant Tank through the clear hose. Be
cautious not to spill coolant onto the floor as the hose may “jump” when the New Coolant Tank
is nearing emptiness. Clean up any spills that may occur immediately.
7. Once the Waste Coolant Tank is empty, close the Cone Adapter Valve and turn all valves to
the Home position.
HOME
VCX-1
TOP OFF
HOME
EMPTY RADIATOR
HOME
EMPTY WASTE TANK FILL RADIATOR
FILL NEW TANK
EMPTY NEW TANK
TOP OFF
NEW COOLANT
EMPTY NEW TANK
(PRESSURE)
EMPTY WASTE TANK
WASTE COOLANT
(VACUUM)
FILL NEW TANK
EMPTY RADIATOR
