MAHLE RTI VCX-1 - Manual (Page 12)

Page 11
Cone Adapter
Bulk Waste Container
Clear Hose
Valve
New Coolant
Waste Coolant
Tank
Tank
VCX-1
HOME
TOP OFF
HOME
FILL RADIATOR
FILL NEW TANK
EMPTY NEW TANK
TOP OFF
HOME
EMPTY RADIATOR
EMPTY WASTE TANK
WASTE COOLANT
EMPTY WASTE TANK
(VACUUM) (PRESSURE)
FILL NEW TANK
EMPTY RADIATOR EMPTY NEW TANK
NEW COOLANT
Empty Waste Tank

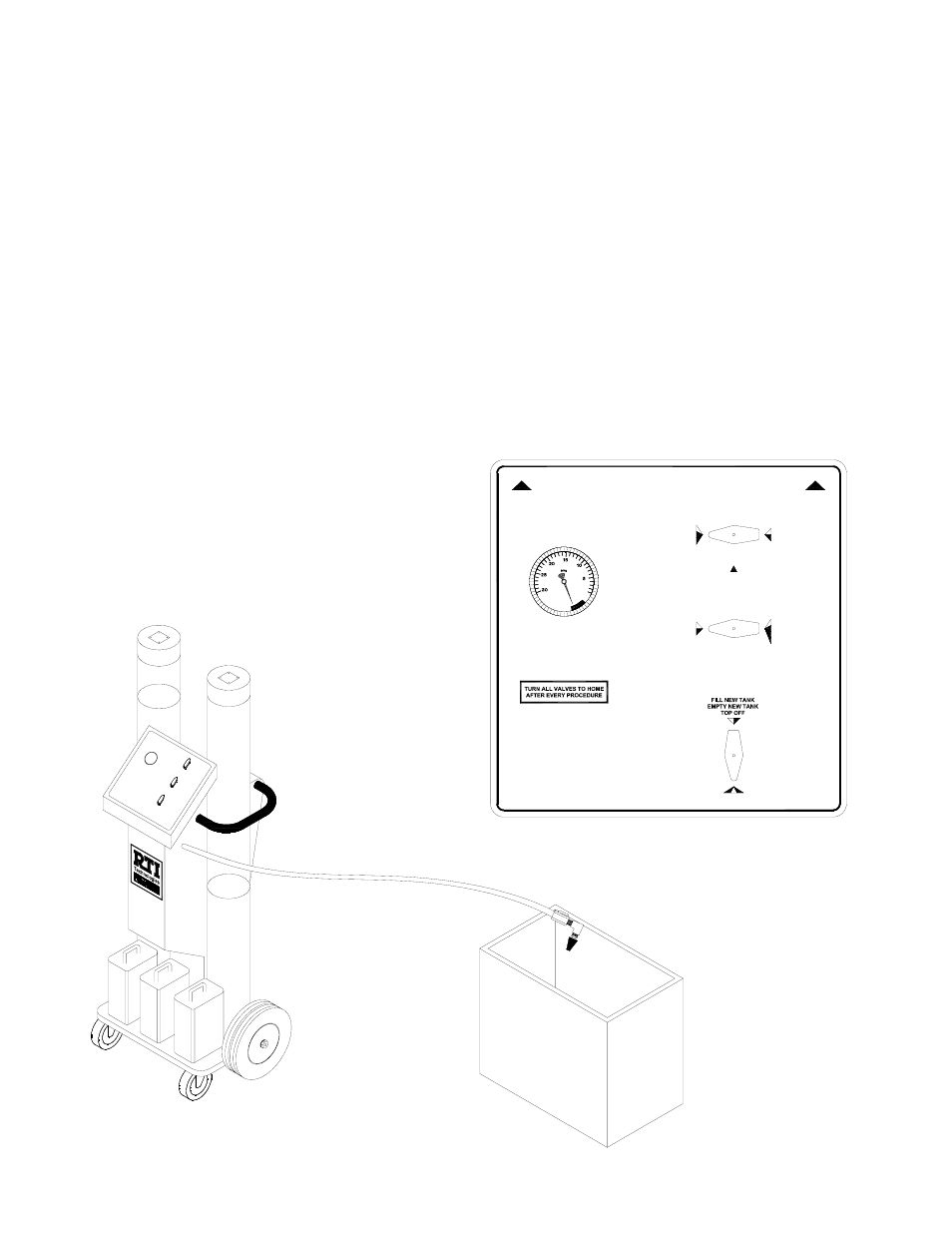

1. Turn all panel valves to the Home position.
2. Connect shop air to VCX Shop Air Coupler.
3. Close Cone Adapter Valve.
4. Turn all panel valves to the Empty Waste Tank position shown in the illustration below. This
orientation can also be obtained by positioning the panel valves toward the red highlights
closest to each valve.
5. Place the end of the clear hose into a bulk waste container and open the Cone Adapter Valve.
6. Waste coolant will begin leaving the VCX from the Waste Coolant Tank through the clear hose.
Be cautious not to spill waste coolant onto the floor as the hose may “jump” when the Waste
Coolant Tank is nearing empty. Clean up any spills that may occur immediately.
7. Once the Waste Coolant Tank is empty, close the Cone Adapter Valve and turn all valves to
the Home position.
