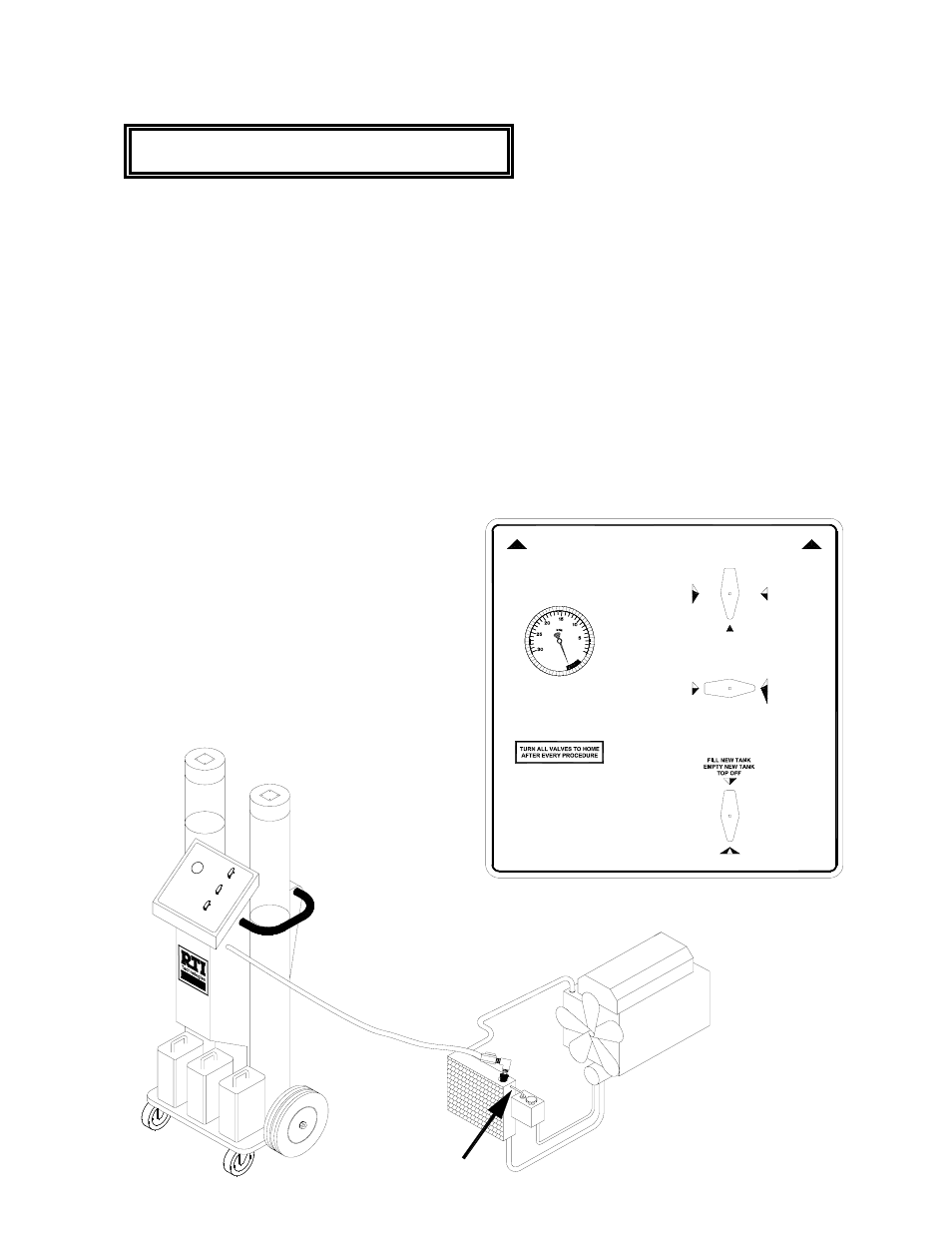

MAKE SURE ENGINE IS OFF
Hose
Radiator
Tank
New Coolant
Clear Hose
HOSE
PINCH
Overflow
Adapter Valve
Cone
Pump
Water
Engine
Block
Tank
Waste Coolant
Fill Radiator
Fill Radiator
1. Turn all panel valves to the Home position.
2. Turn all panel valves to the Fill Radiator position shown in the illustration below, this orientation
can also be obtained by positioning the panel valves toward the magenta highlights closest to
each valve. Verify that the Cone Adapter Valve is open.
3. New coolant is automatically pulled out of the VCX New Coolant Tank and into the vehicle
radiator through the clear hose.
NOTE: IF THE CONE ADAPTER BECOMES DISLODGED BEFORE YOU CAN BEGIN THIS
PROCESS YOU MUST RERUN THE EMPTY RADIATOR FUNCTION, WITHOUT
STARTING THE VEHICLE, TO REGAIN THE VACUUM NEEDED TO FILL THE
VEHICLE COOLANT SYSTEM.
4. Once the coolant stops moving through the clear hose turn all of the panel valves back to the
Home position and remove the Cone Adapter from the radiator.
5. Turn all valves to the Home position.
6. Close the Cone Adapter Valve.
