Parts identification – MAHLE RTI VCX-1 User Manual
Page 15
Page 14
INSIDE OF UNIT
12
13
14
8
11
10
9
6
1
4
2
5
7
18
20
3

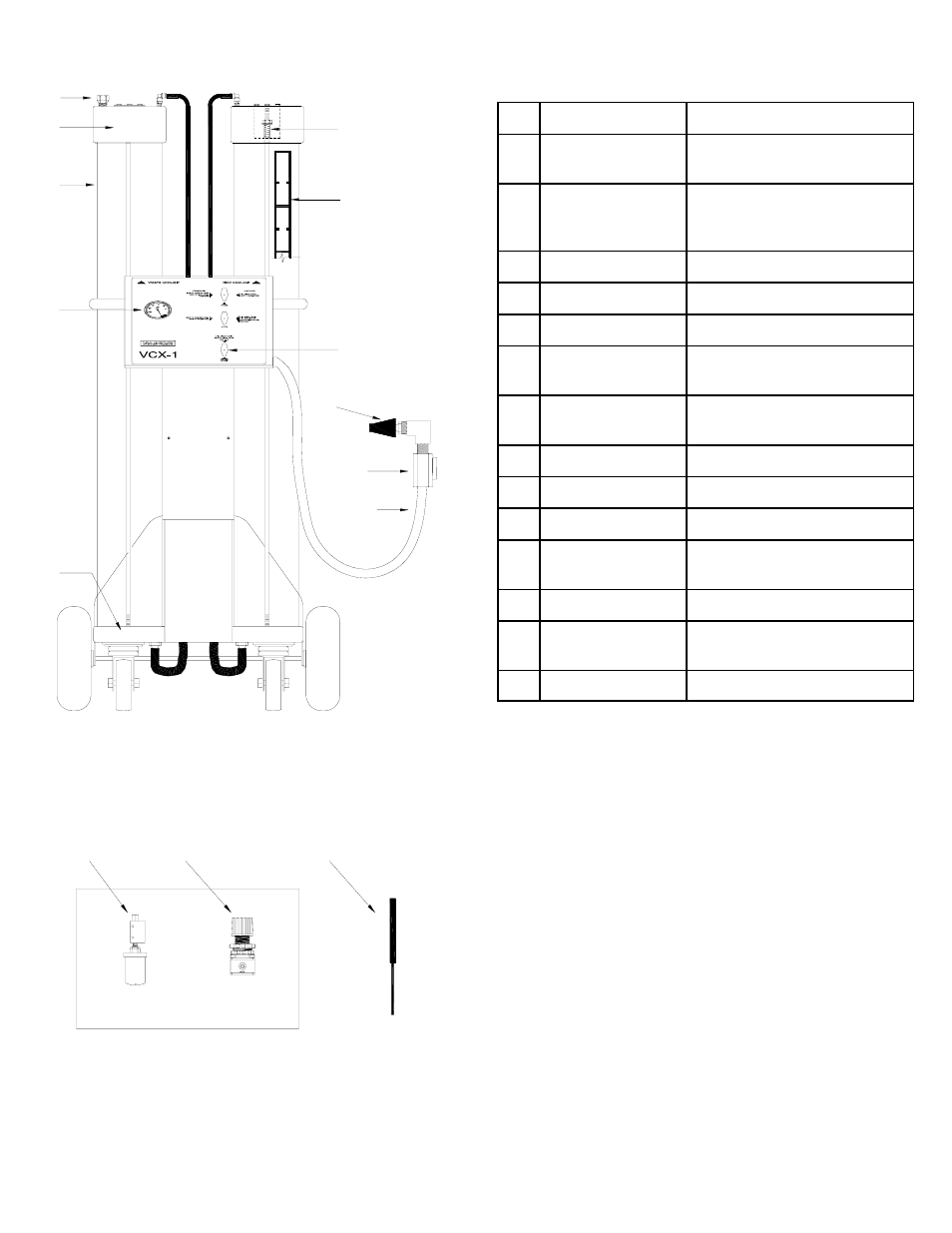

Parts Identification
P/N
Description
1
022-80115-00
Valve Relief
1/4 MPT X 1/4 FPT
2
060-81209-00
028-80229-00
028-80228-00
Top Cylinder Plate
Large O-Ring
Small O-Ring
3
040-80196-00
Compression Spring
4
370-80085-00
Acrylic Tube with Decal
5
035-80880-00
Tank Level Decal (VCX-1)
6
026-80238-00
Vacuum Gauge
30"-0 PSIG
7
022-80028-00
Ball Valve 3-Way
1/4 FPT (BHD)
8
060-81215-00
Cone Plug Adapter
9
370-80109-00
Cone Adapter Valve Assy
10
370-80110-00
Clear Hose Assy
11
060-81208-00
028-80229-00
Bottom Cylinder Plate
Large O-Ring
12
026-80197-00
Vacuum Pump (Venturi)
13
022-80116-00
Pressure Regulator
1/4 FPT X 1/4 FPT (BHD)
14
370-80095-00
Adapter Hose
