2.2 Enterng Envronment Settngs
The following settings can be entered using the configurator.
• DX100P/DX200P assignments, communications settings, and login settings
• Acquisition interval settings for each DX100P/DX200P
• Port number settings (for the monitor server) as needed
• The settings can be saved
Seral Port Settngs
Procedure
1. Click the Serial Setting tab or choose View > Serial Setting from the menu bar.
The Serial Setting tab is displayed.

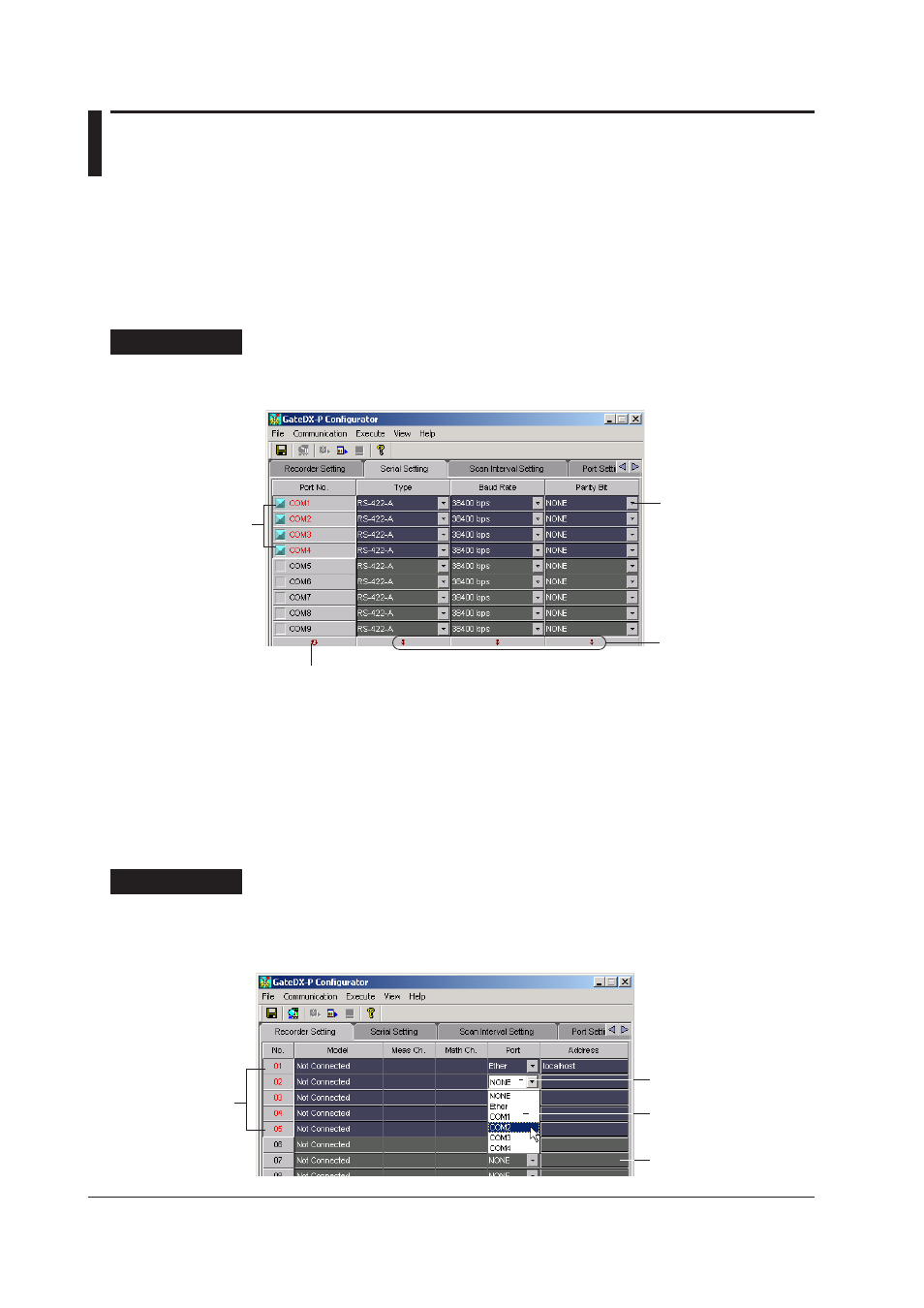

Drag to select the
desired items
Turns the selected items ON and OFF
Click to display a list
Copies the setting in the
first item of the selection
to all of the items in the
selectio
2. Enter settings for each item.
Port number: ON (blue)/OFF (gray)
Type: RS-232-C, RS-422-A/485
Baud rate: 9600,19200,38400
Parity: NONE, ODD, EVEN
Recorder Settngs
Procedure
1. Click the Recorder Setting tab or choose Vew > Recorder Settng from the
menu bar.
The Recorder Setting tab is displayed.
Drag to select the items
for automatic model
determination
Click to display a list
Only the active COM ports
(specified in serial port
settings) are displayed
Click to display the Input
Address dialog box
