Yokogawa ISC40 Inductive Conductivity Sensor - Manual (Page 24)

IM 12D8J2-E-E
24
O-ring
40.64 x 5.33
Holder
O-ring
26.57 x 3.53
Ring DN50
O-ring
40.64 x 5.33
O-ring
26.57 x 3.53
Ring DN50
Holder
88 (3.46)
Ø 50
Rd 78 x 1/6
acc. DIN 405
64 (2.52)
2" NPT
acc. ANSI B.20.1
Rd 78 x 1/6
acc. DIN 405
Ш 50
64 (2.52)
Ш 50
2" NPT
acc. ANSI B.20.1
Rd 78 x 1/6
acc. DIN 405
/PCSA
/FCSA

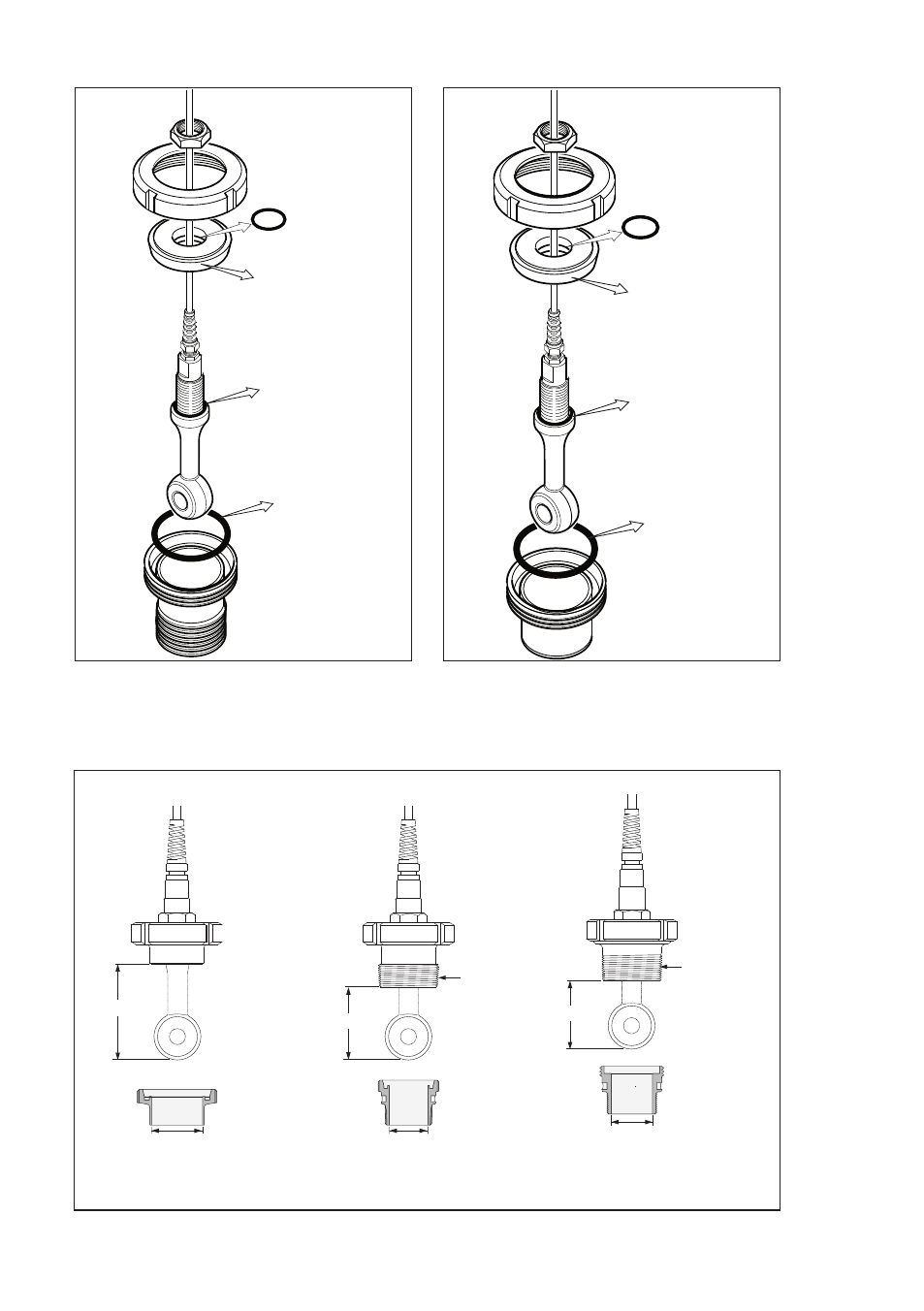

Fig 15: ISC40 sensor in screw-in
subassembly ISC40FS-SCSA
Fig 16: ISC40 sensor in weld-in
subassembly ISC40FS-SCWN
9.3 Dimensions ISC40FS
Fig 17: Dimensions ISC40FS with sensor installed (dimensions in mm (inches))
/SCSA /SCWN
