5 WIRING ISC40 SENSOR
The ISC40 sensor is provided with a fixed cable. The connections of this dual coax cable
and the Yokogawa Inductive Conductivity analyser are given in table 1.
Table 1: Definition cable and analyzer
Cable wire color ISC analyser terminal # Signal description
Red 11 Temperature
Blue 12 Temperature
Yellow 14 Shield
White 15 Primary coil
White (shield) 16 Primary coil
Brown 13 Secondary coil
Brown (shield) 17 Secondary coil

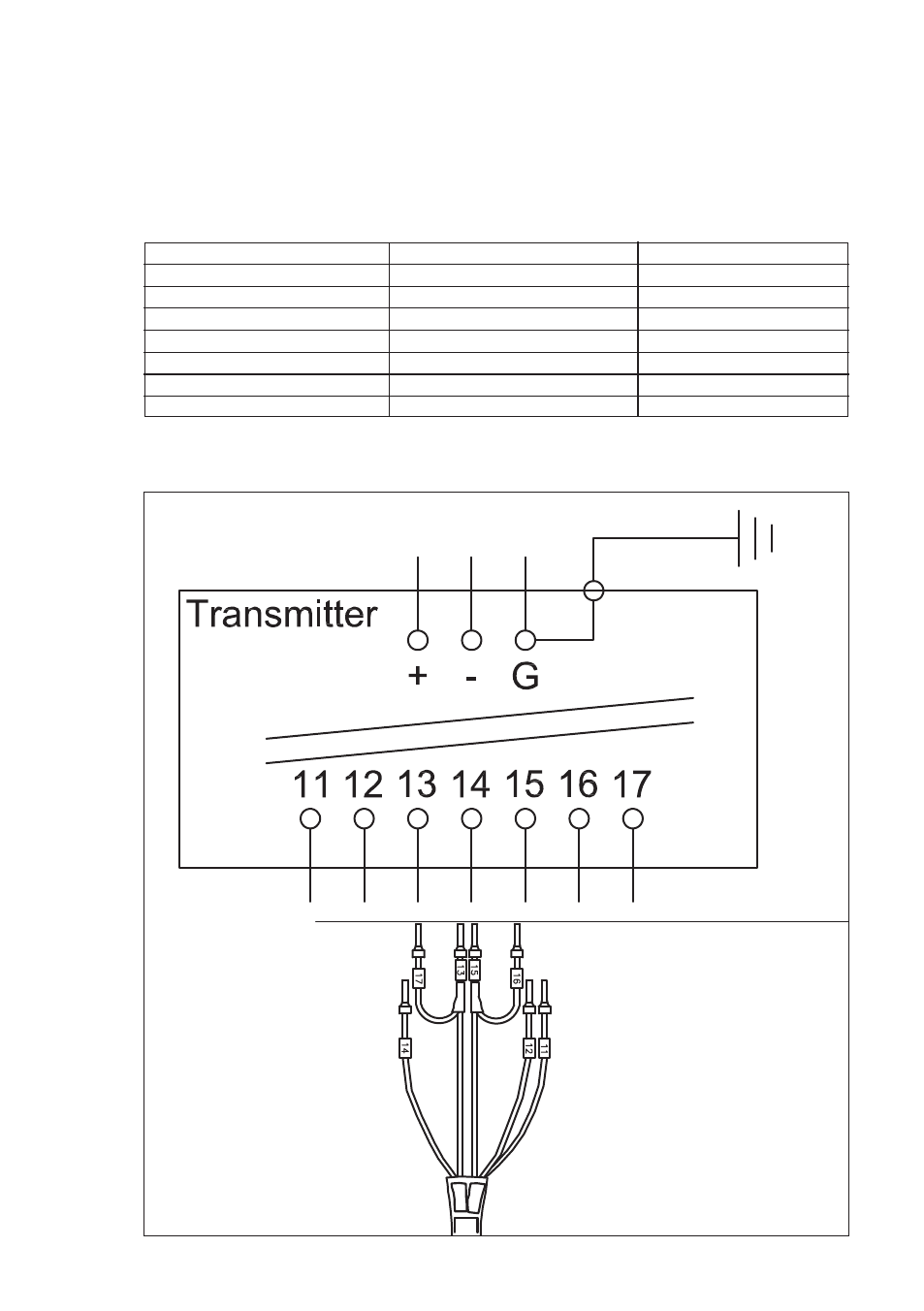

ISC40 sensor
terminals 11-17.
Maximum cable
length: 50m.
