IM 01C22K01-01E 2-1
2. HANDLING CAUTIONS
2. HANDLING CAUTIONS
This chapter describes important cautions regarding
how to handle the transmitter. Read carefully before
using the transmitter.
The EJA Series pressure transmitters are thoroughly
tested at the factory before shipment. When the
transmitter is delivered, visually check them to make
sure that no damage occurred during shipment.
Also check that all transmitter mounting hardware
shown in Figure 2.1 is included. If the transmitter was
ordered without the mounting bracket, the transmitter
mounting hardware is not included. After checking the
transmitter, repack it in the way it was delivered until
installation.
F0201.EPS
Mounting bracket
(L type)
Mounting bracket
(Flat type)
U-bolt nut
U-bolt nut
U-bolt
U-bolt
Transmitter
mounting bolt
Transmitter
mounting bolt

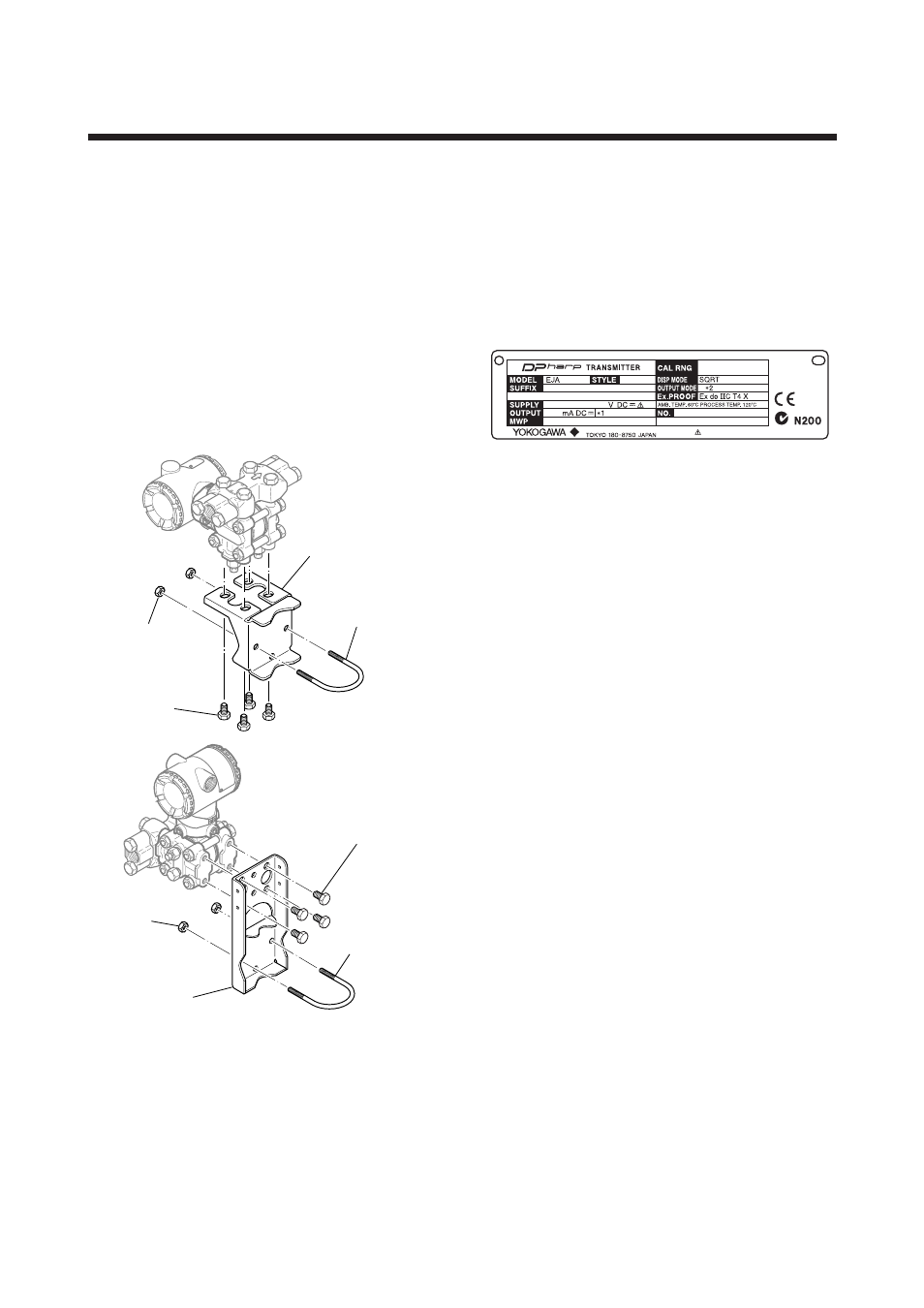

Figure 2.1 Transmitter Mounting Hardware
2.1 Model and Specifications
Check
The model name and specifications are indicated on the
name plate attached to the case. If the reverse operat-
ing mode was ordered (reverse signal), ‘REVERSE’
will be inscribed in field *1; if square root display
mode was ordered, ‘SQRT’ is inscribed in field *2.
F0202.EPS
: Refer to USER'S MANUAL
Figure 2.2 Name Plate Example of TIIS Flameproof Type
2.2 Unpacking
When moving the transmitter to the installation site,
keep it in its original packaging. Then, unpack the
transmitter there to avoid damage on the way.
2.3 Storage
The following precautions must be observed when
storing the instrument, especially for a long period.
(a) Select a storage area which meets the following
conditions:
• It is not exposed to rain or water.
• It suffers minimum vibration and shock.
• It has an ambient temperature and relative
humidity within the following ranges.
Ambient temperature:
–40 to 85 °C without integral indicator
–30 to 80 °C with integral indicator
Relative humidity:
5% to 100% R.H. (at 40 °C)
Preferred temperature and humidity:
approx. 25 °C and 65% R.H.
(b) When storing the transmitter, repack it as nearly as
possible to the way it was packed when delivered
from the factory.
(c) If storing a transmitter that has been used, thor-
oughly clean the chambers inside the cover flanges
and integral flow orifice unit, so that no measured
fluid remains in it. Also make sure before storing
that the pressure-detector and transmitter section are
securely mounted.
