IM 01C22K01-01E 10-2
10. GENERAL SPECIFICATIONS
HART
Communication Distance;
Up to 1.5 km (1 mile) when using multiple twisted
pair cables. Communication distance varies
depending on type of cable used.
Use the following formula to determine cable
length for specific applications:
L= -
65 x 10 6
(R x C)
(C
f
+ 10,000)
C
Where:
L = length in meters or feet
R = resistance in Ω (including barrier resistance)
C = cable capacitance in pF/m or pF/ft
C
f
= maximum shunt capacitance of receiving
devices in pF/m or pF/ft
᭹ Physical Specifications
Wetted Parts Materials:
Diaphragm, Cover flange, Process connector,
Manifold, Orifice, and Drain/Vent Plug;
See ‘Model and Suffix Codes’
Capsule Gasket;
Teflon-coated SUS316L
Process Connector Gasket;
PTFE Teflon
Non-wetted Parts Materials:
Bolting;
SCM435 or SUS630
Housing;
Low copper cast-aluminum alloy with polyurethane
paint (Munsell 0.6GY3.1/2.0)
Degrees of Protection;
IP67, NEMA4X, JIS C0920 immersion proof
Cover O-rings;
Buna-N
Data plate and tag;
SUS304 or SUS316 (option)
Fill Fluid;
Silicone or Fluorinated oil (option)
Weight:
5.6 kg (12.3 lb) without mounting bracket
Connections:
Refer to the ‘Model and Suffix Codes’ to specify
the process and electrical connection type.
᭛”>
Tag Number
Output Mode
Display Mode
Operation Mode
Damping Time
Constant
As specified in order *1
‘Linear’ unless otherwise specified in order
‘2 sec.’
‘Normal’ unless otherwise specified in order
‘Square root’
Calibration Range
Units
As specified in order
As specified in order
Calibration Range
Higher Range Value
Calibration Range
Lower Range Value
Selected from mmH
2
O, mmAq, mmWG,
mmHg, Pa, hPa, kPa, MPa, mbar, bar,
gf/cm
2 , kgf/cm 2 , inH
2
O, inHg, ftH
2
O, or
psi. (Only one unit can be specified)
T1003.EPS
Note 1: If Tag No. is no more than 16 alphanumeric characters (including - and ·), it will be written into
the tag plate and amplifier memory settings.
Atmospheric
pressure
-40
(-40)
0
(32)
40
(104)
80
(176)
120
(248)
1{7.5}
2.7{20}
10{75}
{mmHg abs}
100{750}
Process temperature °C (°F)
Working
pressure
kPa abs
Applicable range
F1001.EPS

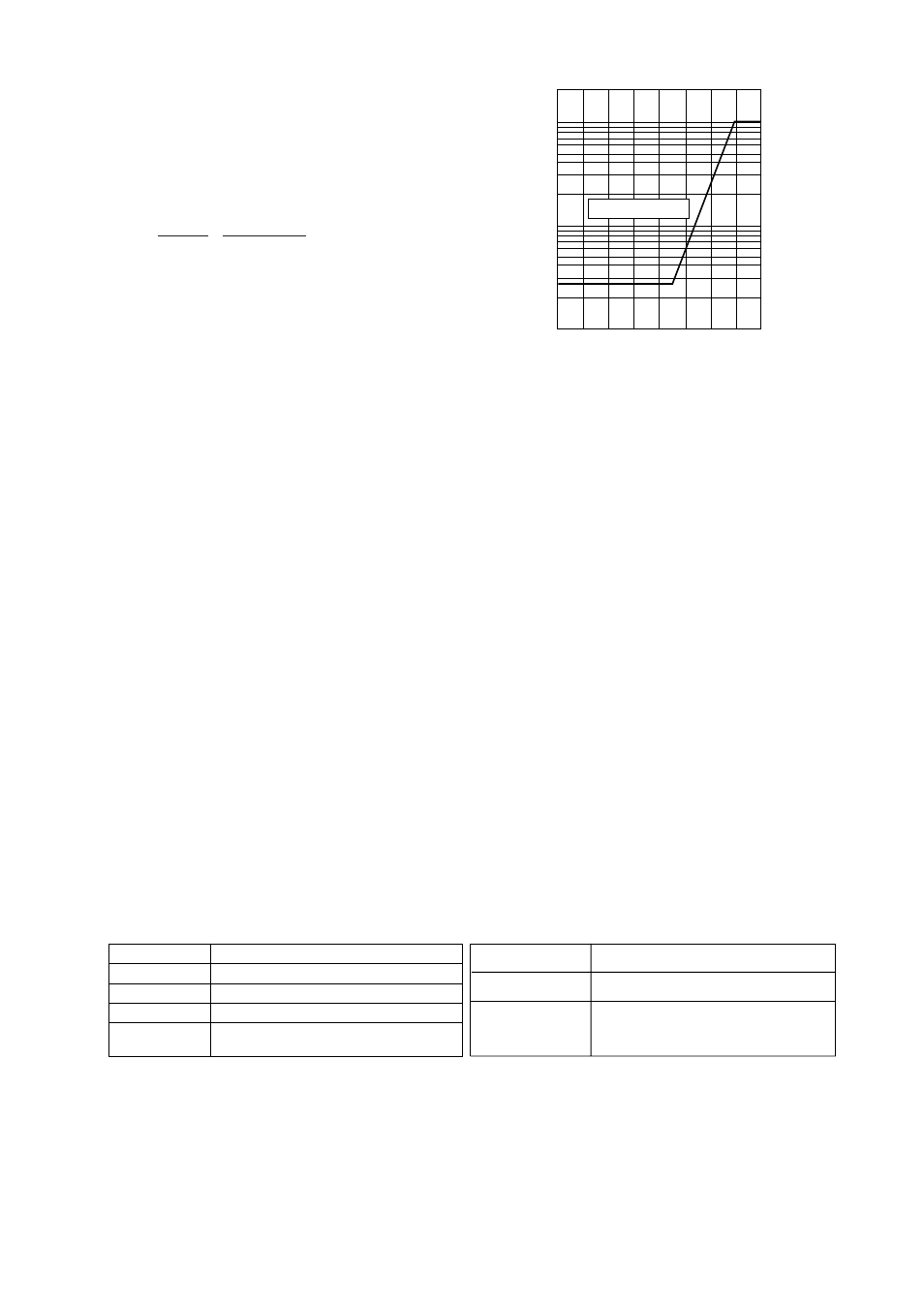

Figure 1. Working Pressure and Process Temperature
