IM 01C21B01-01E 8-9
8. BRAIN TERMINAL BT200 OPERATION
(4) Output Mode and Integral Indicator Dis-
play Mode Setup (C40: OUTPUT MODE)

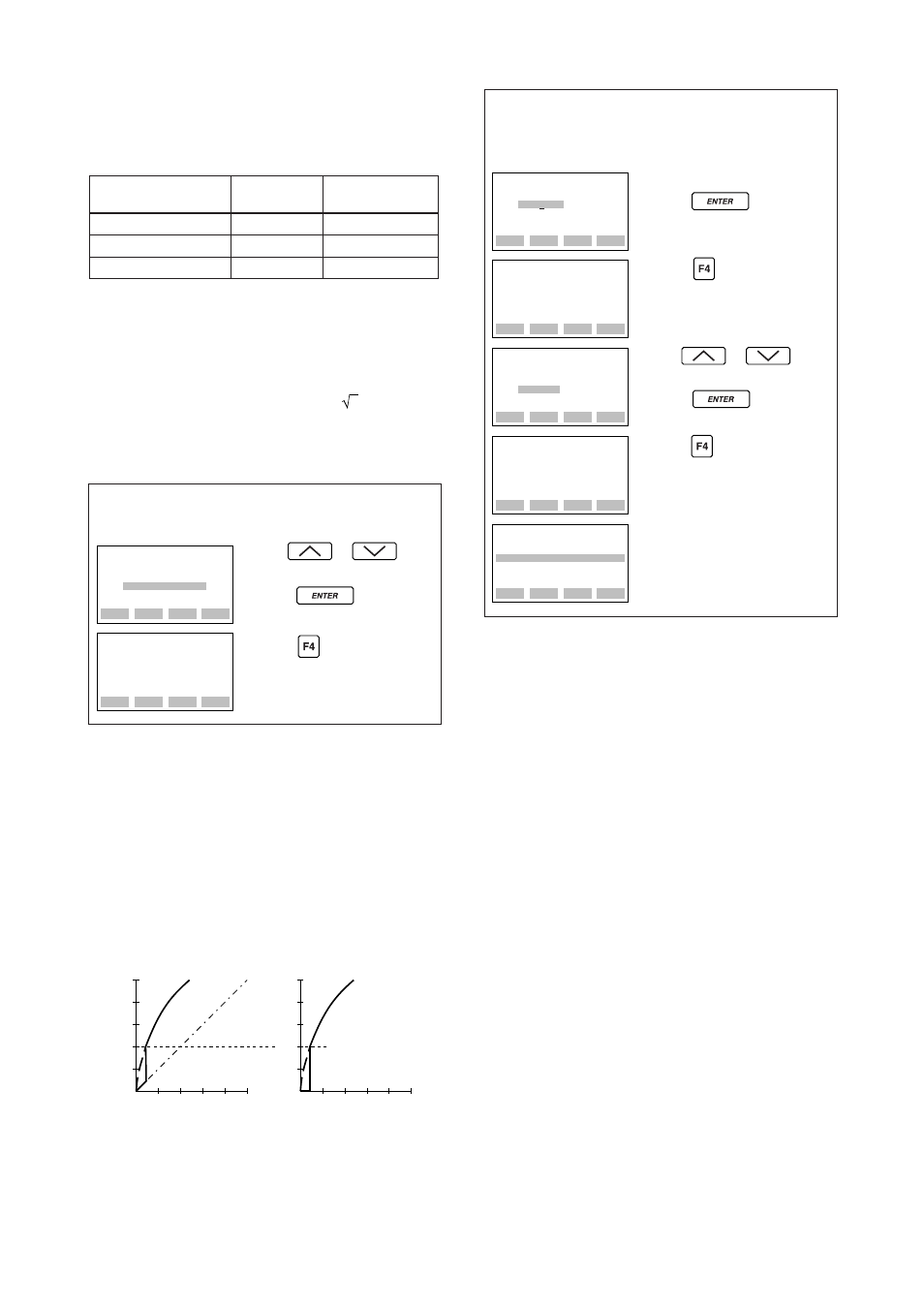

The mode setting for the output signal and the integral
indicator coordinate as shown in the table below.
BT200 Display Output Mode
Integral Indicator
Display Mode
T0808.EPS
Linear
Linear
Square root
OUT: LIN DSP: LIN
OUT: LIN DSP: SQR
OUT: SQR DSP: SQR
Linear
Square root
Square root
This mode is set as specified in the order when the
instrument is shipped. Follow the procedure below to
change the mode.
If the instrument is equipped with an integral indicator
and the display mode is “square root”, “
” is dis-
played on the integral indicator.
For details, see Chapter 3.
• Example: Set output mode to Linear and
display mode to Square root.
ESC
SET
C40:OUTPUT MODE
OUT:LIN DSP:SQR
FEED NO ESC
SET
C40:OUTPUT MODE
OUT:LIN DSP:LIN
Use the or key
to select “OUT: LIN, DSP: SQR.”
Press the key twice to
enter the setting.
Press the (OK) key.
F0816.EPS
(5) Output Signal Low Cut Mode Setup
(D10: LOW CUT, D11: LOW CUT MODE)
Low cut mode can be used to stabilize the output
signal near the zero point. The low cut point can be set
in a range from 0 to 20% of output. (Hysteresis:
±
1%)
Either “ LINEAR ” or “ ZERO ” can be selected as the
low cut mode.
(%)
50
20
0 50 (%)
Output
᭹ Low cut mode “LINEAR”
Input
(%)
50
20
0 50 (%)
᭹ Low cut mode “ZERO”
LOW CUT at 20%
Input
F0817.EPS
• Example: Change the low cut setting range
from 10% to 20%, and the low
cut mode from LINEAR to ZERO.
FEED NO OK
SET
D11:LOW CUT MODE
ZERO
Use the or key
to select “ZERO.”
Press the key twice to
enter the setting.
Press the (OK) key.
F0818.EPS
FEED NO OK
SET
D10:LOW CUT
20.0 %
ESC
SET
D11:LOW CUT MODE
LINEAR
< LINEAR >
< ZERO >
DATA DIAG PRNT ESC
PARAM
D10:LOW CUT
20.0 %
D11:LOW CUT MODE
ZERO
D20:DISP SELECT
NORMAL %
CLR ESC
SET
D10:LOW CUT
10.0 %
+ 20.0 Set “20.”
Press the key twice to
enter the setting.
Press the (OK) key.
Next, the [D11: LOW CUT MODE]
setting panel is displayed.
(6) Change Output Limits
(D15: OUT LIMIT(L), D16: OUT LIMIT(H))
The range of normal output is preset at the factory
from –5.0% to 110.0% unless otherwise specified or
conditioned, and the output is limited with these upper
and lower values. This output range can be changed,
for example, to meet the requirements of NAMUR,
within the settable range. Set the lower limit with
D15: OUT LIMIT(L) and upper limit with D16: OUT
LIMIT(H).
Settable range : –5.0 to 110.0 (%)
Lower limit < Upper limit
