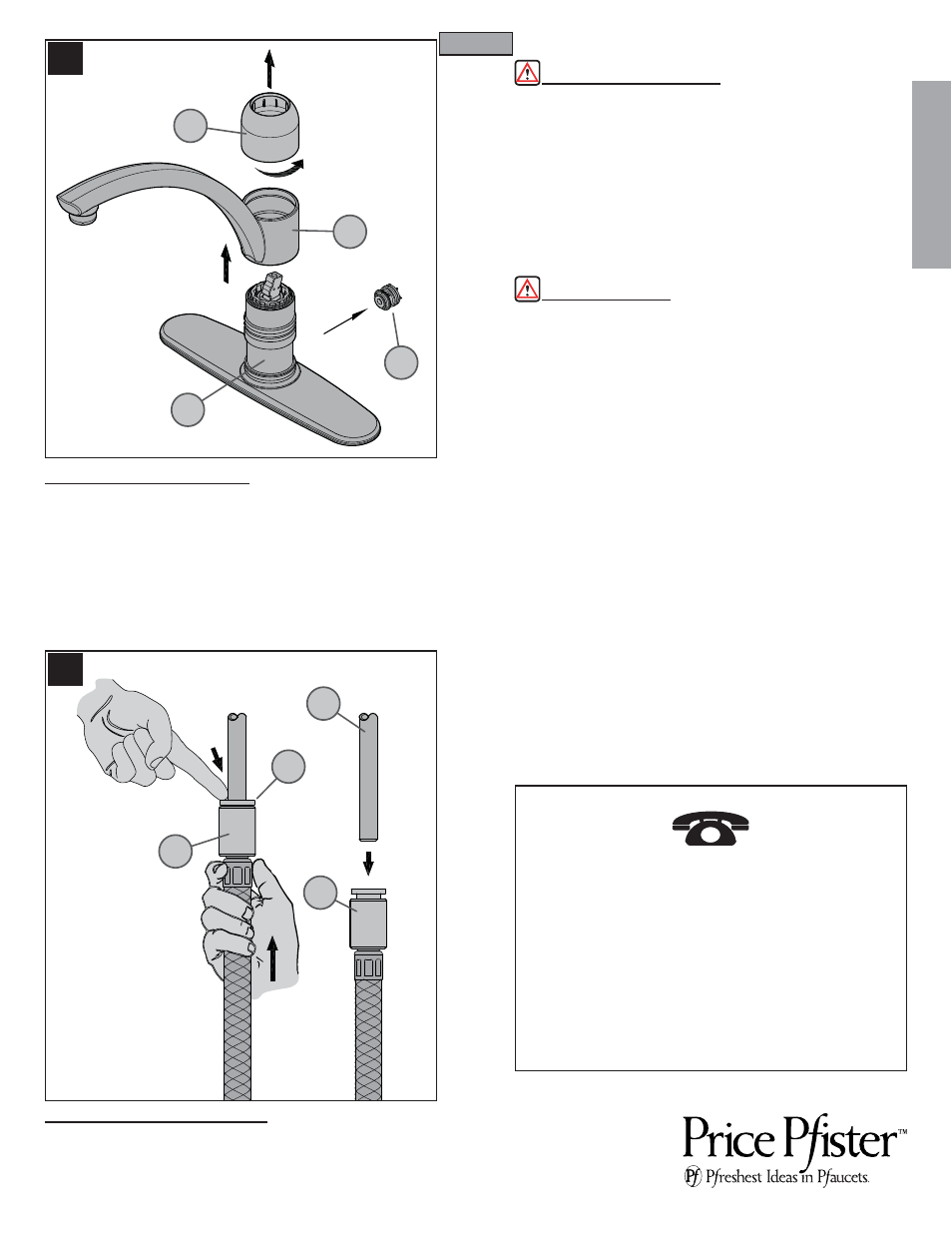

24 DIVERTER REPLACEMENT
(For products with side spray). If the side spray fails to work properly the
diverter mechanism may be clogged with debris or may need replacing. To
check and/or replace Diverter (24A), shut off water supply and relieve
pressure before working on your faucet (see step 2). Remove handle (see
step 22) and Dome Cap (24B) and carefully lift up the Spout Assembly (24C).
The Diverter Mechanism (24A) is located on the backside of Inner Faucet
Body (24D). Carefully remove the Diverter Mechanism (24A) and check for
debris. Clean or replace the Diverter Mechanism (24A). Reassemble faucet
by reversing steps.
25 SIDE SPRAY HOSE REMOVAL
Turn off water supplies and relieve pressure before working on your faucet.
To remove the quick connect attachment: Push up on the Quick Connect Housing
(25A). Holding grey Plastic Colette (25B) in place, pull downward on Quick
Connect Housing (25A) until Tube (25C) is free.
CAUTION: Maintenance
DISASSEMBLY
1. Replacement parts may be available at the store where you purchased
your faucet.
2. When replacement parts are not available, please write or call Price
Pfi ster Consumer Service.
3. Always turn off water and relieve pressure before working on your
faucet.
NOTE: Trim Care
Cleaning Instructions:
For all Handles and decorative fi nishes, use only a soft damp
cloth to clean and shine. Use of polish, detergents, abrasive
cleaners, organic solvents or acid may cause damage. Use of
other than a soft damp cloth will nullify our warranty!
Special Trim:
Trim products which contain Porcelain or other similar
substance are not acceptable for public areas or Commercial
use. Installation of Said Trim is at Users Risk!
